LED Wall Wash
ORDERCODE 41210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Wall Wash and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC LED Wall Wash

Summary of Contents for SHOWTEC LED Wall Wash

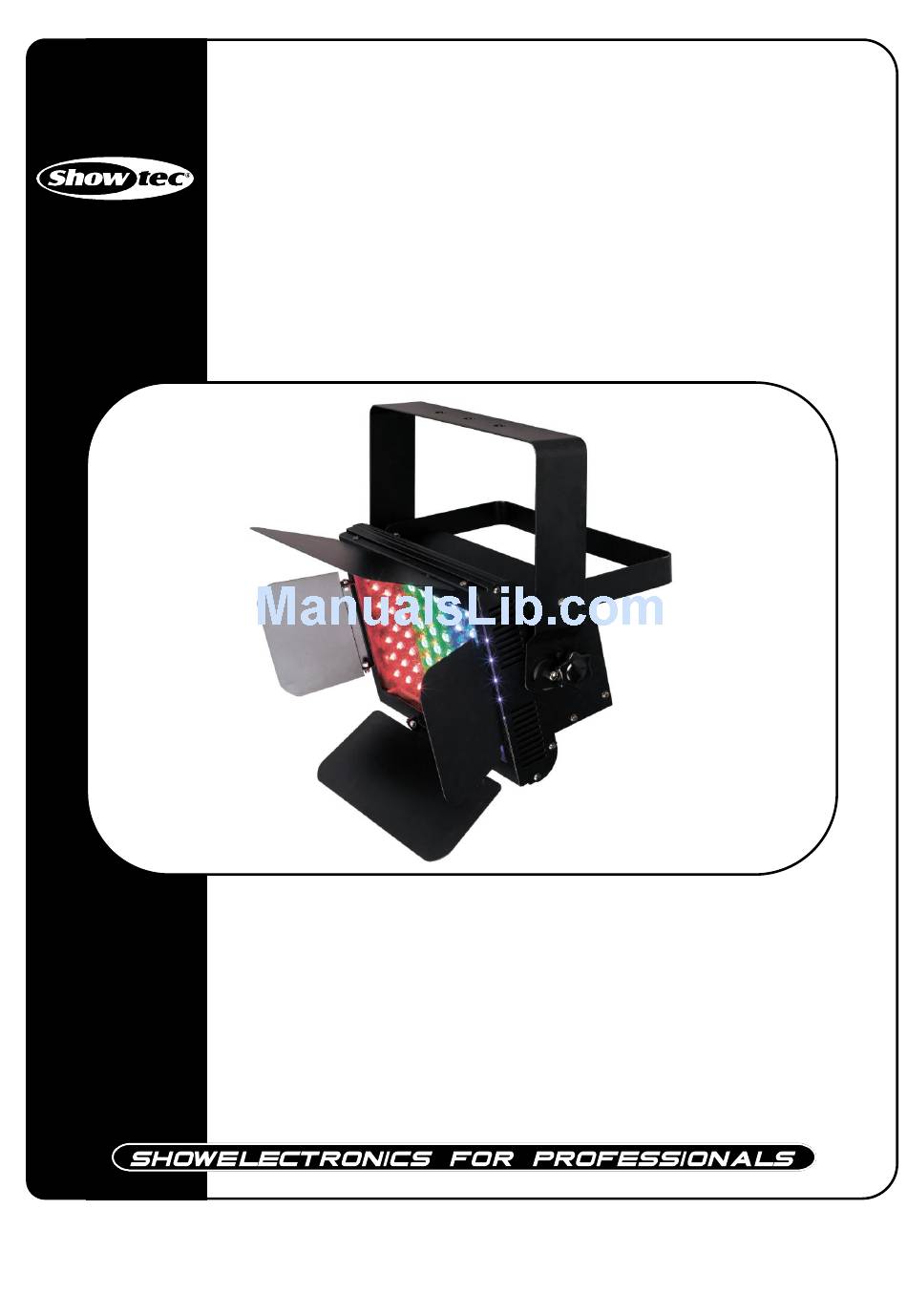

  • Page 1 LED Wall Wash ORDERCODE 41210...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec LED Wall Wash Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions…………………………………………………………………………………………………………. Operating Determinations.……………………………………………………………………………………………… Rigging.……………………………………………………………………………………………………………………… Description................…...………………………………………….………..…. Features…….……………………………………………………………………………………….…………………..… Overview……………………………………………………………………………………………………………………. Backside…………………………………………………………………………………………………………………….. Installation................…...…………………………………….………………… Set Up and Operation..............……..……………………………………………… LED Wall Wash.................…………………………………………… Multiple LED Wall Washes……................……………………………………. DMX-Protocol…...........…………………………………………………………………….…… Control Modes........………………………………………………………………………………. Stand – alone mode......…………………………………………………………………………. Sound-Control mode......…………………………………………………………………………. mode..........…………………………………………………………………………. Control Panel….....……........………………………………………………….………………...

  • Page 4: Warning

    If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Wall Wash is lowered from the ceiling or high joists, professional trussing systems have to be used. The LED Wall Wash must never be fixed swinging freely in the room.

  • Page 6: Features

    Description of the device Features LED Wall Wash is a LED system from Showtec. • 63 High power LEDs (21 Red, 21 Green, 21 Blue) • DMX-controlled •LED system: 1 Watt power LED •Beam angle: 25x10° •Usermode: Standalone, Music activated, DMX-512 •...

  • Page 7: Backside

    Backside Fig. 3 8) Mode Button Up Button 10) Down Button 11)) LCD Display Installation Remove all packing materials from the LED Wall Wash. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 8: One Led Wall Wash

    1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the LED Wall Wash is not connected by a DMX-cable, it functions as a stand-alone device. See page 7 for stand-alone modes.

  • Page 9: 2. Sound Control Mode

    When the LED Wall Wash is not connected by a DMX-cable, it functions as a stand-alone device. By holding down the Mode Button you can switch to Audio, the LED Wall Wash will automatically change its color to the beat of the music. With the Audio Sensitivity control you can adjust its music-sensitivity.

  • Page 10: Dmx Mode

    3. DMX Mode When the LED Wall Wash is connected by a DMX-cable, it functions as a DMX device. You can change the DMX address from 1-511. There are 3 different DMX Modi: RGB&B&F Mode In RGB&B&F Mode, the device has 5 channels: 1.

  • Page 11: Control Panel

    DMX address the next time.) DMX Addressing The control panel on the front side of the LED Wall Wash allows you to assign the DMX fixture address, which is the first channel from which the LED Wall Wash will respond to the controller.

  • Page 12: Dmx Channels

    DMX-Channels RGB&D Mode Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 4 – Dimmer intensity 0-255 From black to brightest Channel 5 –...

  • Page 13: Maintenance

    4. The electric power supply cables must not show any damages or material fatigue. The LED Wall Wash requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

  • Page 14: Troubleshooting

    3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Wall Wash, as this may damage the unit and the warranty will become void.

  • Page 15: Product Specifications

    Product Specification Model: Showtec LED Wall Wash Voltage : AC 90-264V 50/60Hz (CE) Power: 70W LED system: 1 Watt power LED LED/unit: 21 red, 21 green, 21 blue Beam angle: 25x10° Usermode: Standalone, Music activated, DMX-512 DMX-512: 5 channels Dimmer: 0-100%...
