Summary of Contents for SHOWTEC White-PIX V1

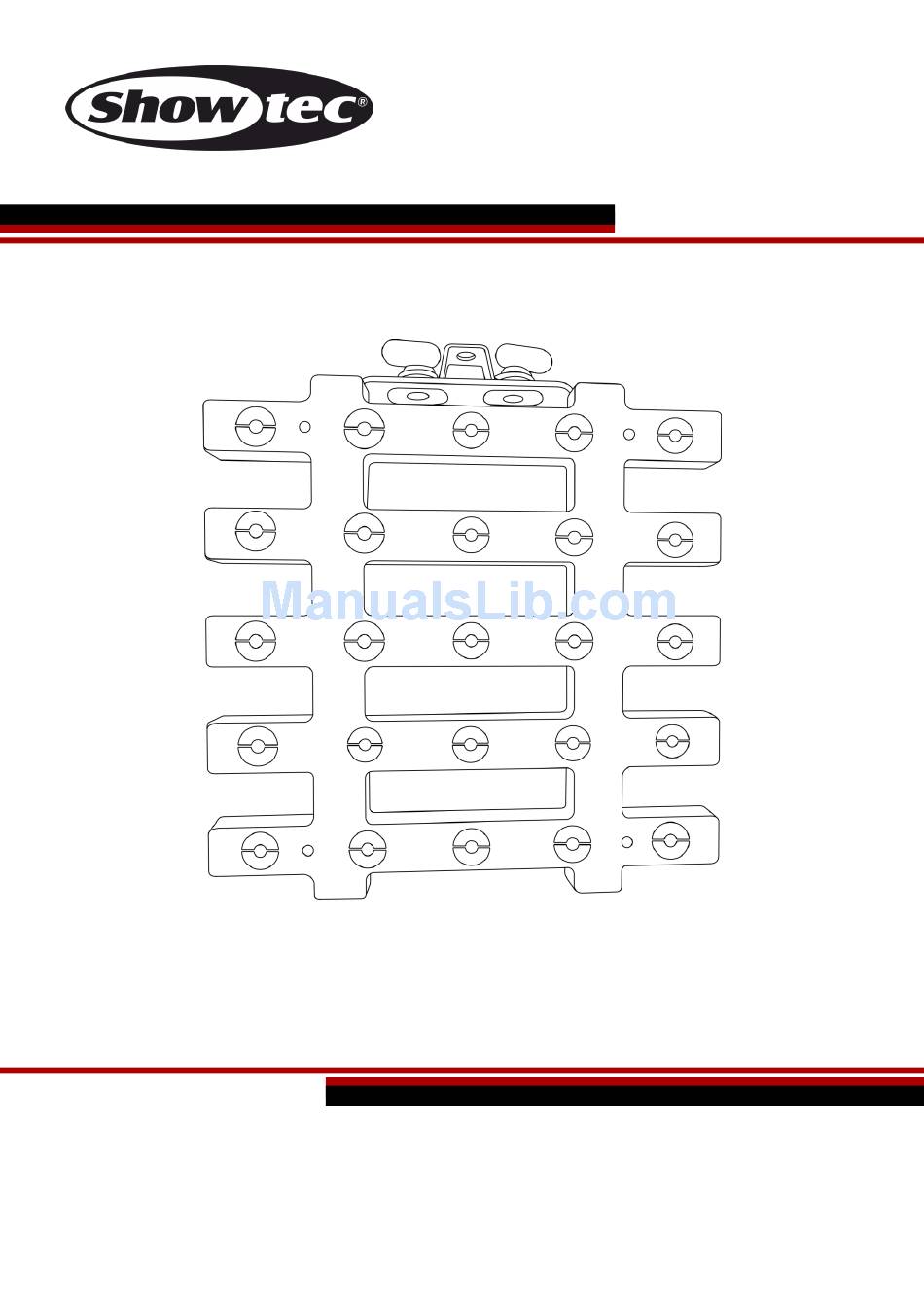

- Page 1 MANUAL ENGLISH White-PIX Ordercode: 42278 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
White-PIX Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside..................................7 Backside ..................................8 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec White-PIX Blue/White power cable (1,5 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
White-PIX Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Connection With The Mains
White-PIX Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN... -
Page 7: Return Procedure
White-PIX Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
White-PIX Description of the device Features The White-PIX is a LED panel with pixel control. It supports the most popular control protocols, such as: DMX, ArtNet and KlingNet. Power Supply: 100-240 VAC, 60/50Hz Power Consumption: 80W Light Source: 25 x 3W Edison White LED ... -
Page 9: Backside
White-PIX Backside Fig. 02 02) Mounting bracket with inclination screw 03) Mounting rail with mounting screw 04) Adjustment screw 05) Blue/White power connector 100-240V OUT 06) 3-pin DMX signal connector OUT 07) RJ45 ArtNet/KlingNet signal connectors IN/OUT 08) 3-pin DMX signal connector IN 09) Fuse F5AL/250V 10) Blue/White power connector 100-240V IN 11) LCD display + menu buttons... -
Page 10: Set Up And Operation
White-PIX Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply. -
Page 11: Control Modes
White-PIX Control Modes There are 3 modes: • Auto Mode • Master/Slave • DMX-512 (6CH and 25CH)/ArtNet/KlingNet One PIX device (Auto Mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Multiple Pix Devices (Dmx Control)
White-PIX Multiple PIX devices (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the PIX and other devices. 04) Link the units as shown in fig. -
Page 13: Multiple Pix Devices (Artnet/Klingnet Control)
White-PIX Multiple PIX devices (ArtNet/KlingNet Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a CAT-5/CAT-6 cable to connect the White-PIX and other KlingNet devices. 04) Link the units as shown in fig. -
Page 14: Fixture Linking
White-PIX Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
White-PIX The White-PIX can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MENU button C) ENTER button D) UP button DOWN button Fig. 07 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. -
Page 16: Menu Overview
White-PIX Menu Overview Main Menu Options Auto Mode DMX channels DMX address Software information Network settings Master/Slave Mode Ordercode: 42278... -
Page 17: Auto Mode
White-PIX 1. Auto Mode With this menu, you can set the built-in programs. 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the following 2 options: Program speed Program choice 04) When the display shows... -
Page 18: Software Information
White-PIX 4. Software Information With this menu, you can check the currently installed software version. 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) The display shows the current software version: 5. -
Page 19: Dmx Channels
White-PIX DMX Channels 6 channels Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Strobe Dimmer must be open 0-255 Strobe frequency, from low to high frequency Channel 3 – LED intensity Dimmer must be open 0-255 Gradual adjustment LED, from 0-100% Channel 4 –... -
Page 20: Channels
White-PIX 25 channels Channel 1 – LED 1 0-255 Gradual adjustment LED, from 0-100% Channel 2 – LED 2 0-255 Gradual adjustment LED, from 0-100% Channel 3 – LED 3 0-255 Gradual adjustment LED, from 0-100% Channel 4 – LED 4 0-255 Gradual adjustment LED, from 0-100% Channel 5 –... -
Page 21: Connecting To A Network
White-PIX Connecting to a Network KlingNet settings 01) Install any KlingNet-based software on your PC (Windows or Mac), for example 50180 – Arkaos LED Master. 02) Connect the power supply to the White-PIX. 03) Make sure that your PC has a fixed IP Address. The White-PIX requires no further network setting adjustments. -
Page 22: How To Make A Data Cable
White-PIX How to make a data cable A Standard ETHERNET Cable can be used to replace the Data Cable required to transmit the data for the White-PIX. Please follow the instructions below in order to create an extra Net Cable. Take a standard net cable (CAT-5/ 5E /6) and connect it to the RJ45 connector, as shown in the picture below (fig. -
Page 23: Maintenance
Suspect three potential problem areas as: the power supply, the LEDs and the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the White-PIX to your Showtec dealer. 03) The fuse. Replace the fuse. See page 22 for replacing the fuse. -
Page 24: No Response To Dmx
White-PIX No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 25: Product Specifications
White-PIX Product Specifications Model: Showtec White-PIX Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 80W (full output) DMX linking: 30pcs Fuse: F5AL/250V Dimensions: 300 x 90 x 345 mm (LxWxH) Weight: 4 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) -
Page 26: Dimensions
White-PIX Dimensions Ordercode: 42278... -
Page 27: Notes
White-PIX Notes Ordercode: 42278... - Page 28 ©2015 Showtec...
