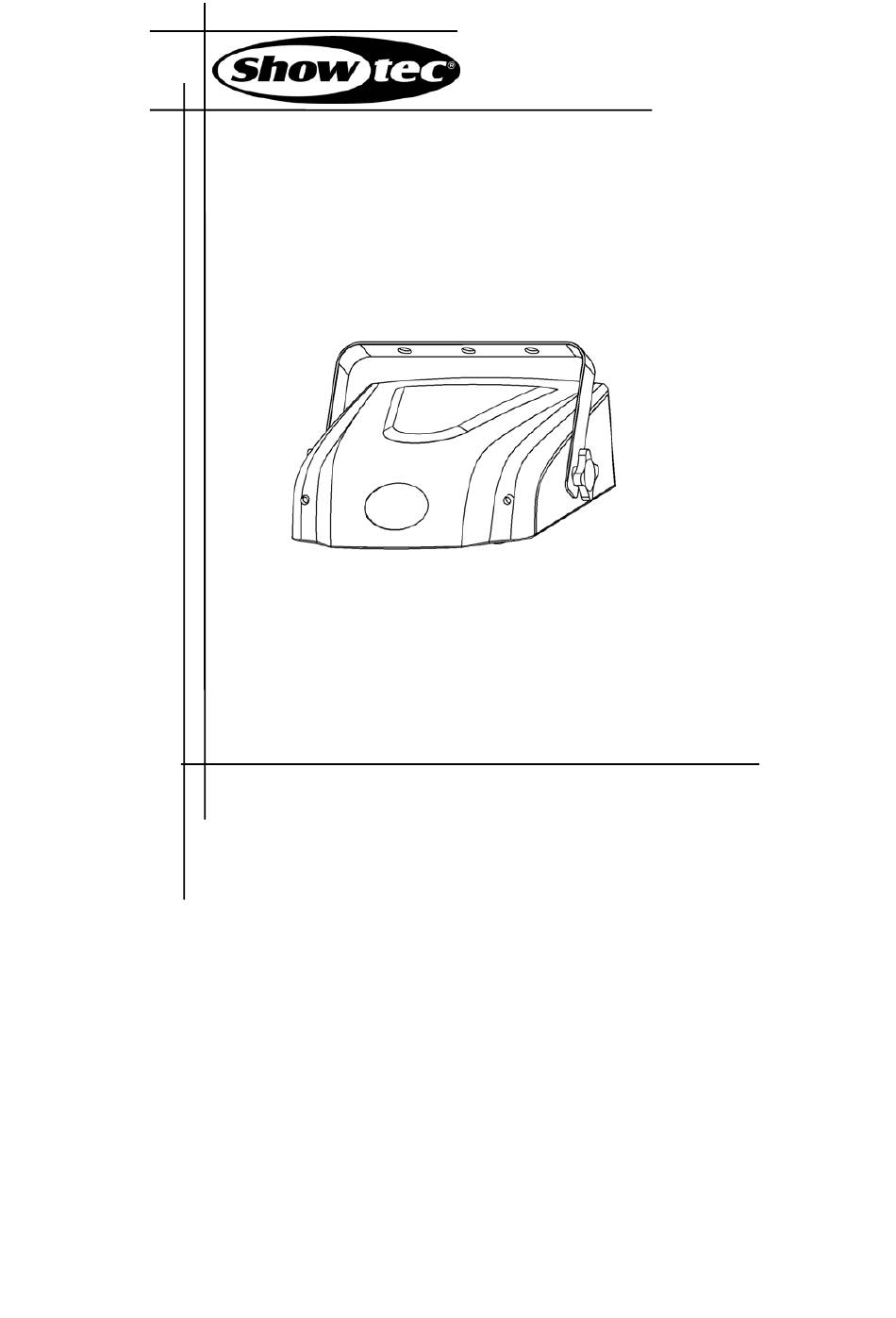

Galactic G30 30mW Green laser
Version: 2.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for SHOWTEC Galactic G30 30mW
Summary of Contents for SHOWTEC Galactic G30 30mW
- Page 1 Galactic G30 30mW Green laser Version: 2.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking...
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these instructions carefully, which includes important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light. - Page 4 USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source.
-
Page 5: Laser Exposure Warning
USER MANUAL Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous. Never point a laser at aircraft, this is a federal offense Never point un-terminated laser beams into the sky Do not expose the output optic (aperture) to cleaning chemicals Do not use laser if the laser appears to be emitting only one or two beams Do not use laser if housing is damaged or open, or if optics appear damaged... -
Page 6: Laser Emission Data
USER MANUAL LASER SAFETY LABEL REPRODUCTIONS Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. The label indicates the laser beam output aperture. LASER EMISSION DATA Laser Classification Class 3B Green Laser Medium DPSS Nd:YVO4, 532nm... -
Page 7: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 8 USER MANUAL The electric connection, repairs and servicing must be carried out by a qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 9: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 10: Dmx-512 Connection Between Fixtures
USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green... - Page 11 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
-
Page 12: Proper Laser Set Up & Usage
USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. - Page 13 USER MANUAL The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g.
-
Page 14: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. -
Page 15: Rear Panel
USER MANUAL Rear Panel NAME DESCRIPTION Power Switch Switch ON and OFF the fixture Main Power Input With IEC socket and integrated fuse holder. Microphone To detect the music/sound signal Mic Sensitivity Turn the knob (potentiometer) until the laser works in Knob sync with the music. -
Page 16: Control & Function
USER MANUAL IMPORTANT For your own safely and full laser safety regulation, we do strongly recommend you to take this optional switch! CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Do not switch the unit on and off in short time intervals Always unplug the unit when it is not used for a longer time. - Page 17 USER MANUAL Do not switch the unit on and off in short time intervals as this reduces the lamp life. Always unplug the unit when it is not used for a longer time. Or before replacing the bulb or star servicing. In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
- Page 18 USER MANUAL SLAVE Mode Press “FUNC” button till to the “SLA” letter is shown on LED DISPLAY. Press “ENTER” to select this “SLA” mode. When “SLA” mode is selected, the laser is operating in SLAVE MODE. Connect the SLAVE MODE laser to MASTER MODE laser (either Auto or Music mode) with standard DMX512 cable, the SLAVE MODE laser is running laser show exactly as the MASTER MODE laser does.
- Page 19 USER MANUAL DMX512 CONTROL Mode Press “FUNC” button till to the DMX address is shown on LED DISPLAY. Press “UP” or “DOWN” to set the DMX address Press “ENTER” to select DMX CONTROL MODE and confirm the DMX address. ！ ： CAUTION In case of DMX cable disconnecting or no DMX signal is detected, the DMX address on LED DISPLAY keeps...
-
Page 20: Dmx Protocol
USER MANUAL DMX PROTOCOL 通道 DMX512 值 控制内容 Laser Block Out 000-063 064-127 Music Control Stand Alone Mode 128-191 Auto Running Stand Alone Mode 192-255 DMX Mode 000-063 Pattern Group 1 LINE 064-127 Pattern Group 2 TUNNEL 128-191 Pattern Group 3 CURVE 192-255 Pattern Group 4... - Page 21 USER MANUAL PATTERN LIST IN CHANNEL 3 Group 1 Group 2 Group 3 Group 4 000-031 032-063 064-095 096-127 128-159 160-191 192-133 233-255...
-
Page 22: Maintenance
USER MANUAL MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the fixture, unplug the mains cable and wait until the unit has been cooled down. Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected... - Page 23 USER MANUAL The fixture is power on, but no laser coming out from aperture. Check the laser aperture cover. Check the key switch. Check the remote interlock or interlock connector. Wait for at least 30 minutes to warm up in low temperature. Check whether it is in music mode without sound signal.
-
Page 24: Specifications
USER MANUAL SPECIFICATIONS Mains Input: AC100-240V, 50/60Hz Fuse: 250V 1.6A Slow Blow (20mm Glass) Total Power: Music Control: Internal microphone Laser Power: 30mW 532nm Green CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃ DMX Connections: 3 pins XLR Male/Female DMX Channels 8 channels...
