Step 3.
PoE Connection

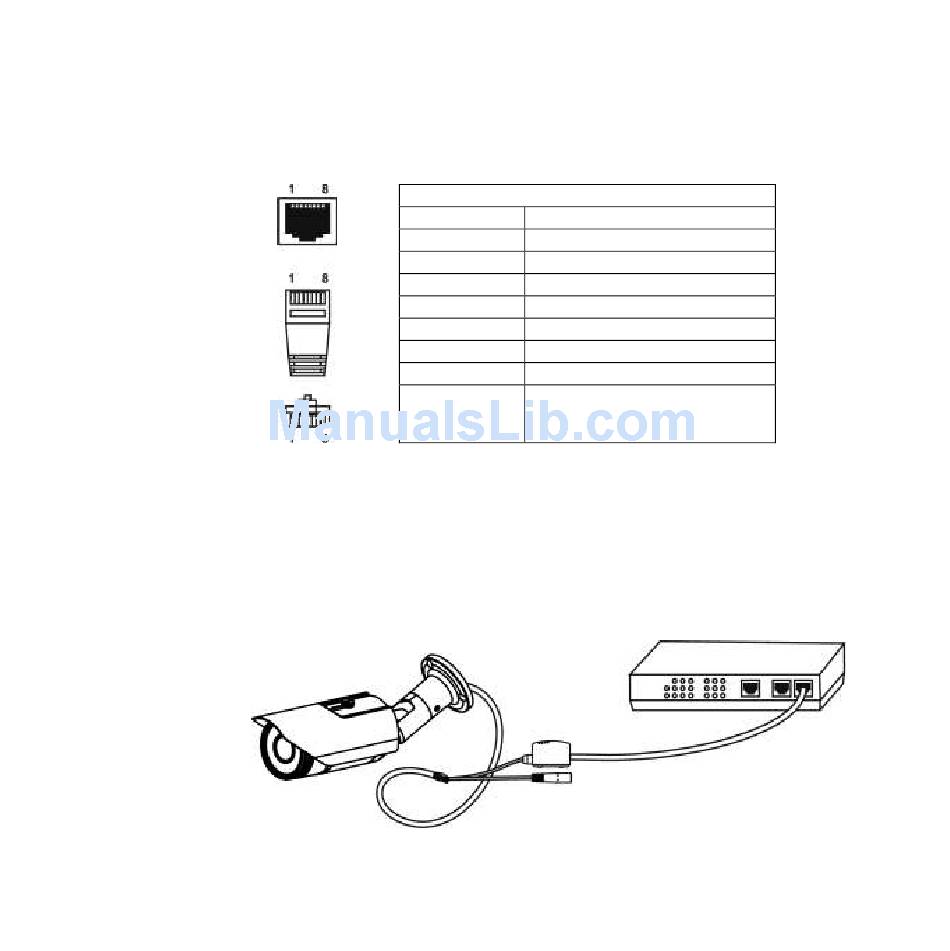

For the Power over Ethernet connection, construct the PoE cable using the pin definitions of
the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof
Connector. Once the PoE cable has been constructed using the waterproof connector, pass
the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.
4.1
Camera Connection
The Bullet Series is DC12V and PoE compliant, so there are two options for connecting the camera to
a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a
non-PoE switch.
a. If using a PoE-enabled switch:
i. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
RJ45 Connector
Pin No.
Function
Pin 1
Transmit Out+ (Tx+)
Pin 2
Transmit Out- (Tx-)
Pin 3
Receive In+ (Rx+)
Pin 4
DC 48V
Pin 5
DC 48V
Pin 6
Receive In- (Rx-)
Pin 7
48V_GND
Pin 8
48V_GND
3
