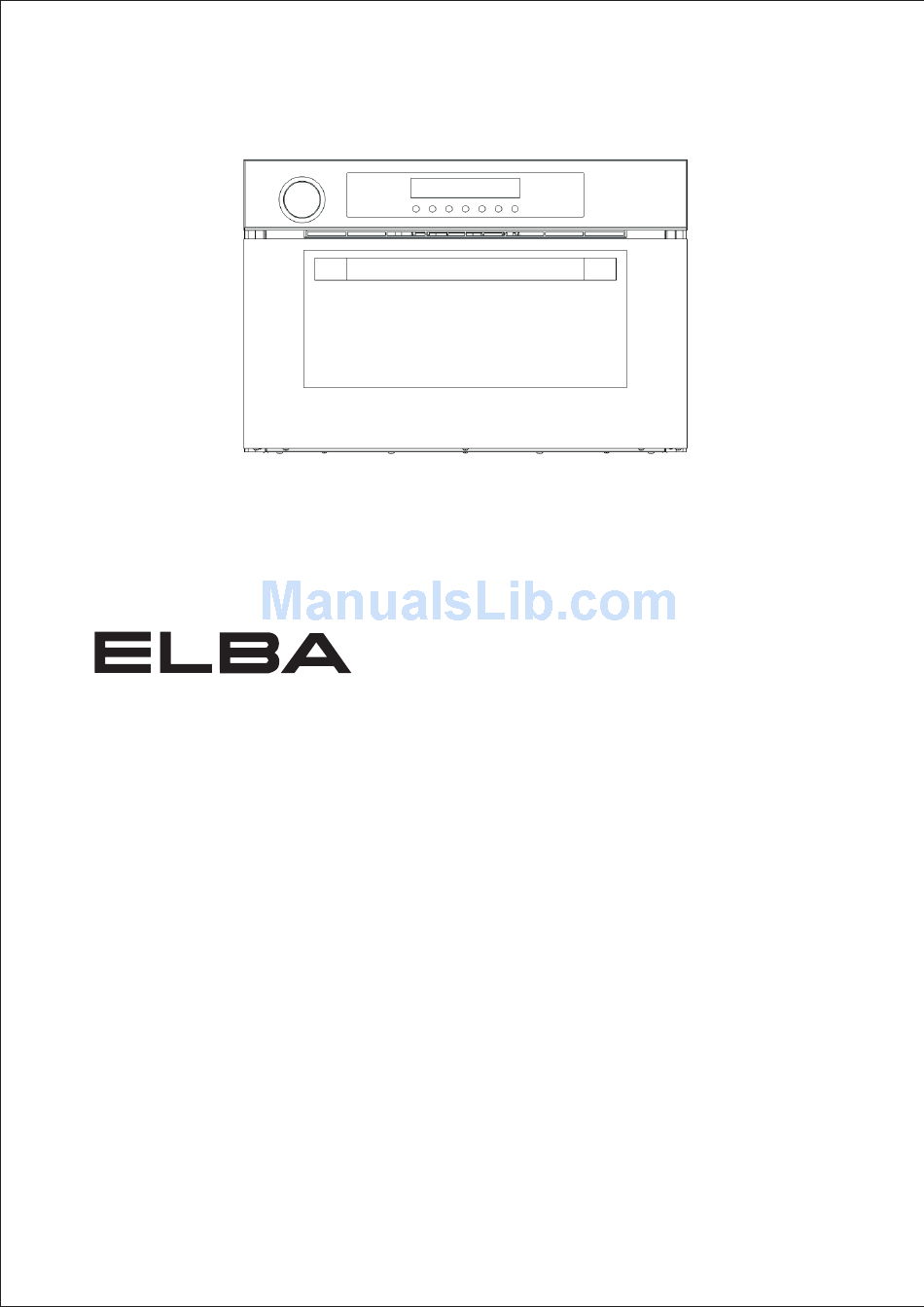

BUILT-IN STEAM OVEN
MODEL:
ESO-2633BI
ESO-D2634G(SS)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set
and quote this information to your
dealer when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading

Related Manuals for Elba ESO-2633BI

Summary of Contents for Elba ESO-2633BI

  • Page 1 BUILT-IN STEAM OVEN MODEL: ESO-2633BI ESO-D2634G(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    INTRODUCTION Dear customer: Thank you for choosing our product. Please read this user manual carefully before installing and operating the appliance. Herein, you will find the correct method of installation, and tips for the best use and maintenance of the product. CONTENTS Safety Precautions Accessories...

  • Page 3: Safety Precautions

    Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1.Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2.To protect against the risk of electrical shock, do not immerse the product, power cord or plug into water or any other liquid.

  • Page 4: Accessories

    ACCESSORIES Drip Tray Steam Tray Bottom Rack Adjustable Rack Left/Right Side Rack TECHNICAL PARAMETERS Model No. ESO-2633BI / ESO-D2634G(SS) Voltage/Frequency 220V-240V/50Hz Rated Power 1800W Oven Capacity Product Dimension 597 x 395 x 460mm (W x H x D) Built-In Dimension...

  • Page 5: Instruction For Installation

    INSTRUCTION FOR INSTALLATION 1.Warnings for power connection: -The appliance must be connected in accordance with local electrical regulations. -The installation must to be carried out only by authorized technician. -THIS APPLIANCE MUST BE EARTHED. -Main connection can also be made by fitting a single phase 15 amp earthed switch with a minimum gap between the contacts of 3mm.
  • Page 6 -The steam oven needs a supporting surface underneath. The sides and the front panel where the steam oven is to be installed should be in level. -Ensure the steam oven is secured firmly in place as described above, and insulate electrical connections in order to avoid contact with metallic parts.

  • Page 7: Instruction For Control Panel

    INSTRUCTION FOR CONTROL PANEL Control panel instructions Temperature display Time display Temperature icon Delay start indicator Water shortage alert Working indicator light Set cooking duration Water tank full START TIME STOP Time setting Power Start/Pause Reduce cooking time Increase the set temperature Increase cooking time Reduce the set temperature Water filling point...

  • Page 8: Water Shortage Alert

    STEP 3: Set the Temperature STEP 4: Start Working After set the cooking duration and temperature, Press buttons below the temperature press button, the light will change from RED START display to set the correct cooking temperature. STOP color to BLUE color and the steam oven start (can be set from 50℃...

  • Page 9: Recommended Cooking Time

    RECOMMENDED COOKING TIME Food Temperature（℃） Cooking Time* (minutes） Vegetables Broccoli（small size） Cauliflower 12-14 Green Soya Bean 8-10 Peas Potato（peeled & cut in half） 20-25 Potato(with skin) 30-35 Carrot (in pieces) Asparagus 10-14 Meat & Sausage Chicken(1kg) 20-30 Chicken in pieces Sausage Minced meat Fish...

  • Page 10: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Water Tank Before using the steam oven for the first time, we suggest to flush the built in water tank 3 times. Connect the appliance to electrical main and turn on the power. Push to access to the water filling point and add water.
  • Page 11 Warning: Do not use harsh chemicals or harsh cleaning agents or use any abrasive material around this area. Doing so may remove these indicator markings which will not be covered by warranty. Use appropriate glass cleanser to clean the glass on the steam oven door. Heating Element The heating element may have a build up of scale after a period of time, use hot water with 5% citric acid cleanser to remove the scale from the heating element.

  • Page 12: Troubleshooting

    TROUBLESHOOTING NOTE: The maintenance and service must be carried by qualified service person. The manufacturer is not liable for any direct or indirect damage caused by unqualified service person or installer. 1.The steam oven will not function: -Turn the steam oven off and remove the plug from the power supply. -Check if the fuse has blown and replace the blown fuse.
