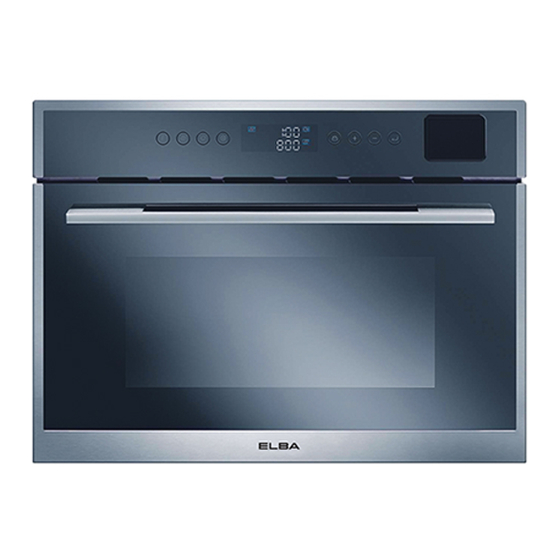

Elba ESMO-C3582ST Owner's Manual

45cm built-in compact oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

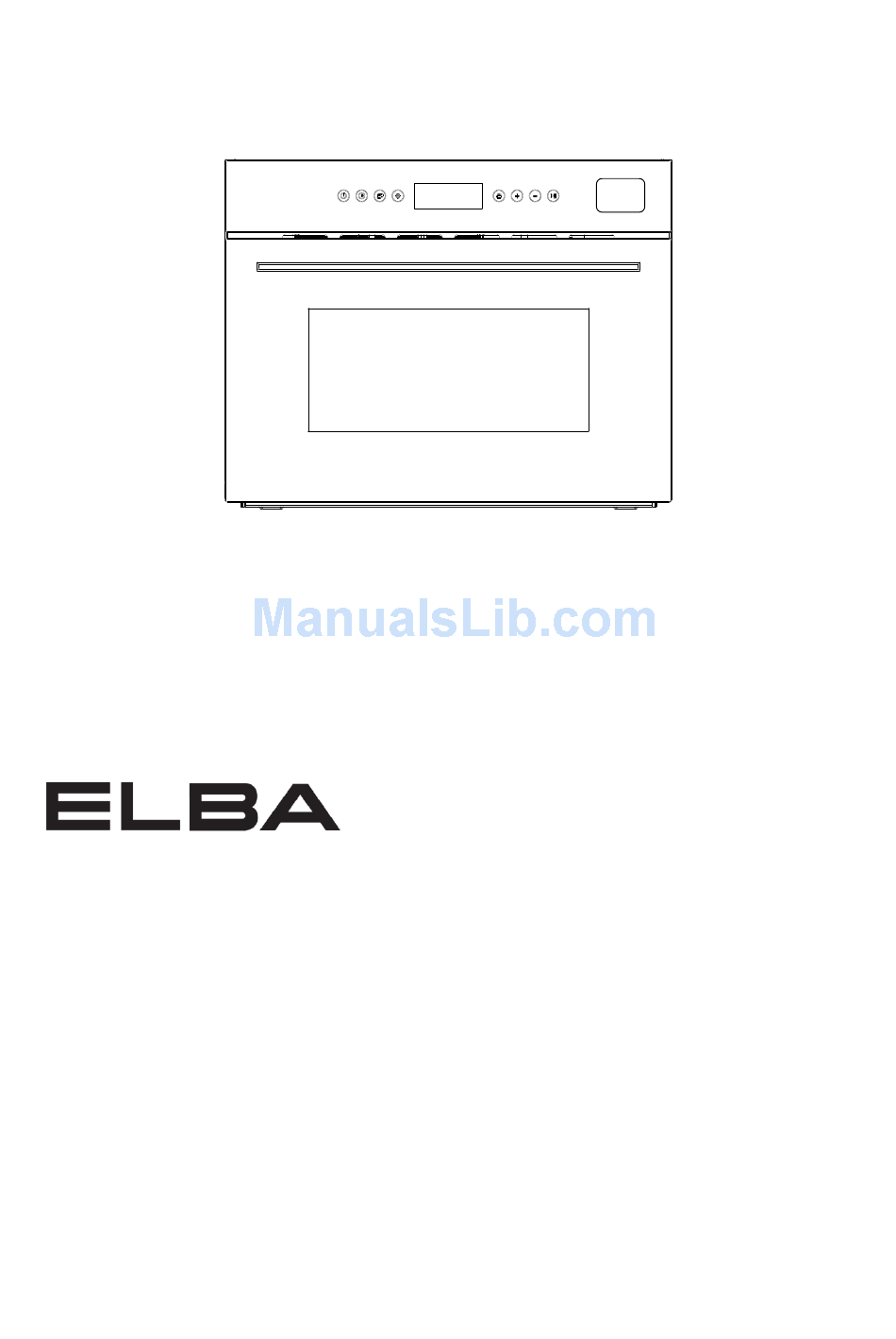

45CM BUILT-IN COMPACT OVEN
MODEL: ESMO-C3582ST(SS)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESMO-C3582ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba ESMO-C3582ST

Summary of Contents for Elba ESMO-C3582ST

  • Page 1 45CM BUILT-IN COMPACT OVEN MODEL: ESMO-C3582ST(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: To Excessive Microwave Energy

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY READ these instructions carefully before installing and operating the oven. Keep them for further reference. Do not attempt to operate this oven with the door opening since open door operation can result in harmful exposure to microwave energy. It is important not to modify or tamper the safety interlocks of the oven door.

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS …………..…………………………………………………………………………………………….5 ATTENTIONS ………………………………………………………………………………………………………………………………6 INSTALLATION …………………..…………………………………………………………………………………………….6 BEFORE THE INSTALLATION………………………………………………………………………………………….……………6 INSTALLATION OF BUILT-IN COMPACT OVEN…………………………………………………………………………7 CONNECTION OF THE APPLIANCE …………………………………………………………………………………….……9 FITTING ON A POWER SUPPLY CABLE…………………………………………………………………..……………………9 CONNECTING THE SUPPLY CABLE TO THE MAINS………………………………………………………………………9 HOW TO USE YOUR OVEN …………………………………………………………………………………….……………….10 PRODUCT DESCRIPTION …………………………………………………..…………………………………………………….10 DESCRIPTION OF FRONT PANEL CONTROLS...
  • Page 4 RECOMMENDED COOKING MENU ……………………………………………………………………………………….17 COOKING WITH MICROWAVE………………………………………………………………………….………………………17 DEFROSTING WITH MICROWAVE…………………………………………………………………….………………………19 COOKING WITH GRILL………………………….………………………………………………………….………………………20 WHAT KIND OF OVENWARE CAN BE USED…….…….………………………………………….………………………21 CLEANING AND MAINTENANCE………… …………………………………………………………………………….21 10.1 CLEANING THE OVEN CAVITY………………………….…..…………………………………………………….……………21 10.2 CLEANING THE CAVITY CEILING….……….…………………………………………………………………….……………22 10.3 RINSE OF DOOR SEAL AND FRONT PANEL….……………………………………………………………….……………22 10.4 CLEANING THE ACCESSORIES….…………………………………..…………………………………………….……………22 REPLACING THE OVEN LAMP ……………….…………………………………………………………………………….22...

  • Page 5: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. 1.

  • Page 6: Attentions

    In order to avoid electric shock, please make sure the oven has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of body to touch the oven.

  • Page 7: Installation Of Built-In Compact Oven

    3.2 Installation of Built-in Compact Oven The material of the cabinet should be insulated, and the clearance between the edge of the cabinet and the oven should be over 100mm for ventilation.
  • Page 8 In order to fix the oven with cabinet, please open the oven door and insert four wood screws into the four holes around frame and fix them. Note: Please do not use the handle to carry or move the oven during installation or handling.

  • Page 9: Connection Of The Appliance

    4. CONNECTION OF THE APPLIANCE 4.1 Fitting on a Power Supply Cable The appliance has to be equipped with a three-core power supply cable which is designed to operate with an alternating current. The AC power supply should be supplied with 220-240V, 50/60Hz and a minimum 16A distribution circuit fuse or at least 16A distribution circuit breaker.

  • Page 10: How To Use Your Oven

    5. HOW TO USE YOUR OVEN  When the oven is used for the first time, it should be heated to the maximum temperature long enough to burn off any oily residues left during the manufacturing process, which might contaminate foods with unpleasant smells. ...

  • Page 11: Description Of Front Panel Controls

    7. DESCRIPTION OF FRONT PANEL CONTROLS Standby Function (Microwave, Grill, Defrost) Cooking Time Setting (Cooking Time, Delay Start Timer) Other Setting (Power, Weight, Choice of Defrost) Clock Setting Child Lock Increase (Function, Power, Weight Increase) Decrease (Function, Power, Weight Decrease) Start / Pause Functions Description Microwave...

  • Page 12: Programme And Functions

    8. PROGRAMME AND FUNCTIONS Current Time Setting During the first use, display screen shows a flashing “0:00”. The symbol of Cooking Time Setting “ ” will display. Press the button “ ” or “ ” to increase or decrease the hours. After setting hours press Clock Setting “...

  • Page 13: Microwave + Steam Function

    The Microwave + Grill function is ideal for fast cooking and food browning after cooking. Furthermore, you can also grill and brown cheese covered food. The microwave and the grill work simultaneously. The microwave cooks and the grill toasts. Before using a dish in the microwave oven make sure that it is suitable for microwave use.

  • Page 14: Microwave + Grill + Steam Function

    Press “ ” to start cooking, the timer will countdown and the symbol “ ” is flashing while “ ” lights up. The temperature symbol “ ” will be flashing when the oven is warming up, and it will be light on when the oven reaches the set temperature. Note: During the cooking process, the current time can be viewed by pressing “...

  • Page 15: Cleaning Function

    MENU: Type of Food Function Display Cooking Time 1pcs 430 S-01 2pcs 800 Potato 3pcs 1130 150g 230 S-02 350g 500 Vegetable 500g 700 150g 330 S-03 350g 430 Fish 500g 530 150g 800(turn over)/400 S-04 350g 1200(turn over)/600 Pork Chop 500g 1400(turn over)/700...

  • Page 16: Pause In The Process Of Cooking

    8.14 Pause In The Process Of Cooking You can stop the cooking process at any time by pressing “ ” or by opening the oven door. When the appliance stops cooking, the screen will display the remaining time of the operating time.

  • Page 17: Child Lock

    8.18 Child Lock To Lock: In standby mode press Child Lock “ ” button for 3 seconds and a "beep” will sound. The oven will enter into the child lock mode and “ ” indicator will turn on. In any case after locking, the oven cannot be operated.
  • Page 18  There might be steam on the oven glass door during cooking and may start to drip. This situation is normal and may be more noticeable if the room temperature is low. The process of cooking is not affected by this. After you have finished cooking, clean up the condensation on the glass door.

  • Page 19: Defrosting With Microwave

    Defrosting with Microwave 1. When defrosting, use only dishes that are safe for microwave oven use. 2. The defrost function by weight and the tables refer to the defrosting of raw food. 3. The defrosting time depends on the quantity and thickness of the food. 4.

  • Page 20: Cooking With Grill

    Poultry 5-10 Chicken 1000 20-24 20-30 Fish Fillet 5-10 Trout 5-10 Prawn 5-10 5-10 Fruit 5-10 11-14 10-20 5-10 Bread 10-12 10-15 15-17 10-20 Butter 8-10 10-15 Cheese 10-15 Cream 10-15 Cooking with Grill IMPORTANT: 1. There will be some smoke and smell when the grill is used for the first time. That is because of oil left from the manufacture process.

  • Page 21: What Kind Of Ovenware Can Be Used

    What kind of ovenware can be used? 9.4.1 Microwave Function For the microwave function, notice that glass, china, clay, plastic, and paper can be used as container. Metal pans, dishes or containers with metal parts or decorations cannot be used in the microwave.

  • Page 22: Cleaning The Cavity Ceiling

    10.2 Cleaning the Cavity Ceiling  If the oven ceiling is dirty, wait until the grill is cold before lowering it.  Do not use abrasive cleaning products or sharp objects.  To avoid any risk, do not remove the mica cover. 10.3 Rinse Of Door Seal And Front Panel ...

  • Page 23: Technical Specification

    12. TECHNICAL SPECIFICATION Capacity 220 – 240V Voltage Frequency 50/60Hz Circuit Breaker 1500 – 1600W Microwave Input Wave Microwave Output Power 1000W Microwave Frequency 2450MHz Grilling Power 1400 - 1650W 550 – 650W Steam Power Product Dimension (mm) 594 (W) x 455 (H) x 530 (D) Built-in Dimension (mm) 558 (W) x 448 (H) x 550 (D) Carton Dimension (mm)

This manual is also suitable for:

Esmo-c3582stss

Table of Contents
