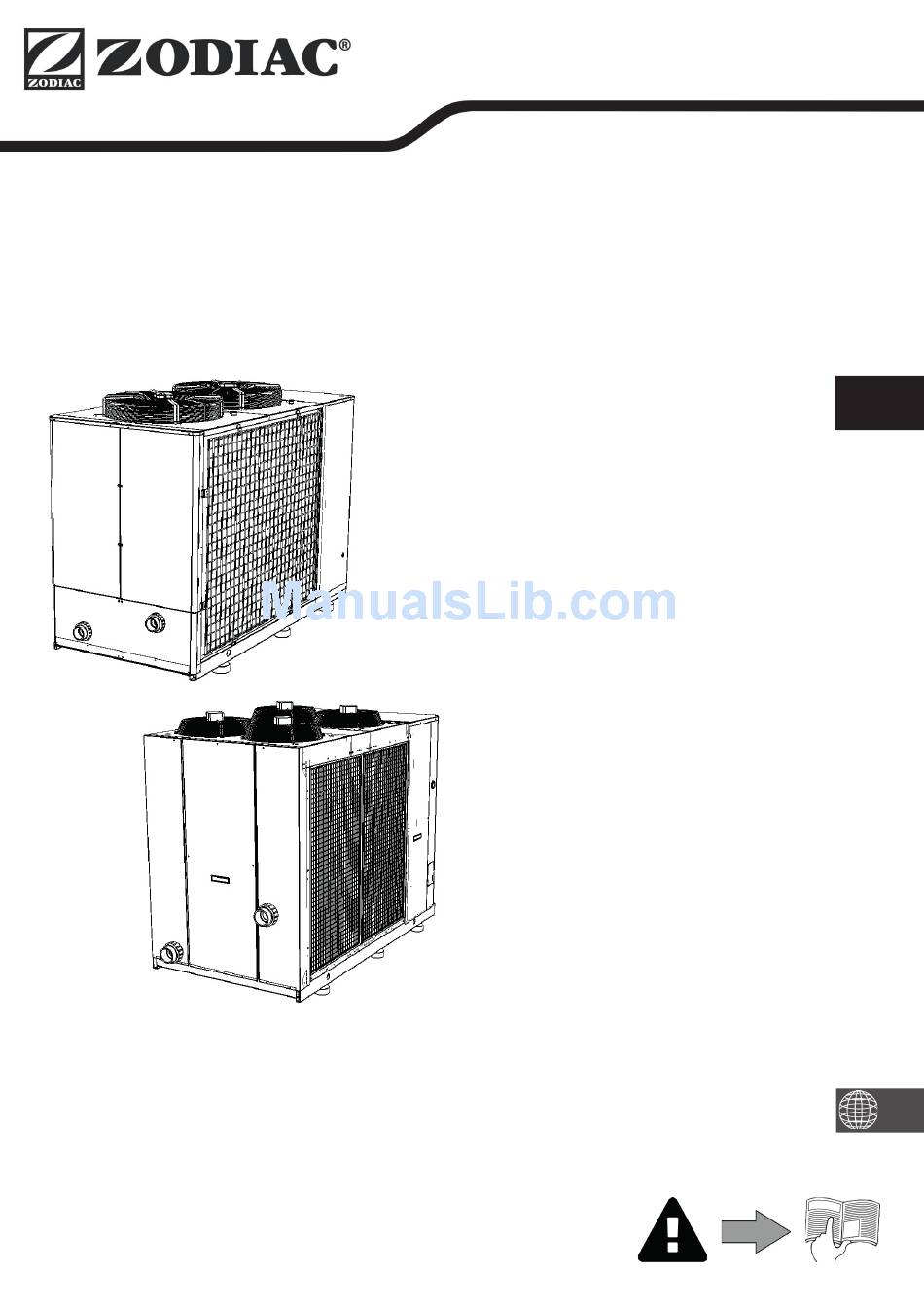

- Page 1 Z900 Instructi ons for installati on and use - English Heat pump Translati on of the original instructi ons in french More documents on: www.zodiac-poolcare.com H0590800.A - 2017/05...
- Page 3 WARNINGS • Failure to respect the warnings may cause serious damage to pool equipment or cause serious injury, even death. • The appliance is intended to be used only for swimming pools and spas; it must not be used for any purpose other than that for which it has been designed.
-
Page 4: Table Of Contents
It is prohibited to distribute or modify this document in any way without authorisati on from • Zodiac®. Zodiac® is constantly developing its products to improve their quality; therefore, the • informati on contained in this document may be modifi ed without noti ce. -
Page 5: ❶ Installati On
❶ Installati on 1.1 I Selecti ng the locati on • The device must be installed at a minimum distance from the pool's surrounding edge. This distance is determined by the electrical standards which apply in the installati on country. •... -
Page 6: I Hydraulic Connecti Ons
1.2 I Hydraulic connecti ons • The device will be connected with a Ø63 or Ø90 PVC pipe, using the connectors supplied, to the pool's fi ltrati on circuit, aft er the fi lter and before the water treatment. • Respect the directi on of hydraulic connecti on. •... -
Page 7: I Electricity Supply Connecti Ons
1.3 I Electricity supply connecti ons • Incorrectly ti ghtened terminals may cause the terminal unit to heat up and invalidate the warranty. • Before any work inside the device, you must disconnect the electricity supply to avoid the risk of electric shock which may cause material damage, serious injury or even death. -
Page 8: I Opti Onal Connecti Ons
1.4 I Opti onal connecti ons Connecti ng the "Remote on/off command" and "Alarm" opti ons: • Any access to the electrical enclosure and mains terminal area presents a risk of electrical shock which can result in electrocuti on, property damage, and serious injury, including loss of life. -
Page 9: ❷ Use
❷ Use 2.1 I Operati ng principle Your heat pump uses the calories (heat) in the air to heat up your pool's water. The process to heat your pool's water to the temperature you want may take a few days as it depends on the weather conditi ons, your heat pump's power and the diff... -
Page 10: I Operati Ng
2.3 I Operati ng • Check that there are no tools or other foreign objects in the machine. • The panel that provides access to the electrical enclosure must be properly secured in place. • Set the valves as follows: valve B wide open, valves A, C, D and E closed : water inlet valve : by-pass valve : water outlet valve... -
Page 11: I Change To Cooling Mode
2.5 I Change to cooling mode 2.5.1 Connecti on to be made to change to cooling mode The device operates either in heati ng mode or in cooling mode. By default, the heat pump is in heati ng mode; to change to cooling mode, install a shunt between terminals 19 and 30 on the terminal unit. -
Page 12: ❸ Maintenance
• Do not use a high pressure jet. Do not spray with rain water, salt water or water which is full of minerals. • Clean the outside of the device; do not use any solvent-based products. Zodiac can provide you with a specifi c cleaning kit as an opti on: the PAC NET, see §... -
Page 13: ❹ Troubleshooti Ng
❹ Troubleshooti ng • Before you contact your reseller, please carry out these few simple checks using the following tables if a problem occurs. • If the problem conti nues contact your reseller. • : Acti ons only to be carried out by a qualifi ed technician 4.1 I Device behaviour •... - Page 14 Behaviour Possible causes Soluti ons • Bleed the circuit, • No external signal • Check that the fl ow switch (terminals 16 and 30) is operati ng correctly. • Delay between two compressor starts/ • Wait 5 minutes for the ti mer to provide the stops;...
-
Page 15: I Displays
4.2 I Displays • The fault number may vary according to the number of compressor(s) in the heat pump. Display Possible causes Soluti ons Resetti ng Wait unti l the water temperature rises Water temperature too low Automati c naturally Defrosti ng in progress Wait unti l the cycle is fi... - Page 16 Display Possible causes Soluti ons Resetti ng Check that the RSF light is steady; if this Cabling not respected on the is not the case, reverse the phases on the appliance’s supply terminals power supply terminal unit (device powered down) Automati c Electricity provider has changed the order of the phases...
-
Page 17: I Wiring Diagram
4.3 I Wiring diagram High pressure switch Diff erenti al pressure switch Low pressure switch Compressor resistance Fan control Regulator Solenoid valve driver Anti -frost resistance Line fuse (not supplied) Phase order controller Isolati ng switch with fuses Ambient air sensor General switch Condensati on sensor Line switch (not supplied) -
Page 18: ❺ Characteristi Cs
❺ Characteristi cs 5.1 I Descripti on * In the technical box Z900 TD20 TD30 TD50 Ø63 connector (x2) Ø90 connector (x2) Anti -vibrati on studs (x6) Wintering cap (x2) Remote control Lift ing kit PAC NET (cleaning product) : supplied : available as accessories... -
Page 19: I Technical Specifi Cati Ons
5.2 I Technical specifi cati ons Z900 TD20 TD30 TD50 -12 to 38 °C Operati ng temperature range water 10 to 32 °C Voltage 380-415 V - 50Hz - 3-phase Acceptable variati on in voltage ± 5 % (during operati on) Polluti on class Polluti on degree Overvoltage category... -
Page 20: I Dimensions And Marking
5.3 I Dimensions and marking Fronts Z900 TD20 - TD30 : Base : Fan : Evaporator Top Z900 TD20 - TD30 : Gland Side Z900 TD20 - TD30 : Pool water inlet : Pool water outlet : Technical access door : User interface : “On/off... - Page 22 Votre revendeur Your retailer Modèle appareil Appliance model Numéro de série Serial number Trouvez plus d’informations et enregistrez votre produit sur More informations and register you product on www.zodiac-poolcare.com ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
