Summary of Contents for Zodiac Z200

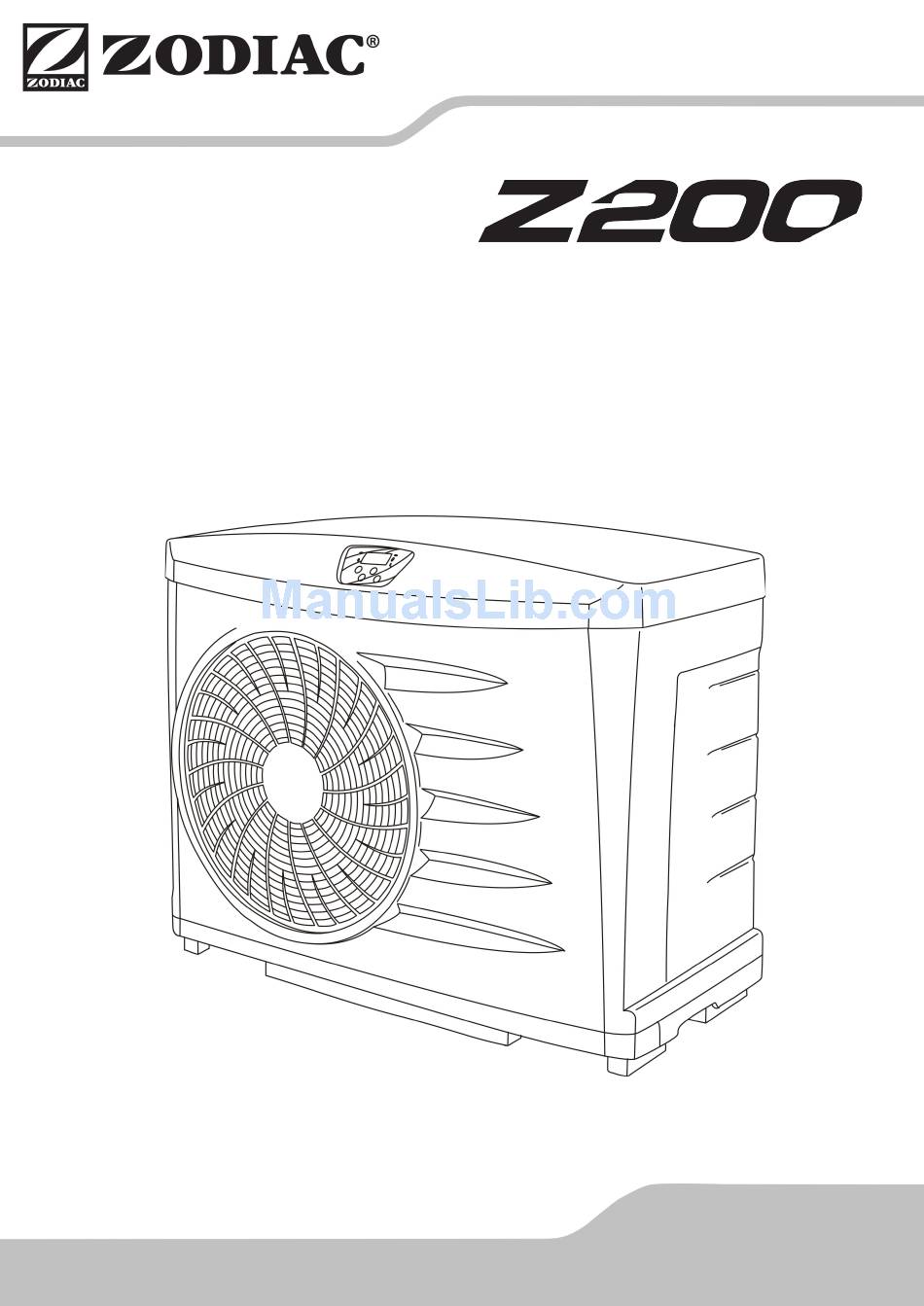

  • Page 1 Instructions for installation...
  • Page 2 • Read this notice carefully before installing, maintaining or repairing this appliance! • The symbol indicates important information that you must take into account to avoid the risk of damage to persons or the appliance. • The symbol indicates useful information as an indication. Warning •...

  • Page 3: Table Of Contents

    Contents 1. Information before installing ........................4 1.1 General delivery terms and conditions ...................... 4 1.2 Technical specifications ..........................4 2. Installation ............................... 4 2.1 Selection of the location ..........................4 2.2 Installing the appliance ..........................4 2.3 Hydraulic connections ..........................

  • Page 4: Information Before Installing

    1. Information before installing 1.1 General delivery terms and conditions Ensure the unit is delivered in an upright position and avoid tipping over. 1.2 Technical specifications Z200 Single phased voltage 230V-50Hz Input power* 1.56 Rated input intensity* 7.09 9.09 11.82 * with surrounding air temperature at 15°C and pool water at 24°C, humidity level 70%...

  • Page 5: Hydraulic Connections

    2.3 Hydraulic connections VE: water intake valve VB: by-pass valve VS: water output valve * minimum distance Z200 Test pressure Service pressure Load loss Water flow optimum m³/h minimum Water flow m³/h maximum* * rate not to be exceeded Follow the hydraulic connection direction (see §...

  • Page 6: Use

    2.4.4 Connecting options Heating priority: • Function: control system to run the filtration pump (per cycle of 5 minutes minimum every 220 minutes (modifiable, see §2.3), with the filtration running if the pool temperature is lower than the set point temperature). •...

  • Page 7: Checks To Carry Out Once The Appliance Is Running

    • Possibility of locking the keyboard: - Keyboard lock: press at the same time for 3 seconds: appears for 3 seconds, then: - Unlocking the keyboard: press at the same time for 3 seconds: flashes for 4 seconds, then: • Changing the time between 2 filtration cycles for the “heating priority” function (value in number of minutes): - press simultaneously for 3 seconds: is displayed,...

  • Page 8: Troubleshooting

    5. Troubleshooting 5.1 Displays Symbol Meaning Cause Solution Air temperature Sensor out of order or incorrectly Replace the sensor, contact your reseller or a sensor fault connected qualified technician Defrosting Sensor out of order or incorrectly Replace the sensor, contact your reseller or a sensor fault connected qualified technician...

  • Page 9: Faq

    6. Registering the product Register your product on our website: be the first to be informed of new Zodiac® products and special offers, help us to constantly improve our product quality. For Australia/NZ/Oceania - www.zodiac.com.au...
  • Page 10 Electric diagram L-N-PE Protected power supply 230V-1N-50Hz Digital display Earth Compressor capacitor Fan capacitor Flow rate controller High pressure switch Low pressure switch Fuse Compressor relay Fan relay Auxiliary pump relay Complementary relay Compressor Water temperature sensor Air temperature sensor Defrost sensor Transformer 1-2-3-4...
  • Page 11 Dimensions Z200 Weight (Kg) Description English Pool water inlet Pool water outlet Evaporator Location for drilling for priority heating cable run Location for drilling for remote control cable run...
  • Page 12 Zodiac Group Australia Pty Ltd 219 Woodpark Road Smithfield NSW 2164 Phone: 1300 763 021 www.zodiac.com.au Your retailer For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
