Titanium series heat pumps

Advertisement

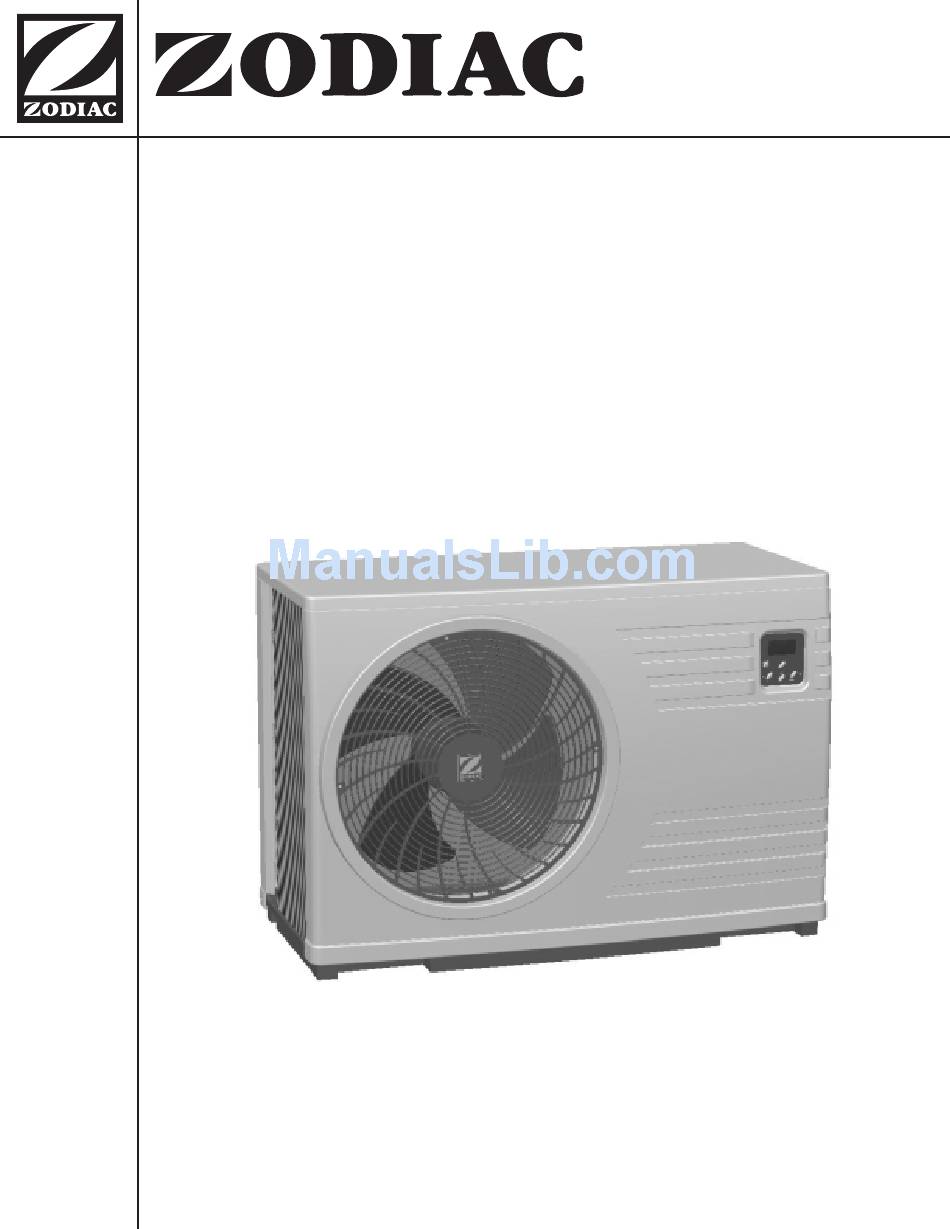

ZHP-3216-TI
ZHP-80-TI
ZHP-65-TI
TITANIUM SERIES
HEAT PUMPS
W235611 rev 2
2005/2006
USER'S MANUAL
& INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZHP-3216-TI and is the answer not in the manual?

Questions and answers

Summary of Contents for Zodiac ZHP-3216-TI

  • Page 1 ZHP-3216-TI ZHP-80-TI ZHP-65-TI TITANIUM SERIES HEAT PUMPS USER’S MANUAL W235611 rev 2 & INSTALLATION MANUAL 2005/2006...
  • Page 2 This manual will help you answer questions you may have, provide technical support, and allow you to safely enjoy your new Zodiac Heat Pump. Please take a few moments to read through the entire manual.
  • Page 3: Table Of Contents

    Winterizing (Titanium Heat Exchanger) Seasonal Start-up V Some Tips on Water Chemistry ....p.9-10 How to Adjust pH Total Alkalinity Affects pH Sanitizers VI Heat Pump Digital Control ..p.11-12-13 VII Questions and Answers......p.14 VIII Zodiac Pool Heat Pumps Exclusive Limited Warranty ....p.15-16...
  • Page 4: I Introduction

    COP factor back in total dollars worth of pool heat. As an example, the Zodiac ZHP-3216-TI with one of the higher COP’s in the industry at 6.4 yields $6.40 worth of pool heat per $1.00 invested of electricity.
  • Page 5: Selecting The Location

    Do not install the heat pump in a closed space like a garden shed, a garage or a basement. The table below indicates the minimum distance from the heat pump that any object should be located. ZHP-3216-TI, ZHP-80-TI & ZHP-65-TI (1) facing the coil surfaces...
  • Page 6: Water Inlet And Outlet Connections

    WATER INLET AND OUTLET CONNECTIONS CONNECTIONS TO HEAT PUMP Plumb the ZHP-3216-TI, ZHP-80-TI and ZHP-65-TI heat pump inlet and outlet with schedule 40, 1.5 inch PVC. MINIMUM/MAXIMUM WATER FLOW RATES Your heat pump is designed to operate successfully between flow rates of 20 to 70 gallons per minute (GPM). The plumbing system must be designed to maintain at least 20 GPM flow through the heat pump.
  • Page 7: Basic Connection

    To avoid chemical damage to the heat Chlorinator Pool ZHP-3216-TI pump, do not pour chemicals ZHP-80-TI directly into the skimmer or ZHP-65-TI main drain. Refer to the Top View...
  • Page 8: Maintenance

    MAINTENANCE Before performing any maintenance on the heat pump you must turn off the electricity at the breaker of the WARNING electrical supply line. Cleaning To ensure optimum performance of the heat pump, follow these recommendations: • Backwash the filter of the pool on a regular basis in order to ensure proper flow rate through the pool heater. •...
  • Page 9: Some Tips On Water Chemistry

    SOME TIPS ON WATER CHEMISTRY Your heat pump, just as any type of pool heater (gas, oil, electric, etc.), features some metal parts that can be damaged by bad pool water chemistry. The condenser of your pool heat pump is made of a copper alloy that, as resistant as it is, is sensitive to pH.
  • Page 10: Sanitizers

    Sanitizers Sanitizers are products used to sanitize water, to relieve it from microbes and algae.They are chlorine, in its different forms and bromine. Each has its advantages and inconveniences and have different pH values. They can have different impacts on water chemistry and can necessitate various chemical products to counter-balance those impacts or to stabilize them. Warm water is more difficult to maintain, it necessitates greater quantities of sanitizers, and therefore, greater quantities of other chemical products.
  • Page 11: Heat Pump Digital Control

    HEAT PUMP DIGITAL CONTROL Keyboard description The equipment front part, as shown below, consists of no. 4 keys, a 4-digit display and no. 6 icons. KEYS MODE MODE key use: Press once: ON/OFF - RESET display in switching on mode: On in switching off or reset: OFrS Press twice: heat pump operation display (HOT ) without changing key display: HEAt The actual mode change occurs when the selection label is no more shown on display.
  • Page 12 ICONS DEFROST icon The unit will determine when defrosting is required.The DEFROST icon comes on steady when a defrost cycle is running. The defrost cycle will run until complete. The unit cannot be turned off while a defrost cycle is running.
  • Page 13 ALARMS When an alarm occurs, the relevant label will be shown on display. Press DOWN to check whether further alarms occur. In case of a single alarm, the original label will remain. Resettable alarms (reset alarm) can be separated from the non resettable alarms (permanent alarm) due to the fact that their label will be blinking while the resettable alarm labels will be steadily on.
  • Page 14: Questions And Answers

    QUESTIONS AND ANSWERS 1) Is it possible that my pool is losing water since my pool heater was installed? Your pool is not losing water, but because the pool water is at a higher temperature, there is more evaporation. When the difference of temperature between the pool water and the surrounding air is increased, more evaporation happens.
  • Page 15: Zodiac Pool Heat Pumps

    For those purchasers who do return their owner registration card, Zodiac warranties the heat pump to be free from defects in materials and workmanship for the above mentioned period of time or Zodiac will repair or replace said product (it’s sole discretion) at no charge for labor, materials and shipping costs.
  • Page 16 Consumer’s Responsibility The warranty card included with the purchase of a Zodiac pool heat pump must be sent back to Zodiac Pool Care, Inc.within 30 days following receipt.You are responsible for the cost of all service calls made in regards to instructing you on how to operate your system or to correct an improper installation of the system not approved or described in the manufacturer’s...
  • Page 17 ZODIAC POOL CARE, INC. 2028 N.W. 25th Avenue Pompano Beach, FL 33069 1-800-830-4808 www.zodiacpoolcare.com CUSTOMER SERVICE: info@zodiacpoolheating.com...
