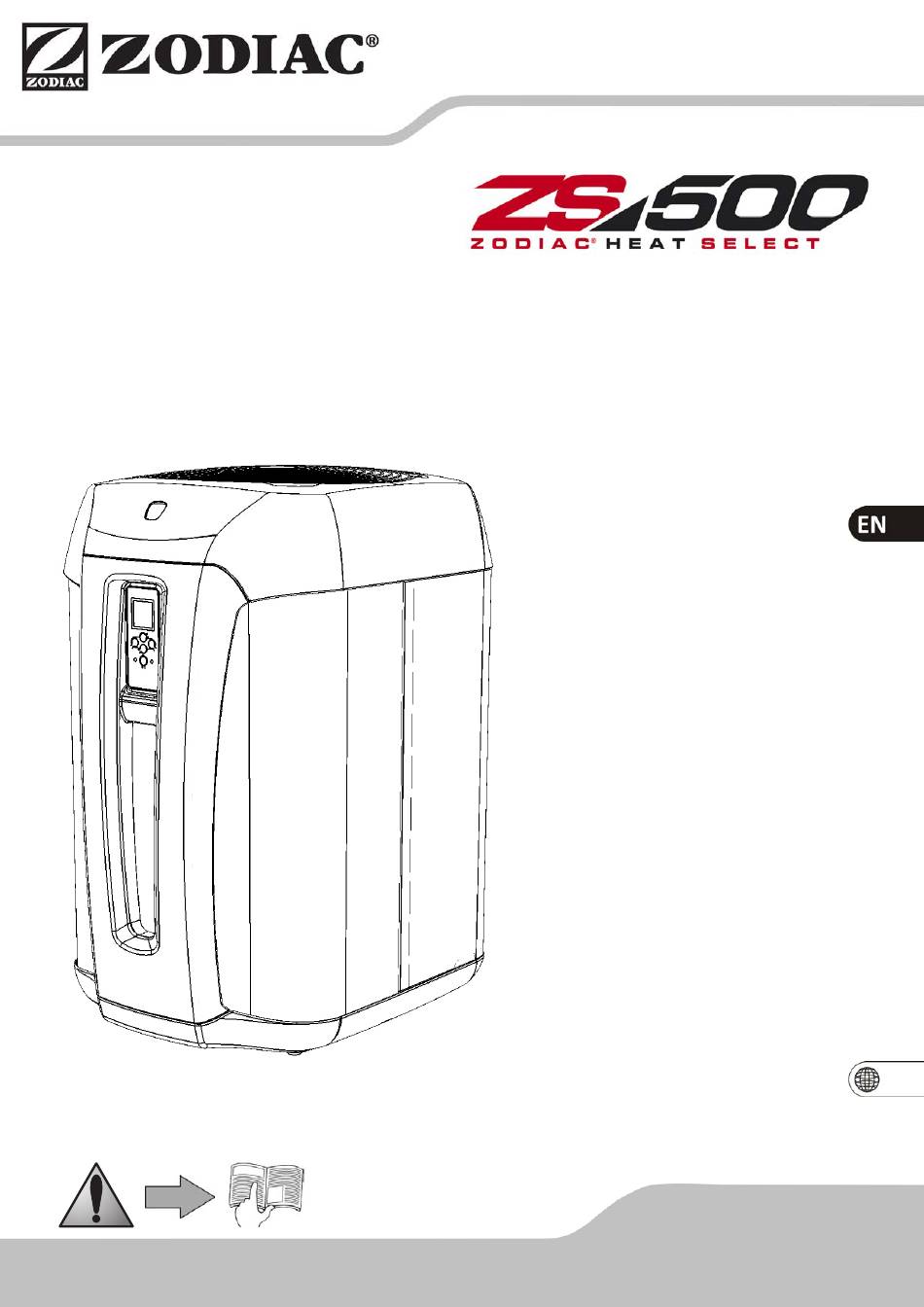

- Page 1 Instructions for installation and use English More documents on: www.zodiac-poolcare.com H0430700.A - 2014/05...
- Page 2 • Read this notice carefully before installing, maintaining or repairing this appliance! • The symbol indicates important information that you must take into account to avoid the risk of damage to persons or the appliance. • The symbol indicates useful information as an indication. Warnings •...
-
Page 3: Table Of Contents
Contents 1. Installation ............................... 3 1.1 Technical specifications ..........................3 1.2 Accessing the technical compartment ....................... 3 1.3 Selection of the location ..........................3 1.4 Hydraulic connections ..........................3 1.5 Electric connections ............................4 2. Use ..................................5 2.1 Presentation of the regulation ........................ -
Page 4: Installation
1. Installation Do not lift the appliance using the casing, handle it from the base. 1.1 Technical specifications • Operating range from -12 °C to 40 °C air temperature, and from 10 °C to 32 °C water temperature, • class: I, •... -
Page 5: Electric Connections
Follow the hydraulic connection direction (see § «Dimensions» in the appendix). The piping must be supported. • Connection must use Ø50 PVC rigid pressure piping, from a bypass, on the pool filter circuit, after the filter and before water treatment. •... -
Page 6: Use
Alarm: • Function: connect a relay to the alarm contact, • using a dry contact • between terminals 1-2 (220-240V 2A maximum when the alarm is on), Remote «on/off» command: • Function: connect a remote «on/off» button. • using a potential-free, no polarity 220-240V ~ 50Hz contact, •... -
Page 7: Starting Up The Appliance
Keyboard lock/unlock: Press for 3 seconds: 2.2 Starting up the appliance • Check that there are no more tools or any other foreign objects in the machine, • The panel to access the technical part must be fitted, • The bypass and settings valves (see §1.4) must be positioned as follows: - valve 1 fully open, - valves 2, 3, 4 and 5 closed Incorrect bypass settings can cause the heat pump to malfunction. - Page 8 Programme time ranges: • Press to access the day or day range selection, using the keys, select the day or the range, then validate by pressing • Use the key to scroll down, select the required operating mode using the keys, then validate using •...
- Page 9 Description (percentage in terms of maximum Speeds speed) Compressor Compressor operating speed Fan operating speed Open EEV Electronic expansion valve opening Description (only accessible to Error list professionals) Error See §4.1 2.3.3 Presence of flow • Set the flow using valve 5 (or 3 if there is no valve 5). In this adjustment phase, wait for a few minutes after each change in valve position for the appliance to balance.
-
Page 10: Checks To Carry Out Once The Appliance Is Running
2.3.5 Setting the time • Press to enter day selection, using the keys, select the day, then validate using • Scroll down to the «time» parameter using the key, enter the parameter using , first modify the hours using keys, validate by pressing , then change the minutes using the keys, validate by pressing 2.3.6 Languages... -
Page 11: Maintenance Instructions
3.2 Maintenance instructions It is recommended to carry out general servicing of the appliance on wintering and recommissioning, in order to check it is in good working order and maintain its performances, as well as to prevent certain possible defects. These actions are the user’s responsibility and must be carried out by a technician. -
Page 12: Appliance Malfunctions
Display Meaning Cause Solution Acknowledgement 1. Bad connection between card Automatic (if less A1 and the dissipator than 4 faults per Overheat on the If the fault persists, call an Error 02 2. The gills on the rear panel of hour) or press on electronic card approved technician... -
Page 13: Faq
Malfunction Possible causes Solutions The appliance is • Insufficient filtering time • Switch the filtering to manual 24h/24 for the working but the • Usage period not compliant temperature rise water temperature • The heat pump is undersized • Check that the outside temperature is compliant does not rise •... -
Page 14: Registering The Product
5. Registering the product Register your product on our website: be the first to be informed of new Zodiac® products and special offers, help us to constantly improve our product quality. Europe & Rest of the World www.zodiac-poolcare.com Americas www.zodiacpoolsystems.com Australia –... - Page 15 Electric diagram ZS500 M5 H0430700.A - EN - 2014-05...
- Page 16 L-N-PE 230V-1N-50Hz protected power supply Earth Alarm contactor (max 230V 2A contactor) 3-4-5-6 AquaLink TRi® remote control (with shieled cable) 9-10 Remote control 11-12 Pump controls (8A max contact) Electronic regulation board Electronic display board Low pressure controller Filter Ignition coil Electronic pressure reducing valve F type protection fuse (6,3x32 - 25A) Ferrite...
- Page 17 Dimensions and description overall dimensions Grate Display Pool water inlet Ø50 Pool water outlet Ø50 Evaporator ZS500 Weight (Kg) Contents ZS500 Wintering cap Glue-on coupling Ø50 Available accessories Control panel offset kit Wintering cover Technical room kit Pac Net H0430700.A - EN - 2014-05...
- Page 18 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
