2.2.1 Mounting the Controller Assembly Remotely

To mount the controller assembly remotely a 6 pin connector (PN 153885) is required. See Figure 2-5 for terminal
location and pin assignments.
Note
Controller Assembly can be mounted remotely on a standard 35 mm DIN rail up to 250 ft from display.
When mounting the display
remotely from the controller
assembly, connect to this
terminal.
J1
12 880 Installation Manual
J6
J2 J3

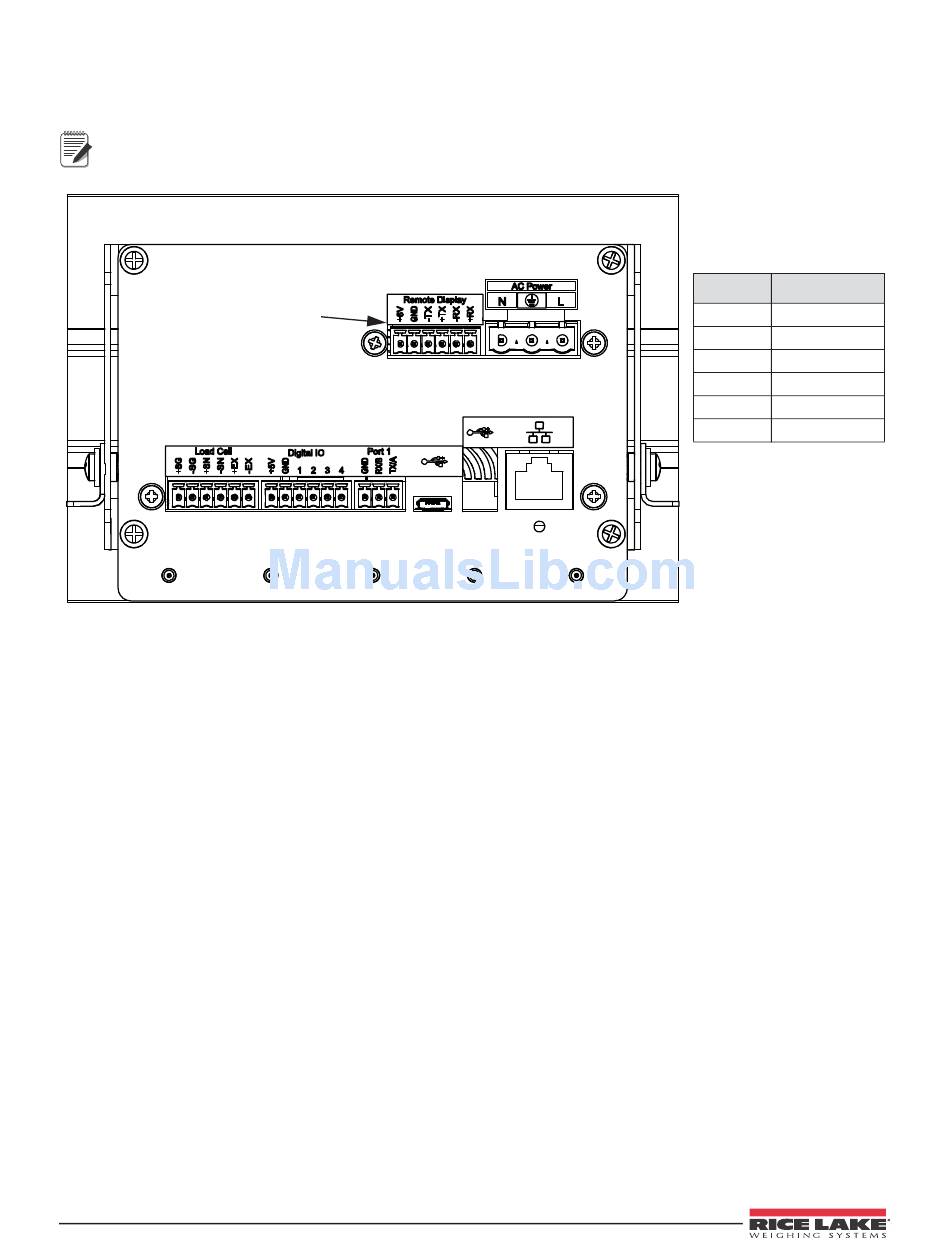

Figure 2-5. Mount Controller Assembly Remotely
Pin Function
1 +6V
2 GND
3 -TX
4 +TX
5 -RX
6 +RX
