Description Of The Device; Overview - SHOWTEC Single WDP-1 Manual

Single WDP-1

Description of the device

Features
The Showtec Single WDP-1 is a 1-channel DMX dimmer/switch with a built-in wireless DMX receiver.
It is possible to mount the Single WDP-1 to any wall, truss or a fixture which makes it suitable for any
location.
Input voltage: 230V AC, 50Hz
•
Output: 10A Schuko output
•
Connections: 3-pin DMX signal connector IN/OUT
•
50 mm dimming fader
•
Built-in wireless DMX receiver
•
DMX channels: 1 channel
•
Housing: Metal & flame retardant plastic
•
Color: Grey
•
Fuse: F10L/250V
•
Dimensions: 100 x 95 x 273 mm (LxWxH)
•
• Weight: 1,4 kg
Optional accessories
50231 – W-DMX Micro F-1 Transceiver
50236 – W-DMX BlackBox F-1 MKII G4 Transceiver

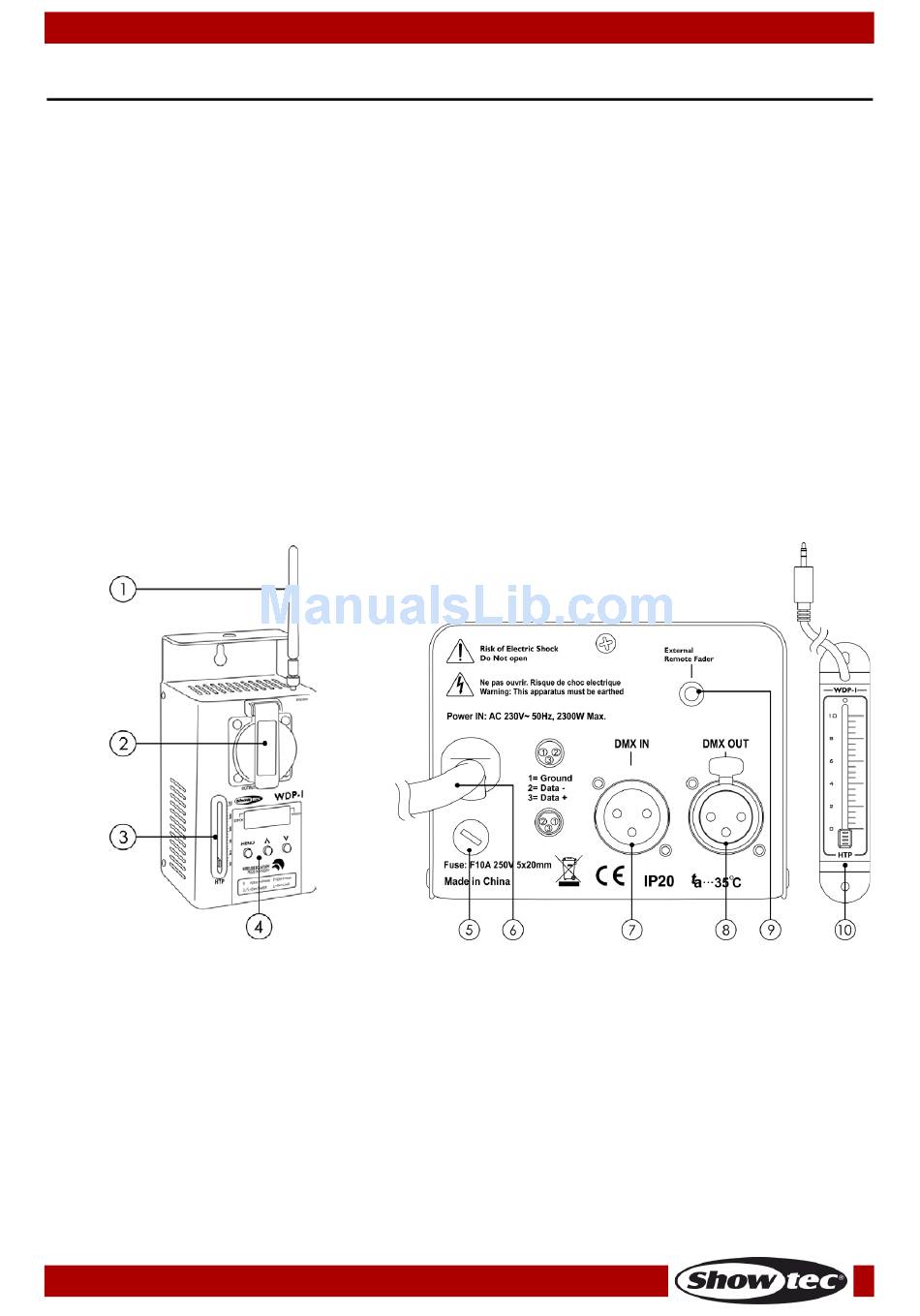

Overview

01) Wireless DMX antenna
02) 10A Schuko OUT
Connect a light source.
03) Manual dimming fader (HTP)
Move the fader up and down, to adjust the dimmer brightness.
04) LED display + control buttons
05) Fuse F10L/250V
06) 230V AC Schuko power cable (1 m)
07) 3-pin DMX signal connector IN
08) 3-pin DMX signal connector OUT
09) Remote dimming fader connector – 3,5 mm mini jack IN
Connect the remote dimming fader (10).
10) Remote dimming fader 1,9 m (HTP)
Move the fader up and down to adjust the dimmer brightness.
Ordercode: 50756
5
Fig. 01
