Using the Operator Control Panel

Use the operator control panel to start and stop the IntelliPro
VST Variable Speed Pump, program, set, and change speeds
(RPM), and access pump features and settings.
Controls and LEDs on Keypad:
Button 1: Press to select Speed 1 (750 RPM). LED on
1
indicates Speed 1 is active.
Button 2: Press to select Speed 2 (1500 RPM). LED on
2
indicates Speed 2 is active.
Button 3: Press to select Speed 3 (2350 RPM). LED on
3
indicates Speed 3 is active.
Button 4: Press to select Speed 4 (3110 RPM). LED on
4
indicates Speed 4 is active.
Back: Goes one step back in menu; exits without saving
5
current setting.
Save: Saves current menu item setting. When a parameter
6
has been adjusted the "Save?" icon will be displayed.
Menu: Accesses the menu items when and if the pump is
7
stopped.
8
Select: Press to select the currently displayed option on the
screen.
9
Arrow buttons:
• Up arrow: Move one level up in the menu or increase
a digit when editing a setting.
• Down arrow: Move one level down in the menu or
decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a
setting.
• Right arrow: Move cursor right one digit when editing
a setting.
Quick Clean: Pump increases to a higher RPM for
10
vacuuming, cleaning, adding chemicals, and after a storm for
extra skimmer power. LED light is on when active.
Time Out: Pump is not running on preset schedule. This can
11
be used to allow newly glued pipe joints time to dry before
circulation of water starts. LED is on when active.
Start/Stop button: To start or stop the pump. When LED is
12
on, the pump is running or in a mode to start automatically.
13
Reset button: Reset alarm or alert.
14
LEDs:
On: Green light when pump is powered on.
Warning: On if warning condition is present.
Alarm: Red LED on if alarm condition occurs.
See "Alerts and Warnings" on page 23.
15
Control Panel LCD Screen:
Line 1: Key icon indicates password protect mode is
active. If password protect is not enabled, no key icon is
displayed. Also shows current time of day. Active cursors
display when arrow key input is available.
Line 2: Displays current pump speed (RPM).
Line 3: Countdown time and watts
• Line 4: Current pump status and current feature. "Save?"
will display on this line when a parameter adjustment
can be saved.
®
2
1
2
5
Line 1
Line 2
15
Line 3
Line 4
14
10
11
Note: Always close the keypad cover after using
the keypad.
Note: Using screwdrivers or pens to program the
pump will damage the keypad overlay. Use your
fingers only when programming the pump.
INTELLIPRO
®
2 VST Variable Speed Pump Installation and User's Guide
12:15p
750 RPM
T 0.00 150 WATTS
Running Speed 1
1
2
3
4
Back
Save
Menu
Select
Quick
Time
Clean
Out

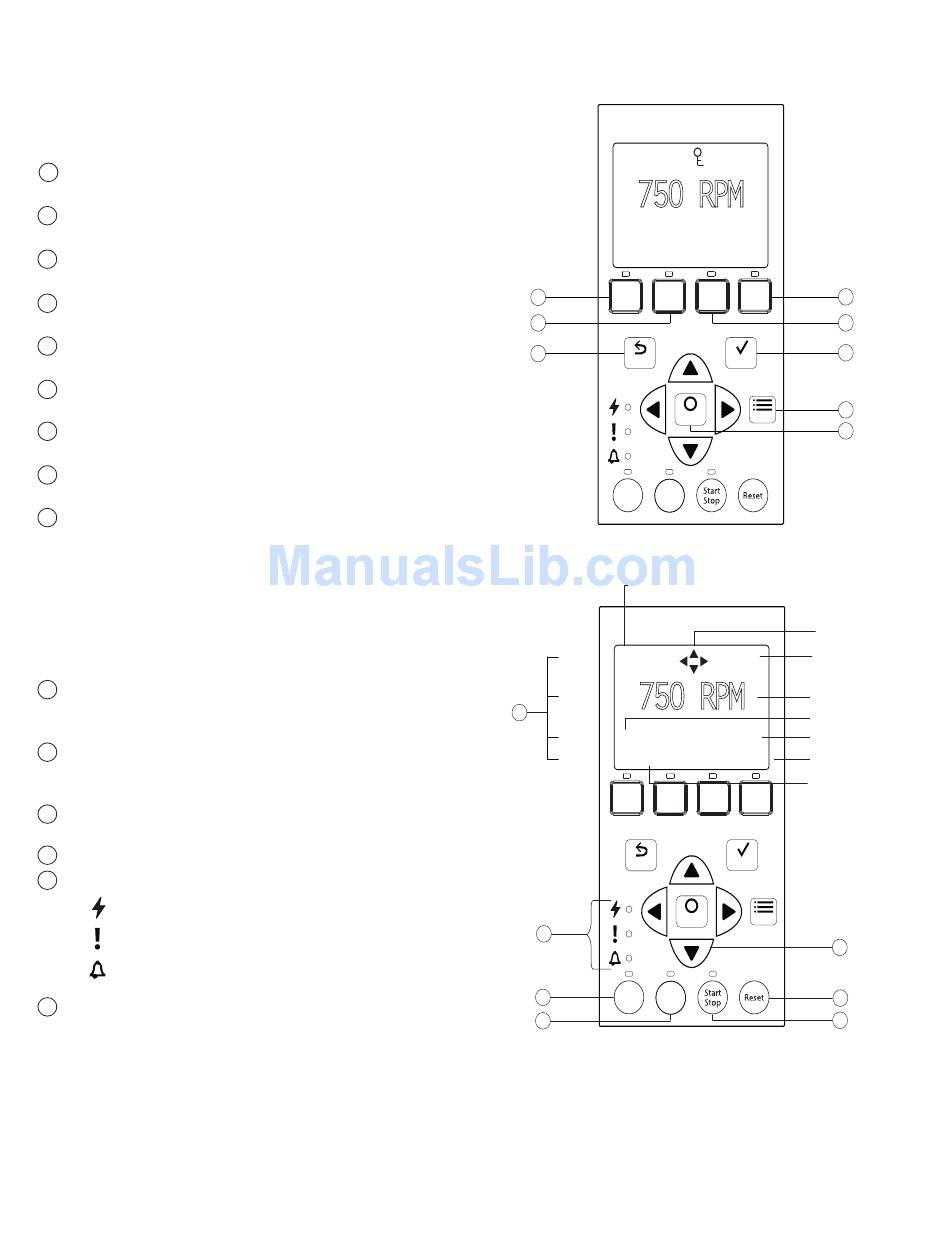

Control Panel #1-8
Key Lockout Icon
12:15p
750 RPM
T 0.00 150 WATTS
Running Speed 1
Save?
1
2
3
4
Back
Save
Menu
Select
Quick
Time
Clean
Out
Control Panel #9-15
5
4
3
6
7
8
Active Cursors
Current Time
Current Speed
Countdown Time
Current Power Usage
"Save?" Icon
Current Running
Feature
9
13
12
