- Page 1 FM540 Mobile Radio Instruction Manual...
-
Page 3: Instruction Manual
Kirisun Communications Co., Ltd. We believe KIRISUN two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and functions of KIRISUN two-way radio can meet your demands on reliable communication. - Page 4 FM540 Mobile Radio Instruction Manual Emergency Alarm ..............错误！未定义书签。...
- Page 5 Kirisun or its authorized parities. Due to the update or modification of the product, Kirisun owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only.
- Page 6 ◆ The power supply should be cut off once abnormal smell and smoke occur from the radio. And then please contact the local distributor of KIRISUN. ◆ As the radio is designed to use 13.8V DC, do not connect it to 24V battery.
-
Page 7: Table Of Contents
FM540 Mobile Radio Instruction Manual Contents Unpacking and Checking ..................1 Preparation ......................3 Mobile Radio Installation ..................3 Attaching the DC Power Cable ................4 Attaching the Antenna....................6 Attaching the Accessories ..................7 Product Overview ....................8 Front Panel ......................8 ICON ........................ -
Page 8: Unpacking And Checking
FM540 Mobile Radio Instruction Manual Unpacking and Checking Unpack the mobile carefully. We recommend that you check the mobile and the supplied accessories listed in the following table before discarding the packing material. If any damage or loss has occurred during shipment, please contact the delivery man or the dealer without delay. - Page 9 FM540 Mobile Ra adio Instr ruction Manual...
-
Page 10: Preparation
FM540 Mobile Radio Instruction Manual Preparation Mobile Radio Installation When installing, please choose a safe and convenient place and try to avoid the danger which may occur during driving. When selecting the installation location, please take into consideration that the knee or leg may hit the mobile during an emergency brake. -
Page 11: Attaching The Dc Power Cable
FM540 Mobile Ra adio Instr ruction Manual Attaching th he DC Power Cable ◆Vehicle Power Su upply Connection The rated voltage of f the vehicle battery must be 12 2V, and do not connect the mob bile to a 24V battery. Make sur... - Page 12 FM540 Mobile Radio Instruction Manual 2. Connecting the mobile to the power supply. ● Pressing two connectors until the locking tab clicks . Note: If you use the mobile for a long time in the case of the vehicle battery is not fully charged, the engine flameout may consume battery power net, and the remainder of the charge is insufficient to start the vehicle.
-
Page 13: Attaching The Antenna
FM540 Mobile Radio Instruction Manual ● Please connect all the wires before connecting the DC power supply to an AC socket. ◆Replacing the fuse If the fuse is broken, first identify the cause, and then solve the problem. Replace the fuse after the problem is solved. -
Page 14: Attaching The Accessories
FM540 Mobile Ra adio Instr ruction Manual Please use the an ntenna of 50Ω impedance a and the low-loss coaxial fee eder of 50Ω impedance to ma atch the input impedance of t the mobile radio. Note: Make sure tha... -
Page 15: Product Overview

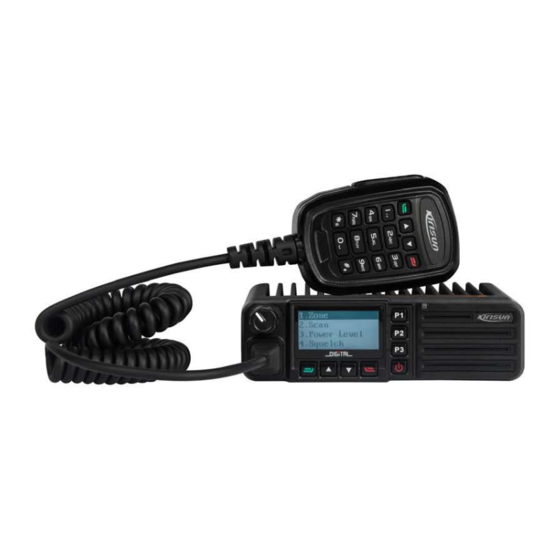

FM540 Mobile Radio Instruction Manual ◆PC Connection Please use a specialized programming cable to connect the mobile radio to your PC computer (through speaker/programming connector) Product Overview Front Panel... - Page 16 FM540 Mobile Radio Instruction Manual ① Microphone/Programming Interface ② Volume Control Knob *Adjusting the volume. LCD Screen ③ *See “LCD display” section for details ④ P1 key (programmable key) ⑤ P2 key (programmable key) ⑥ LED Indicator *Glows red when transmitting and glows green when receiving carrier wave.
-
Page 17: Icon
FM540 Mobile Radio Instruction Manual ICON Icon Indication Signal strength indication. The signal gets stronger with more bars. Unread message. Full inbox Scanning High power on the current channel Middle power on the current channel Low power on the current channel Keypad is locked. -
Page 18: Rear Panel
FM540 Mobile Radio Instruction Manual Transmitting signal Receiving signal Call holding 401.12500 Channel frequency CH 8 Channel number or channel alias Rear Panel ① Antenna Connector ② Power Connector ③ External Speaker Connector... -
Page 19: Microphone(Hand-Held)
FM540 Mobile Radio Instruction Manual Microphone(Hand-held) - Page 20 FM540 Mobile Radio Instruction Manual 1. [PTT] Key Press the key to transmit signal and release it to receive. 2. [*] Key Switch between English upper case and lower case in the edit interface. 3. [#] Key Switch typewriting in the edit interface 4.
-
Page 21: Basic Operation
FM540 Mobile Radio Instruction Manual Basic Operation Switch Power During the power-off status, long press the Power Switch Key to turn on the mobile, and the LCD screen will be enabled with automatic back light on and alert tone ringing. -
Page 22: Receiving
FM540 Mobile Radio Instruction Manual 3. Select high power for long communication distance; select low power for short communication distance in order to save battery power. Analog Channel ◆ 1. Press [PTT] key to transmit signal and speak to the microphone. -
Page 23: Menu Operation
FM540 Mobile Radio Instruction Manual Menu Operation The menu will be different between analog channel and digital channel. Besides, users can decide whether some partial menu should be displayed in the menu through programming the CPS software. Menu Operation： 1．Press [MENU] key to enter menu item. - Page 24 FM540 Mobile Radio Instruction Manual |---Message |---Zone |---Scan |---Power Select |---Digital Signaling |---Encryption |---Setting Contact ◆ ： Press [MENU] key to enter the main menu, and select “Contact”, the sub-menu of which includes: “Contact List”, “Add Contact”,” Make a Call”.
- Page 25 FM540 Mobile Radio Instruction Manual Calls” and “Delete All”. The mobile can record the dialed calls and answered calls. While the call log is full, and a new call occurs, the earliest record will be covered automatically. Call Logs |---1 Dialed Calls |---2 Delete All 1.
- Page 26 FM540 Mobile Radio Instruction Manual If a new message is received, the icon will be displayed. If the inbox is full, the icon will be displayed, and in this condition, the earliest message will be covered by the new message.
- Page 27 FM540 Mobile Radio Instruction Manual * Delete Channels： During scanning, when the mobile stops on an unwanted channel, such as interference channel, “Nuisance Del” can be selected to delete the unwanted channel, and the scanning continues. Power select ◆ You can set the power through the Menu. High power setting enables a long distance communication and it requires stronger power supply.
- Page 28 FM540 Mobile Radio Instruction Manual You can send “Remote Monitor” command to a certain contact (only private contact) and monitor the mobile. Encryption ◆ You can enable/disable the encryption feature. Setting ◆ The operation parameters can be set according to the habits and requirement of users, which includes back light, keypad lock, LED indication, language and other information.
-
Page 29: Analog Mode Menu
FM540 Mobile Radio Instruction Manual No lock: The keypad will not be locked at all time. Delay lock: Delay the lock according to the predefined time. * LED Indication On：LED indication is enabled. Off：No LED indication * Key Tone On：Key tone is enabled. -
Page 30: Time Out Timer
FM540 Mobile Radio Instruction Manual |---Power |---Squelch Level |---Setting The zone, scan, power and setting is the same with the digital menu. * Squelch Level The squelch level of the current channel can be set. Feature and Operation Time Out Timer This feature prevents the user from occupying the channel for a long time. - Page 31 FM540 Mobile Radio Instruction Manual The alarm method is made of two parts as follows: *Alarm type: Specifies the acousto-optic reaction for emergency alarm. * Alarm mode：Specifies the TX information sent to other mobiles during the alarm. The parameters can be set by the dealer to meet your requirement.
-
Page 32: Voice Encryption
FM540 Mobile Radio Instruction Manual Voice Encryption This mobile has voice encryption feature to ensure the privacy of the communication. Password Setting ◆ 1. Select “Voice Encryption” in “Menu Setting” menu of PC programming software. 2. To add encryption key at “Voice Encryption Key List” in “Voice Encryption” of PC programming software, it is secure with more bits. -
Page 33: Troubleshooting
FM540 Mobile Radio Instruction Manual Trouble shooting The following table shows some FAQ of operations. These problems are caused by improper operation instead of circuit failure. Before identifying the mobile problems, please check the following table or contact your local distributor. - Page 34 FM540 Mobile Radio Instruction Manual Most of the keys of the keypad of the hand-held microphone hand-held Unlock the keypad. does not work. microphone is locked The microphone plug Switch off the mobile and connect the completely microphone plug into the jack till a “Click” is connected to the jack heard.
- Page 35 FM540 Mobile Radio Instruction Manual...
- Page 36 FM540 Mobile Radio Instruction Manual...
