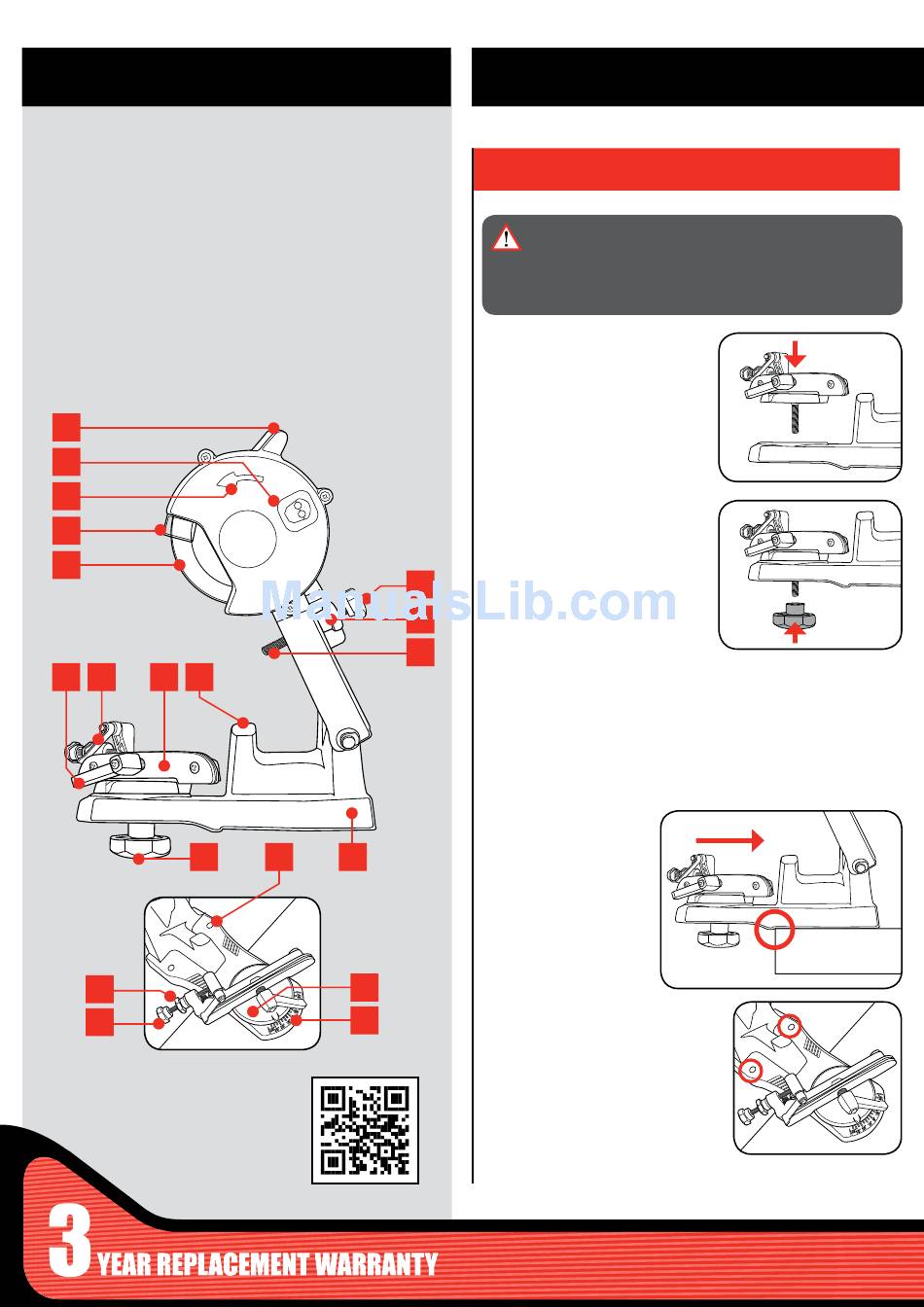

KNOW YOUR PRODUCT

CHAINSAW CHAIN SHARPENER
1. Lowering hand piece
2. Sharpening wheel cover
3. Direction of rotation indicator
4. Safety guard
5. Sharpening wheel
6. Depth of grind knob
7. Depth of grind locking knob
8. Depth of grind pin
9. Guide clamp lever
10. Chain (tooth) stop
1
2
3
4
5
9 10 11 12
13
16
18
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
11. Guide
12 Depth stop platform
13. Table locking knob
14 Bench mounting holes
15. Sharpener base
16. Chain stop adjusting
knob lock nut
17. Adjustable table
18. Chain stop adjusting knob
19. Table scale
6
7
8
14 15
17
19
SETUP & PREPARATION
1. ASSEMBLY
WARNING!: BEFORE ASSEMBLING, MOUNTING,
SETTING OR MAINTAINING YOUR SHARPENER,
MAKE SURE THAT THE MOTOR IS OFF AND THE TOOL
DISCONNECTED FROM THE POWER SUPPLY TO PREVENT
ACCIDENTAL STARTING.
Assembling the table
1. Insert the bolt of the table through
the hole in the base.
2. Secure the table in place by fixing
the locking knob to the bolt (by
screwing the knob clockwise).
Mounting the sharpener
For safe operation of the sharpener, the base of the tool must be fitted to
a flat, solid, secure surface such as a work bench.
The sharpener base is designed in two halves. The rear half is for fitting
flat to a stable surface and the front is designed to protrude over the edge
of the mounting surface.
The sharpener base should
be fitted to the mounting
surface by sliding the
rear half back until the
two 'steps' on the base
align with the edge of the
mounting surface. Ensure
when mounting, that the
table locking knob is still
easily accessible for when
adjusting the table angles.
Two 6mm mounting holes allow for fixing
the base to the mounting surface (bolts
not supplied). Ensure the mounting
surface is capable of supporting the
weight of the sharpener and chain to
be sharpened.
