Ozito OZMFS65WA Instruction Manual

Multi-function sharpener 65w
Hide thumbs

Advertisement

Table of Contents

Multi-function
Sharpener
65W
Instruction Manual
3 Year Replacement Warranty
OZMFS65WA
! !
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0312
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OZMFS65WA and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito OZMFS65WA

Summary of Contents for Ozito OZMFS65WA

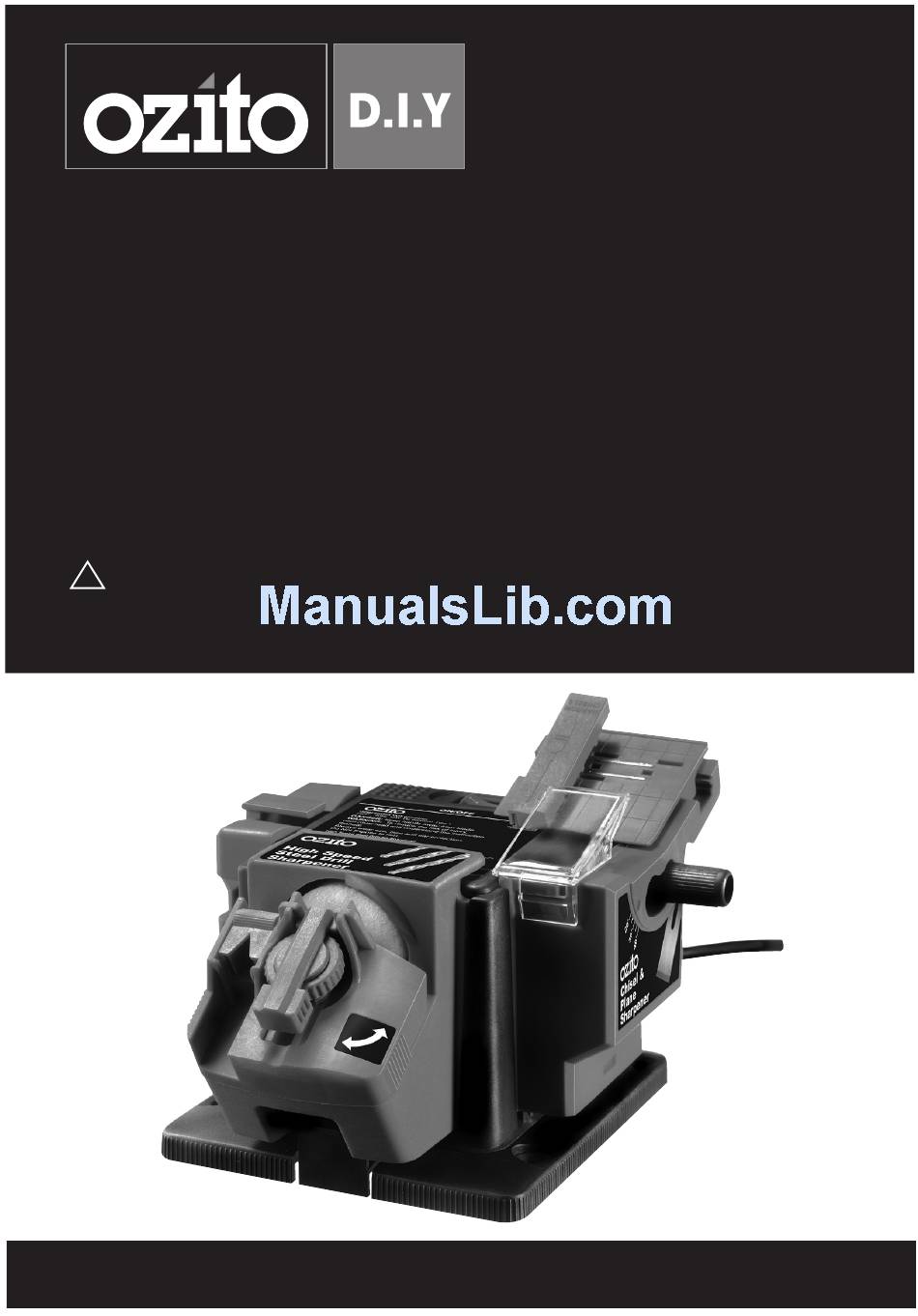

  • Page 1 Sharpener Instruction Manual 3 Year Replacement Warranty OZMFS65WA WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SPECIFICATIONS – MODEL NO. OZMFS65WA Motor size: Input: 230V ~ 50Hz No load speed: 6,700 /min Wheel working speed: 15.4 m/s Sharpening Wheel diameter: 49mm (1 ") Sharpening capacity: Drill bit: 3 - 10mm ( Blade or straight edge chisel: 6 - 51mm ( - 2")

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 INTRODUCTION………………………………………... Page 4 ELECTRICAL SAFETY…………………………………… Page 4 GENERAL POWER TOOL SAFETY WARNINGS…….. Page 5 ADDITIONAL SAFETY INSTRUCTIONS FOR MULTI FUNCTION SHARPENER………………………………. Page 7 OPERATION …………………………………………….. Page 8 MAINTENANCE …………….………………………….. Page 10 SPARE PARTS……….…………………………………… Page 10 DESCRIPTION OF SYMBOLS…………………………..

  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 5: General Power Tool Safety Warnings

    GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL SAFETY INSTRUCTIONS (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 7: Additional Safety Instructions For Multi Function Sharpener

    ADDITIONAL SAFETY INSTRUCTIONS FOR MULTI-FUNCTION SHARPENER This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.

  • Page 8: Operation

    TOOL OPERATION It is recommended that the Multi-function Sharpener be bolted to a secure bench prior to operating. Chisel and blade sharpener 1. Install chisel and blade sharpener module (2) by sliding it onto the power unit (8). 2. Position the chisel or blade on the blade rest (2e). The magnets (2b) will hold the blade in position.
  • Page 9 TOOL OPERATION (cont.) 3. Place the clamp assembly (4b) with the drill bit into the “V” guide (4a) by locating the grooves on the side (Fig. 5). 4. Position the drill bit so that it lies in the “V” guide (4a) and touches the metal end stop in the “V”...

  • Page 10: Maintenance

    Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.

  • Page 11: Description Of Symbols

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Multi-funcharpener OZMFS65WA 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office)

  • Page 12: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
