Ozito OZCCS85WA Instruction Manual page 5

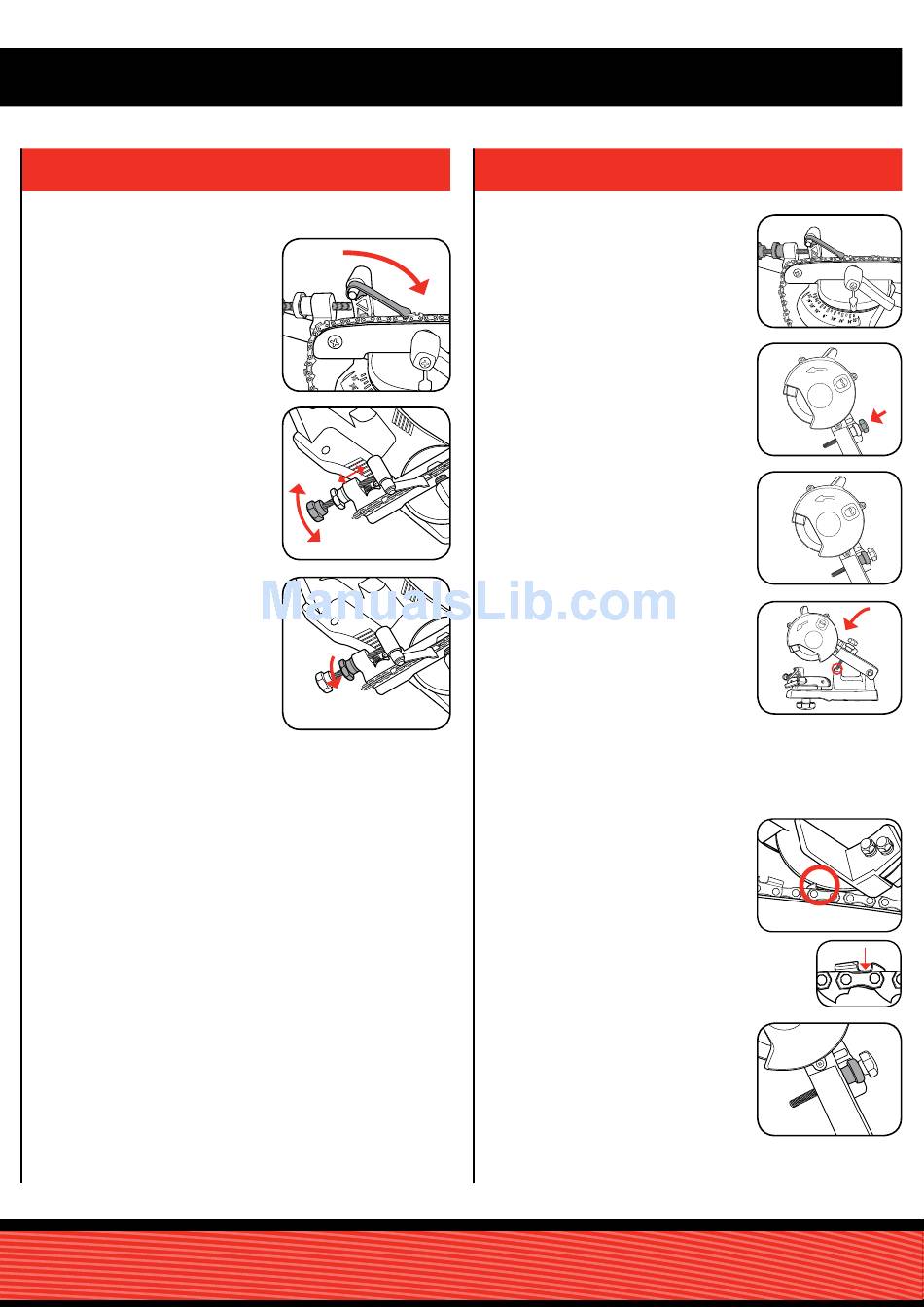

Adjusting the chain (tooth) stop
1. With the chain clamped in position,
rotate the chain stop in behind
the chain tooth aligned with the
sharpening wheel from the previous
setting.
2. Adjust the chain stop so that it is
firmly behind and at the bottom of
the aligned chain tooth by rotating
the chain stop adjustment knob
either clockwise to move the chain
stop forward or anti-clockwise to
move the chain stop backward.
3. When the chain stop is properly
adjusted it should be directly behind
the chain tooth as shown. To secure
in position rotate the lock knob
clockwise as far as possible.
Adjusting the depth of cut
1. Ensure the chain is still locked in place,
the chain stop still flipped into position
and the chain stop adjustment knobs
still secured.
2. Rotate the depth adjustment knob
clockwise as far as it will go (so as much
of the pin is exposed under the head
piece as possible).
3. Rotate the lock knob towards
the housing of the tool.
4. Lower wheel towards the face of the
tooth. The depth pin should meet the
depth stop platform and stop the wheel
from travelling the full distance to the
tooth.
5. Whilst still applying downward pressure on the hand piece
simultaneously start rotating the depth adjustment knob anti
clockwise. Slowly continue rotating the knob anti clockwise whilst
watching the sharpening wheel get closer to the tooth of the chain.
6. When the wheel enters along the face
of the tooth, make sure the wheel is
lowered until it covers the full face of the
tooth but DOES NOT touch the tooth
body below.
Alternatively, you can lower the wheel
until it firmly sits on top of the tooth body
and then rotate the depth adjustment knob 1/2 a
turn clockwise to lift it slightly away from the body.
Lifting the wheel away from the body will prevent
cutting into the body or link and damaging the
chain.
7. When the depth adjustment is correct,
hold the depth adjustment pin in position
with one hand, using the free hand rotate
the lock knob clockwise locking the
depth adjustment pin in position.
The initial set up is now complete.
Fine adjustments may still need to be made once first sharpening
operation is performed.
