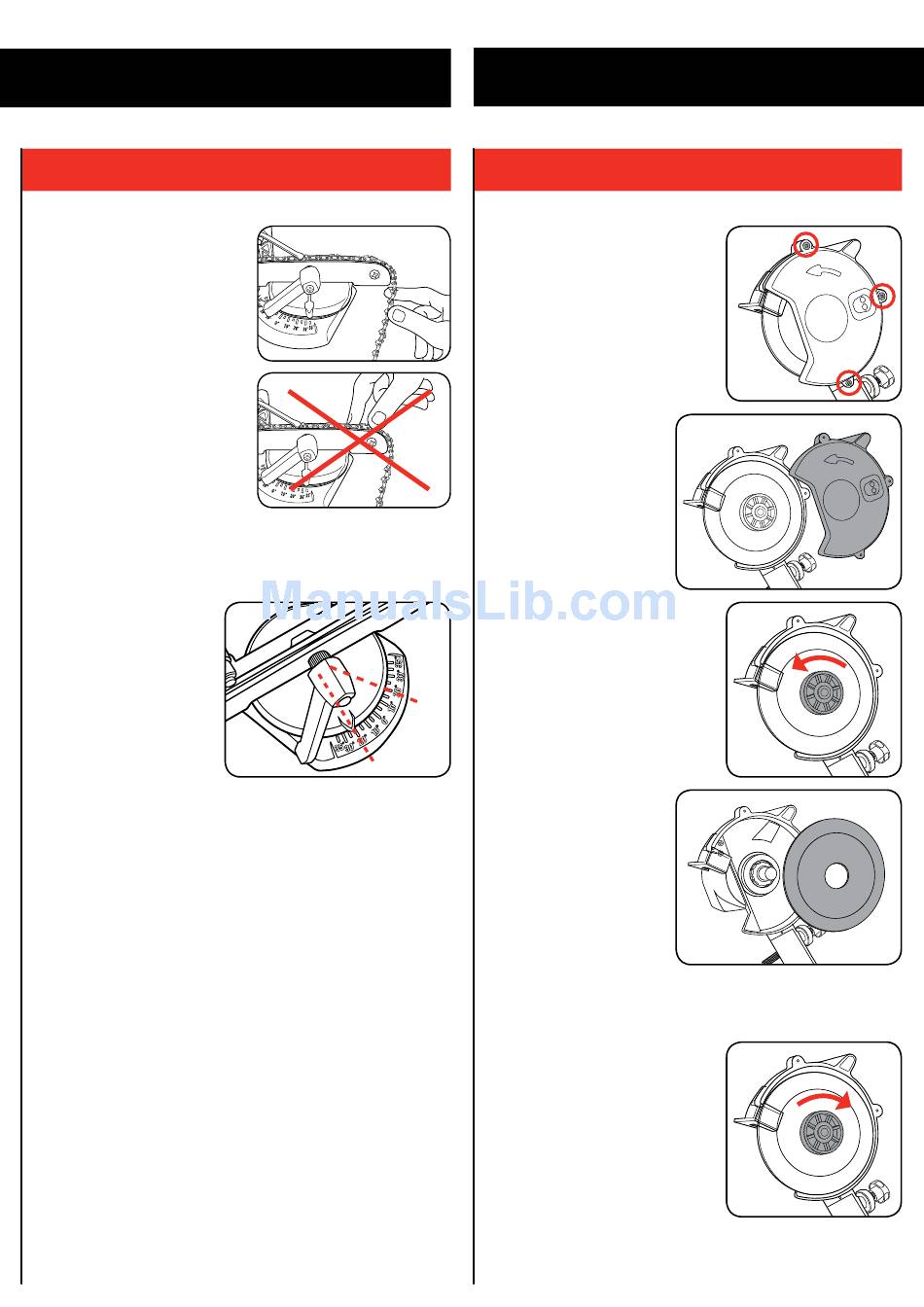

OPERATION
Note: Movement of the chain
through the chain clamp (sliding
guide) should be from the
HANGING chain as shown.
Movement of the chain should
NOT be from the top of the
clamp area.
To move the chain, the clamp
lever should be loosened then
gently pull downwards on the
hanging chain. After the tooth to
be sharpened has passed under
the stop, gently pull the chain via
the hanging chain to the left until
the stop locates the chain tooth.
Always select the correct
orientated tooth for the set
up for the table.
Sharpening teeth in opposite direction
1. Ensure the sharpener is turned off and the wheel is not rotating.
2. Check the angle of
the table of the current
setting, loosen the angle
locking knob, and rotate
the table to the opposite
side, but to the same
corresponding angle.
3. Lock the angle locking
knob firmly.
4. Using the same method above, release the clamping lever and
move the chain to the right and locate the first chain tooth with
the opposite orientation from the first sharpening process. The
settings should be the same, however when making the first cut
always take care and check the amount being cut off the tooth, and
also the depth of the cut. Check both of these settings and adjust
accordingly.

MAINTENANCE

4. WHEEL CHANGE
Removing sharpening
wheel
1. Disconnect the sharpener from
the power supply.
2. Remove the 3 screws holding
the wheel cover to the sharpener
housing.
3. Lift off the cover.
4. Hold the wheel with one hand
and using the free hand turn the
knob at the centre of the wheel
anti clockwise. Remove the knob.
5. Remove the wheel and
replace with a new one.
Fitting a sharpening wheel
1. Replace a new wheel over the spindle.
2. Replace the locking knob and
screw clockwise (hold the wheel
with the free hand to ensure the
locking knob can be tightened
properly).
3. Replace the cover.
4. Secure cover by fixing the 3
screws through the cover back
into the sharpener housing.
