Summary of Contents for Ozito OZCCS85WA

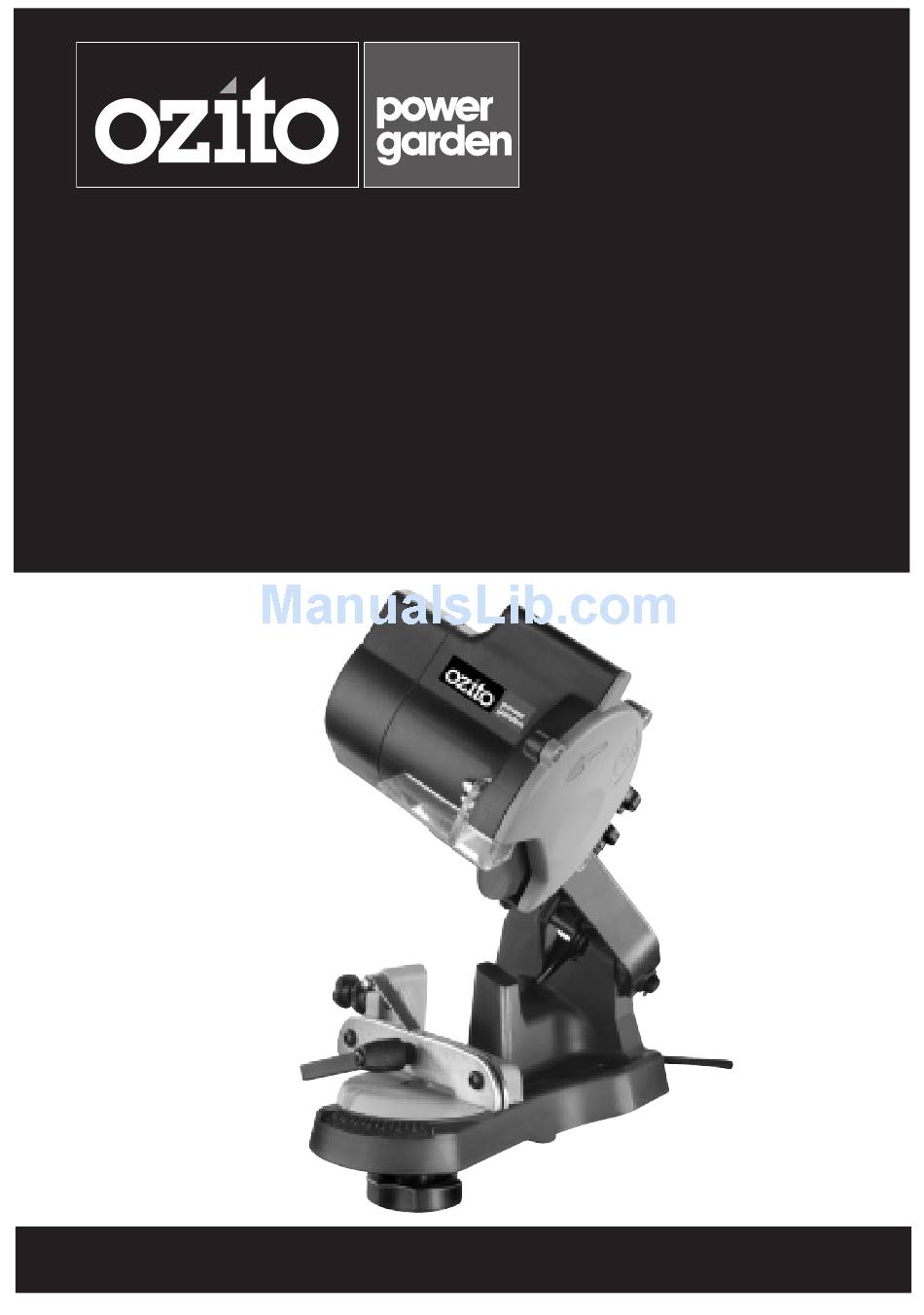

- Page 1 Chainsaw Chain Sharpener 85 Watt Operation Manual 2 Year Replacement Warranty OZCCS85WA 1108 www.ozito.com.au To view the entire range visit:...
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZCCS85WA Motor: 85 watt Input: 230V ~ 50Hz No load speed: 4,800/min Table/vice angles: 0 – 35° left & right Disc dimensions: 108 x 3.2mm Bore diameter: 23mm Suitable for use with Chain pitch sizes: 0.325” and 3/8”... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 2 TABLE OF CONTENTS…………………………………... Page 3 INTRODUCTION…………………………………………. Page 4 SAFETY INSTRUCTIONS………………………………... Page 4 GENERAL…………………………………………………. Page 5 ASSEMBLY ……………………………………………….. Page 7 SETTING OF THE SHARPENER………………………... Page 8 OPERATION ……………………………………………… Page 10 MAINTENANCE …………….…………………………… Page 13 DESCRIPTION OF SYMBOLS…………………………… Page 13 CONTENTS ………………………………………………. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General
GENERAL Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) WORK AREA a) Keep work area clean and well lit. - Page 6 GENERAL (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 7: Assembly
ADDITIONAL SAFETY RULES FOR SHARPENERS Always disconnect the sharpener from the power supply prior to making any adjustments or performing any maintenance. Always wear eye protection. Ensure replacement discs are rated at 4800/min or higher. Using a disc rated below the speed of the sharpener is a hazard. -
Page 8: Setting Of The Sharpener
ASSEMBLY (cont.) Mounting the sharpener Fig. C For safe operation of the sharpener, the base of the tool must be fitted to a flat, solid, secure surface such as a work bench. The sharpener base is designed in two halves. The rear half is for fitting flat to a stable surface and the front is designed to protrude over the edge of the Mounting hole... - Page 9 SETTING OF THE SHARPENER (cont.) 1. If you know the angle of the chain, rotate the table (11) to the same angle as the chain. To rotate the table loosen the table lock knob (10) and rotate the table until the scale indicator lines up with the scale on the base of the sharpener.
-
Page 10: Operation
SETTING OF THE SHARPENER (cont.) 5. Whilst still applying downward pressure Depth Depth on the hand piece simultaneously start adjustment adjustment knob rotating the depth adjustment knob anti clockwise. Slowly continue rotating the Lock knob knob anti clockwise whilst watching the disc get closer to the tooth of the chain. - Page 11 OPERATION (cont.) Caution: During operation, it is important not to overload the sharpener. The sharpener should run at almost full speed at all times. If too much pressure is applied, the sharpener will start to slow down (noticed mainly by the dramatic audible change of the motor.
- Page 12 OPERATION (cont.) Note: Movement of the chain through the chain clamp (sliding guide) should be from the HANGING chain as shown. Movement of the chain should NOT be from the top of the clamp area. To move the chain, the clamp lever (13) should be loosened then gently pull downwards on the hanging chain.
-
Page 13: Maintenance
Periodically check that all nuts, bolts and other fixings are properly tightened. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or mishandling or mistreatment of the tool. -
Page 14: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Chainsaw Chain Sharpener OZCCS85WA 1 x Disc (assembled) 1 x Table & lock knob 1 x Operation Manual... -
Page 15: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, industrial or high frequency use will VOID this warranty.
