Summary of Contents for Ozito OZJS400A
-
Page 2: Specifications

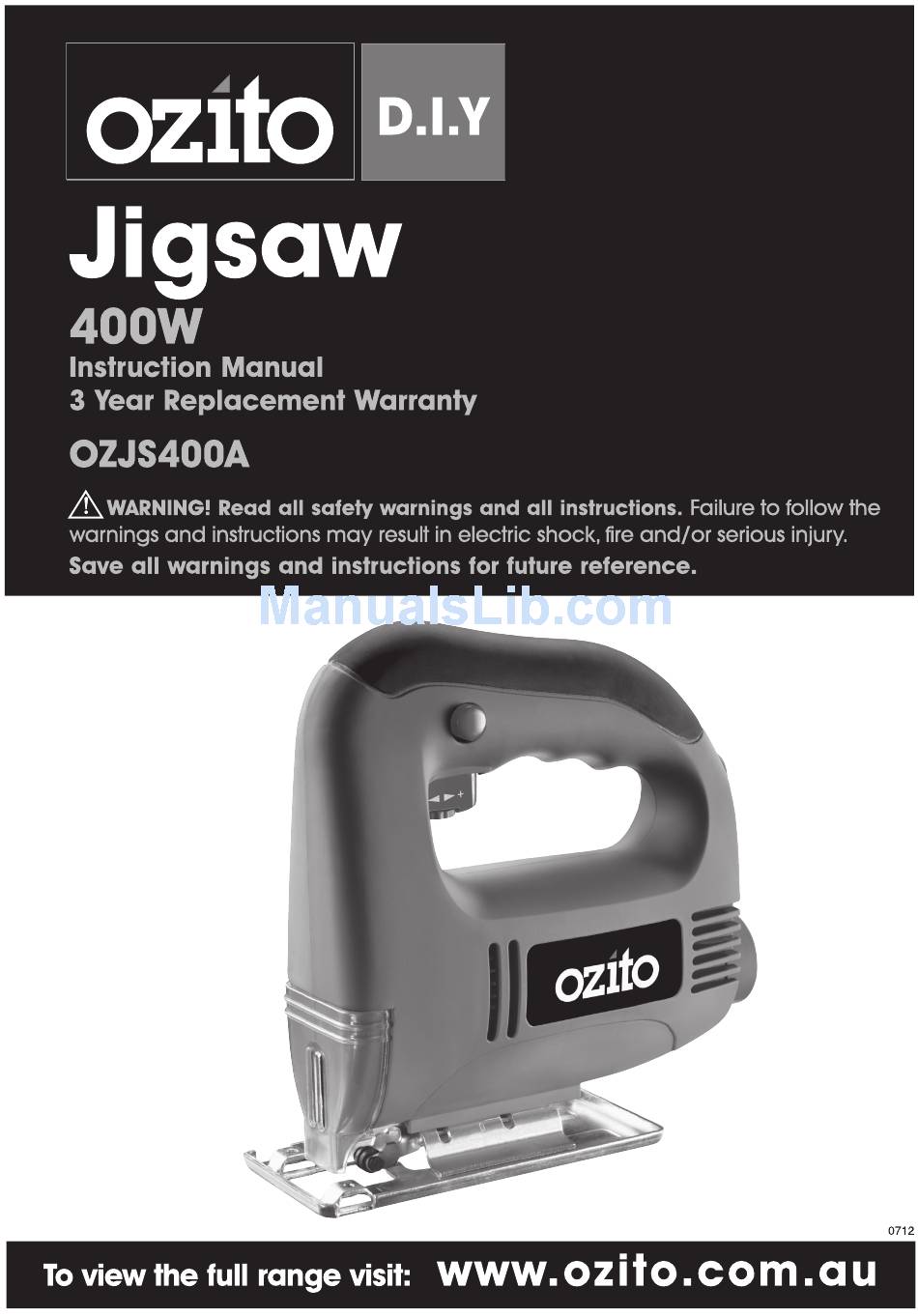

SPECIFICATIONS - MODEL NO. OZJS400A Motor: 400W Input: 230-240V ~ 50Hz No load speed: 500 - 2,900 spm Stroke depth: 18mm Bevel: + / - 45° Blade fitment: Bayonet Tool weight: 2.0kg Cutting capacities: Timber 55mm Mild steel 6mm Plastic 12mm KNOW YOUR PRODUCT 1. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 JIGSAW SAFETY WARNINGS …………………….…… Page 6 INSTALLATION …………………………………………… Page 7 OPERATION……………………………………………… Page 8 MAINTENANCE…………….…………………………… Page 11 PACK CONTENTS ……………………………………… Page 12 WARRANTY………………………………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Jigsaw Safety Warnings
SAFETY INSTRUCTIONS FOR JIGSAWS 1. Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. 2. -
Page 8: Installation
INSTALLATION Inserting a blade 1. Before performing any adjustments ensure the tool has Fig. 1 been switched off and is disconnected from any power supply. 2. Turn the Jigsaw upside down and slide the dust shield towards the shoe as far as it will go (Fig. 1). This makes it easier to access both of the blade securing bolts. - Page 9 INSTALLATION (cont.) Removing a blade 1. Before performing any adjustments ensure the tool has been switched off and is disconnected from any power supply. 2. Turn the Jigsaw upside down, slide the dust shield towards the shoe and use the hex key to loosen the two blade securing bolts. 3.
-
Page 10: Operation
OPERATION The tool is recommended for use with a residual current device with a rated residual current of 30mA or less. Turning the Jigsaw On/off To turn on the jigsaw, squeeze the trigger. To turn off, release the trigger. The tool can be locked on for continuous use by squeezing the trigger fully and depressing the lock button, gently release both the lock on button and the trigger, the tool will continue to operate. - Page 11 OPERATION (cont.) Cutting Metal Your jigsaw can be used for cutting light gauge ferrous sheet and non-ferrous metals such as copper, brass, aluminium, etc. It is advisable when cutting sheet metal to clamp a backing sheet of soft wood or plywood to the work as this will enable you to obtain a clean cut without vibration and the possibility of tearing the metal.
-
Page 12: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Pack Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. PACK CONTENTS 1 x Jigsaw OZJS400A 1 x Allen key 1 x Blade 1 x Instruction manual... -
Page 14: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
