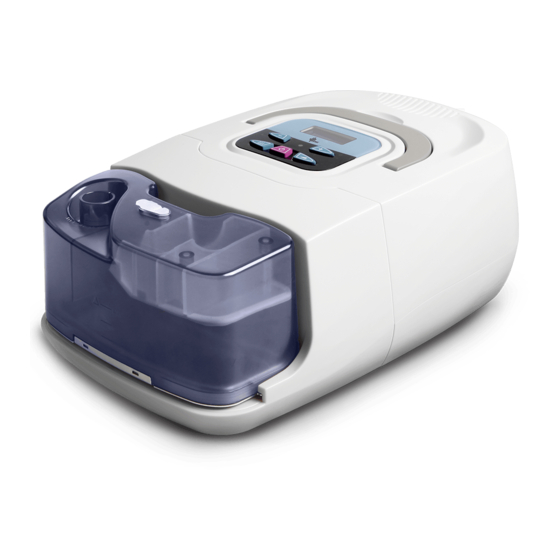

Service Manual for RESmart CPAP V1.0 2. Structure 2.1 Outer Illumination Medical Product Note (bottom) AC Inlet Communications Connector Filter Cap & Filter 2.2 Inner Construction See appendix A 2.3 Spare Part See appendix B...
3. Software 3.1 Instruction for Upgrading Device Software 1. Power off the RESmart CPAP/AutoCPAP device, then connect PC and the device via data cable. 2. Run the software “BMC RESmart Tools for Upgrade” from PC and display as below: a) Select the right Upgrade File (for example: version 1.28 for AutoCPAP is “Auto1.28-A.upd).
Service Manual for RESmart CPAP V1.0 Click “Upgrade” to start. If success, the right version number will be displayed on CPAP/AutoCPAP device screen when every power on. Note: If failed during upgrading, please repeat from above 1-4 steps. If “Error 08” displayed after software upgrading, it means unmatched software used (for example: apply AutoCPAP software to CPAP device).
Page 8
Service Manual for RESmart CPAP V1.0 device increases pressure to 20hPa(cmH2O), AD sampling data will appear on LCD. When LCD data displaying is stable, if pressure meter value is not 20, press ‘+/-’ button to adjust the pressure output. Until output pressure value is 20 and LCD displays stable, press ‘On/Off’ button to finish pressure calibration.
Service Manual for RESmart CPAP V1.0 4.2 Error List and Information Error Index Problem Causing Error 1 Over temperature inside Malfunction on main board Error 2 Motor stop Malfunction on motor or controller Error 3 Motor low speed Malfunction on motor...
Service Manual for RESmart CPAP V1.0 Appendices Appendix A: Device Configuration 1. Main device Fig. A - Main board (backside) Fig. B – Outlet (leftside) Hole #1 in Fig. B, connect to sensor YL via silicon rubber canal. Specified in Table 1: Fig.
Page 12
Service Manual for RESmart CPAP V1.0 Fig. C – Power PCBA (front side) Fig. D – Wire connecting on power PCBA Sockets figuration Fig. E – Power supply connecting...
Page 13
Service Manual for RESmart CPAP V1.0 Fig. F – Power supply to humidifier Connecting relationship: Part Fig. Back of device Fig. C: CN1 Fig. C: CN2 Fig. A: P24 Fig. F: Left Fig. F: Right Blower 8-pin plug Fig. A: PM...
Page 14
Service Manual for RESmart CPAP V1.0 2. Humidifier Fig. G – Humidifier PCBA (back side) Fig. H – Power supply to humidifier...
Page 15
Service Manual for RESmart CPAP V1.0 Fig. I – Heater PCBA Connecting relationship: Part Fig. Fig. G: P2 Fig. G: P1 Fig. H: Left Fig. H: Right Table 3...
Page 16
Service Manual for RESmart CPAP V1.0 Components Illumination 1. Device Inside Assembly Figure Insert humidifier locker on the shield bottom. Orange Black Insert humidifier power supply reed on the shield bottom as per Fig. E and F. Assembly the humidifier locker and button spring.
Page 17
Service Manual for RESmart CPAP V1.0 Clean up the wire. Assembly power PCBA in the socket and connect all plugs. Clean up the wire. Connect outlet to blower connector, fix by clip. Connect blower to connector and fix by clip.
Page 18
Service Manual for RESmart CPAP V1.0 Assembly the main board PCBA on fixing pole and make sure the clip clamps power PCBA. 2. Device Outside Assembly Figure Put handle in the socket on shield cover. Assembly handle fixing to handle and fix by screw (4×3mm*8mm).
Page 19
Service Manual for RESmart CPAP V1.0 Assembly shield cover on the bottom, adjust the position of outlet and make sure it is clamped in the right socket. Fix the shield by screws (4×M3*10mm). Stick four device pads. Put in filter and assembly the cover.
Page 20
Service Manual for RESmart CPAP V1.0 Assembly the scaleboard on the heater plane Scaleboard and fix by screw (3mm*8mm). As per Table 3, assembly heater PCBA and wires. Put the humidifier inner connector on the shield. Put on light window.
Service Manual for RESmart CPAP V1.0 Appendix B: Spare Part Configuration Name Figure Shield Cover Handle Handle Fixing Shield Bottom Humidifier Clip Humidifier Locker Humidifier Fixing Filter Cover Shield Back...
Page 22
Service Manual for RESmart CPAP V1.0 Outlet PCBA Fixing Infrared Window Panel Humidifier Outer Shield Humidifier Inner Shield Light Window Pole Platelet Humidifier Power Plug Humidifier Plug (left-up) Humidifier Plug (left-down)
Page 23
Service Manual for RESmart CPAP V1.0 Humidifier Plug (right-up) Humidifier Plug (right-down) Device Pad Blower Connector Humidifier Inner Connector Key Button Humidifier Scaleboard Heater Plane Spring Button Spring...
Page 24
Service Manual for RESmart CPAP V1.0 Spare Part List Part Name Unit Classify Main Board PCBA 20211151 PCBA Main Device Heater PCBA 20212-41 PCBA Humidifier Power Supply PCBA 20311101 PCBA Main Device Blower 40211 Assembly Main Device Heater Plane 45010101...
Page 25
Service Manual for RESmart CPAP V1.0 Humidifier Inner Connector 4012110901 Rubber Humidifier Screw-1 Screw Screw-2 Screw Sunk Screw Screw Main Device Filter Accessory Power Cord 33011101 Accessory Water Tank 45010401 Accessory Humidifier...
Page 26
