Page 1: User Manual
iVolve Full Face Mask User Manual 0123... -
Page 2: Table Of Contents
iVolve Full Face Mask User Manual V1.3 Table of Contents iVolve Full Face Mask ..............1 Intended Use ................. 1 Before Using the Mask ..............2 Parts of the iVolve Full Face Mask ..........4 Getting the Right Cushion Size ............. 5 Fitting the Mask ................ -
Page 3: Ivolve Full Face Mask

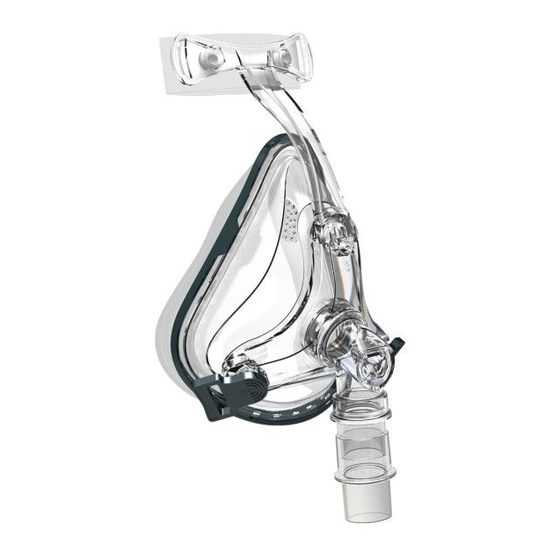

Full Face Mask User Manual V1.3 iVolve Full Face Mask Thank you for choosing BMC’s iVolve Full Face Mask (BMC-FM). The mask is comfortable, flexible and quiet. It is designed to minimize contact with your face, thus ensuring that you feel comfortable during therapy. -
Page 4: Before Using The Mask
iVolve Full Face Mask User Manual V1.3 Before Using the Mask WARNINGS The vent holes must be kept clear. Explanation of Warning: CPAP systems are intended to be used with special masks with connectors which have vent holes to allow continuous flow of air out of the mask. - Page 5 iVolve Full Face Mask User Manual V1.3 clinician to check if it is compatible with the flow generator. If it is used beyond technical specifications or used with incompatible devices, the seal and comfort of the mask may not be effective, optimum therapy may not be achieved, and leak, or variation in the rate of leak, may affect the function of the flow generator.
-
Page 6: Parts Of The Ivolve Full Face Mask
iVolve Full Face Mask User Manual V1.3 Parts of the iVolve Full Face Mask Parts of the iVolve Full Face Mask 4 / 16... -
Page 7: Getting The Right Cushion Size
iVolve Full Face Mask User Manual V1.3 Getting the Right Cushion Size The following drawing describes the different features of face and the length of the face (H) you need to measure. The masks are available in three different sizes for comfortable ... -
Page 8: Fitting The Mask
iVolve Full Face Mask User Manual V1.3 Fitting the Mask Hold the mask over Adjust the forehead pad Refer to “Adjusting the your face to find by pressing or pulling Forehead Pad” section to whether the angle of out the bulges on the adjust the forehead pad. - Page 9 iVolve Full Face Mask User Manual V1.3 Adjust the headgear Connect the main air Adjust the main frame until straps in the same way tubing to the swivel the mask is evenly positioned on your face. It until they are directly or through the comfortable and firm, optional vice-swivel for...
-
Page 10: Adjusting The Forehead Pad
iVolve Full Face Mask User Manual V1.3 Adjusting the Forehead Pad 3 2 1 “2” “3” “1” As the figure shows, the main frame has 3 Adjust the forehead pad by positions for fitting different people’s faces. Position pressing or pulling out the “2”... -
Page 11: Disassembling The Mask
iVolve Full Face Mask User Manual V1.3 Disassembling the Mask Detach the air tubing or Unclip the clips and Pull the forehead frame the optional vice-swivel. unthread the upper out of the main frame. headgear straps. It is not necessary to remove the clips from the headgear. -
Page 12: Cleaning The Mask At Home
iVolve Full Face Mask User Manual V1.3 Cleaning the Mask at Home Notes: The mask and headgear can only be cleaned through hand washing. The headgear may be washed without removing the clips. CAUTIONS Do not use solutions containing bleach, chlorine, alcohol, ... -
Page 13: Disinfecting The Mask Between Patients
iVolve Full Face Mask User Manual V1.3 Disinfecting the Mask between Patients The iVolve mask should be disinfected when used between patients. Detailed disinfection instructions are available in the Disinfection Instructions, and must be consulted before multi-patient use. Reassembling the Mask Align the cushion with Cover the cushion with Gently push the main... - Page 14 iVolve Full Face Mask User Manual V1.3 Attach the headgear Connect the main air straps threading tubing swivel them through the gaps directly or through the of the forehead frame optional vice-swivel for and clips. convenience detachment. 12 / 16...
-
Page 15: Troubleshooting
iVolve Full Face Mask User Manual V1.3 Troubleshooting Problem Possible reason Possible solution Mask won’t seal Mask may have been Carefully follow instructions properly or is fitted incorrectly or is in “Fitting the Mask” section. uncomfortable. incorrectly adjusted. Make sure the headgear is not over-tightened. -
Page 16: Technical Specifications
iVolve Full Face Mask User Manual V1.3 Technical Specifications Pressure–Flow Curve Mask Pressure (cmH Dead space is the empty volume of the mask up to the swivel. Dead Space The dead space of the mask varies according to cushion sizes Information but is less than 246 ml. -
Page 17: Storage
iVolve Full Face Mask User Manual V1.3 Storage Ensure that the mask is thoroughly clean and dry before storing it for any length of time. Store the mask in a dry place out of direct sunlight. Disposal The iVolve mask does not contain any hazardous substances and may be disposed of with your normal household refuse. -
Page 18: Limited Warranty
To exercise the rights under this warranty, contact the local authorized dealers. MANUFACTURER: BMC MEDICAL CO., LTD. Room 110 Tower A Fengyu Building, No. 115 Fucheng Road, Haidian, 100036 Beijing, PEOPLE’S REPUBLIC OF CHINA : +86-10-51663880 : +86-10-51663880 Ext.
