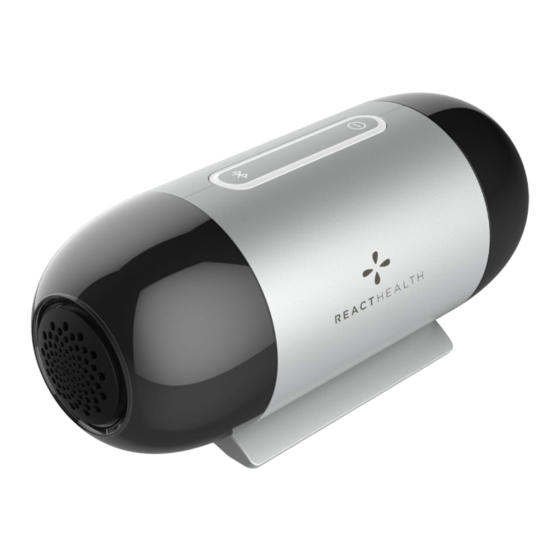

- Page 1 Luna TravelPAP ™ User Manual Auto CPAP System...
-
Page 2: Table Of Contents
Luna TravelPAP™ User Manual Table of Contents 1. Symbols ..............................1 1.1 Control Buttons ........................1 1.2 Device Symbols ........................1 2. Warning, Caution and Important Tips ....................2 3. Intended Use ............................2 4. Contraindications..........................3 5. Specifications ............................4 6. -
Page 3: Symbols
Federal Communications Insulated) Commission Approved AC Power Bluetooth logo ® DC Power Nonionizing radiation ≥ 12.5 Logo of BMC Medical IP22 Diameter, Dripping Co., Ltd. (15º tilted) Serial Number Medical Device Model Number Unique device identifier Date and Country Humidity limitation... -
Page 4: Warning, Caution And Important Tips
Luna TravelPAP™ User Manual 2. Warning, Caution and Important Tips WARNING! Indicates the possibility of injury to the user or operator. CAUTION! Indicates the possibility of damage to the device. IMPORTANT TIP! Indicates the possibility that such operation may affect the effectiveness or ease of use of the device. -
Page 5: Contraindications
Luna TravelPAP™ User Manual CAUTION! Federal law restricts this device to sale by or on the order of a physician. IMPORTANT TIPS! • Read and understand the entire user manual before operating this system. If you have any questions concerning the use of this system, contact your home care provider or physician. -
Page 6: Specifications
Luna TravelPAP™ User Manual IMPORTANT TIPS! • An irregular sleep schedule, alcohol consumption, obesity, sleeping pills, or sedatives may aggravate your symptoms. • Please use a mask which meets ISO 17510: 2015 and ISO 18562 series standard. CAUTION! • Contact your physician if symptoms of sleep apnea recur. Contact your physician if you have any questions concerning your therapy. - Page 7 Luna TravelPAP™ User Manual The A-weighted sound pressure level and sound power level When the device is working at the pressure of 10 cmH O, its sound pressure level and sound power level shall not be greater than the values in the following table: Sound Pressure Transport and...
-
Page 8: Available Therapies
Luna TravelPAP™ User Manual Bluetooth Qualification Information ® Product name: Luna TravelPAP™ DID: D062405 QDID: 154506 Bluetooth Module Featuring ® Technology Bluetooth Connection types GATT Frequency 2400 to 2483 MHz Max RF power output +4 dBm Operating range 10 m (Class 2) 6. - Page 9 Luna TravelPAP™ User Manual CPAP Continuous Positive Airway Pressure. Liters Per Minute. Indicates the item is a Medical Device. Obstructive Sleep Apnea. Patient Menu The display mode in which you can change patient-adjustable device settings, such as the starting pressure for the Ramp feature. Ramp A feature that may increase patient comfort when therapy is started.
-
Page 10: Model
Luna TravelPAP™ User Manual 8. Model Product Description Maximum Optional Optional Optional Model Product Work Work Accessory Accessory Accessory Contents Mode Pressure (cmH Main Carrying CPAP, Mask Luna TravelPAP™ device Case Adapter AutoCPAP *Download the free LightTrip (US) App on the Android or IOS platform 9. - Page 11 Luna TravelPAP™ User Manual All parts and accessories are not made with natural rubber latex. The expected service life of the device is five (5) years from first date of use, if the use, maintenance and cleaning are in strict accordance with the User Manual.
-
Page 12: System Features
Luna TravelPAP™ User Manual 10. System Features Start/Stop Button Bluetooth Button ® Device Status Light Air Outlet Fig. 10-1 Name Function Press this button to Start/Stop delivering air. Start / Stop Button The indicator light is white. Press this button to connect to Bluetooth wireless ®... - Page 13 Luna TravelPAP™ User Manual Filter Cap (Air Inlet) Fig. 10-2 Name Function Place the cap on the air filter, which is used to filter Filter Cap (Air Inlet) dust and pollen in the air entering the device. DC Inlet Fig. 10-3 Name Function DC Inlet...
-
Page 14: First Time Setup
Luna TravelPAP™ User Manual 11. First Time Setup 11.1 Download the LightTrip (US) App software Search and download the LightTrip (US) App on the App Store. Supported on both Android and IOS platforms. 11.2 Placing the Device Place the device on a firm, flat surface. The anti-skid pads installed at the bottom of the device is designed to stabilize the device. -
Page 15: Installing The Air Filter And Filter Cap
Luna TravelPAP™ User Manual 11.3 Installing the Air Filter and Filter Cap 1. Attach the air filter to the filter cap, as shown in Fig. 11-1. Filter Cap Air Filter Fig. 11-1 2. Install the filter cap containing the air filter to the main device, as shown in Fig. -
Page 16: Connecting To Power
Luna TravelPAP™ User Manual 11.4 Connecting to Power 1. Insert the plug of the power adapter into the DC Inlet of the device. DC Inlet Power Adapter Fig. 11-3 2. Plug the other end of the power adapter into the power outlet. WARNINGS! •... -
Page 17: Assembling The Tubing And Mask
Luna TravelPAP™ User Manual 11.5 Assembling the Tubing and Mask 1. Connect one end of the tube to the air outlet of the main device, as shown in Fig. 11-4. Fig. 11-4 2. Connect the other end of the tube to the mask according to the user manual for the mask. -
Page 18: Establish Connection Via Bluetooth ® Wireless Technology
Luna TravelPAP™ User Manual 11.6 Establish connection via Bluetooth wireless technology ® 1. Connect the device to a power supply. Press the Bluetooth button on ® the main device. The Bluetooth indicator light will flash. ® 2. Open the LightTrip (US) App, click the Bluetooth icon, and start to search ®... -
Page 19: Starting Treatment
Luna TravelPAP™ User Manual 11.8 Starting Treatment Press the Start/Stop Button or click on the icon in the LightTrip (US) App, the device will start delivering air. WARNINGS! • Be sure to follow your physician’s instructions on adjusting the settings. To order any accessories not included with this device, contact your home care provide. -
Page 20: Using The Ramp Function
Luna TravelPAP™ User Manual 12.4 Using the Ramp Function When the Ramp function is turned on, the pressure will gradually rise to the prescribed treatment pressure according to the preset ramp time from the initial pressure to help the patient fall asleep. The LightTrip (US) App displays a real time countdown of the remaining ramp time in minutes. -
Page 21: Software Upgrading
Luna TravelPAP™ User Manual Prompt Message Description When the remind cycle of air filter is set, the status light of device will flash if the preset remind cycle reaches but without Please Change replacing the air filter and reset remind cycle. If the main device Filter! is connected with LightTrip (US) App by Bluetooth wireless... -
Page 22: Cleaning And Maintenance
Luna TravelPAP™ User Manual CAUTIONS! • Please maintain the connection by Bluetooth wireless technology ® between the LightTrip (US) App and main device during firmware upgrading. • In order to ensure the best performance, it is recommended to keep the latest version of the LightTrip (US) App and device firmware. -
Page 23: Cleaning The Mask And Headgear
Luna TravelPAP™ User Manual 15.1 Cleaning the Mask and Headgear For details, refer to the cleaning instructions in the user manual for the mask. 15.2 Cleaning the Enclosure Wipe the surface of the device with a soft, slightly damp cloth. CAUTION! •... -
Page 24: Replacing The Air Filter
Luna TravelPAP™ User Manual 4. Clean the components with a soft bristled brush for one minute while soaking in detergent solution (see the table below). Pay particular attention to all crevices and cavities. Detergent Water temperature Alconox (diluted at 1%) Warm water (approx 113 to 140°... -
Page 25: Traveling With The Device
Luna TravelPAP™ User Manual Fig. 15-3 3. Remove and discard the old air filter. 4. Put the new air filter in the filter area, and then place the filter cap back properly. CAUTIONS! • To avoid material damage, do not place the spare air filter in direct sunlight, in a humid environment or at temperatures below the freezing point. -
Page 26: Traveling By Airplane
Luna TravelPAP™ User Manual 4. Airport Security including TSA: For convenience at security stations, there is a note on the bot- tom of the device stating that it is medical equipment. It may be helpful to bring this manual along with you to help security personnel understand the device. -
Page 27: Reordering
Luna TravelPAP™ User Manual 17. Reordering Contact your home care provider to order accessories or replacement filters. The device does not require routine servicing. WARNINGS! • If you notice any unexplained changes in the performance of the device, if it is making unusual or harsh sounds, if it has been dropped or mishandled, if the enclosure is broken, or if water has entered the enclosure, discontinue use. -
Page 28: Common Problems In Patients And Corresponding Solutions
Luna TravelPAP™ User Manual 19.1 Common Problems in Patients and Corresponding Solutions Problem Possible Cause Solution(s) The nose reacts to the airflow and cold. Due to Contact your physician, and Dry, cold, runny, and fast airflow, continue treatment unless the blocked nose;... - Page 29 Luna TravelPAP™ User Manual Problem Possible Cause Solution(s) Sinus middle Contact your physician Nasal, sinus, or ear pain inflammation immediately patient will feel uncomfortable when the treatment pressure It takes a maximum of four higher than 13 cmH weeks to adapt to pressurized Discomfort due to inability However, the treatment air.
-
Page 30: Common Problems In The Device And Corresponding Solutions
Luna TravelPAP™ User Manual 19.2 Common Problems in the Device and Corresponding Solutions Problem Possible Causes Solution(s) Take a few deep breaths with The Auto On/Off feature the mask on, and the device is enabled will start automatically Ensure that power Power is not connected adapter, and the device are... -
Page 31: Emc Requirements
Luna TravelPAP™ User Manual 20. EMC Requirements According to Clause 201.4.3.101 of ISO 80601 2 70:2020, sleep apnea breathing therapy equipment is considered to not have essential performance. Not with standing this fact, when the standard refers to essential performance as acceptance criteria, the static pressure shall be evaluated. The cables must be provided by REACT HEALTH. - Page 32 Luna TravelPAP™ User Manual Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
- Page 33 Luna TravelPAP™ User Manual Guidance and manufacturer’s declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
- Page 34 Luna TravelPAP™ User Manual Recommended separation distances between portable and mobile RF The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below,...
- Page 35 Luna TravelPAP™ User Manual Recommended separation distances between RF wireless communications equipment The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between RF wireless communications equipment and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 36 Luna TravelPAP™ User Manual WARNINGS! • This device should not be used in the vicinity of other electronic equipment such as diathermy, electrocautery and radio frequency identification (RFID), security systems (such as electromagnetic anti-theft systems and metal detectors), cellphone, transceiver or radio control products.
-
Page 37: Limited Warranty
T: (863) 226-6285 For additional information, please visit our website at: www.reacthealth.com icodeconnect.com is the web-based cloud solution for report generation and storage. MANUFACTURER: BMC Medical Co., Ltd. Room 10, 17F, Building 4, Huiya Plaza, No.16 Lize Road, Fengtai District, 100073 Beijing,... - Page 38 Luna TravelPAP User Manual ™ V2.0 I Issue date: July 20, 2023 I 391551...
- Page 39 391551...
Need help?
Do you have a question about the REACTHEALTH Luna TravelPAP and is the answer not in the manual?
Questions and answers

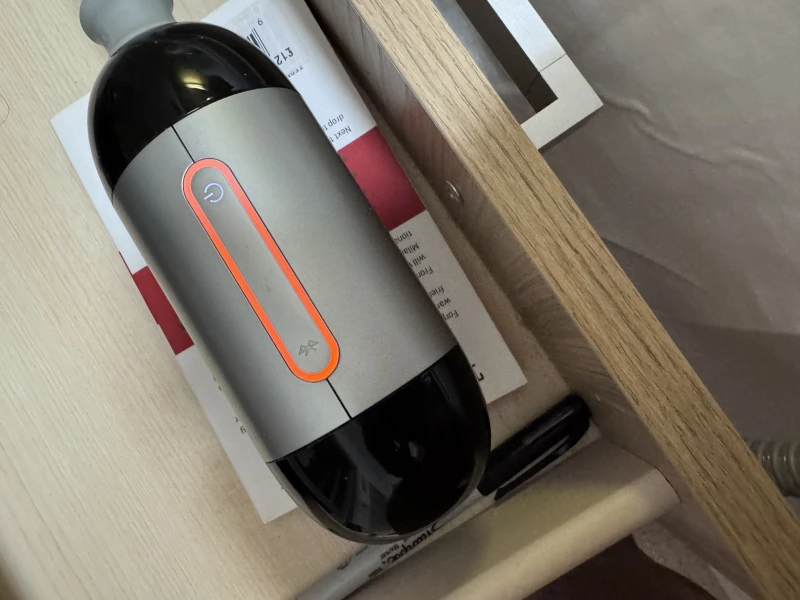

The top light flashes red what does this mean?
