  • Page 1 RESmart BPAP System Service Manual...

  • Page 2: Important

    If applying this manual on other purpose, the validation should be confirmed by BMC Medical Co., Ltd. Other wise, BMC Medical Co., Ltd. has no responsibility for the result. All information in this manual is protected by law and regulation. All copyrights are belongs to BMC Medical Co., Ltd.

  • Page 3: Table Of Contents

    Service Manual for RESmart BPAP V1.0 Table of Contents Important …................2 1. Introduction ..............4 1.1 Intended Use ..............4 1.2 Implement ..............4 2. Structure ................5 2.1 Outer Illumination............5 2.2 Inner Construction ............5 2.2 Spare Part ..............5 3.

  • Page 4: Introduction

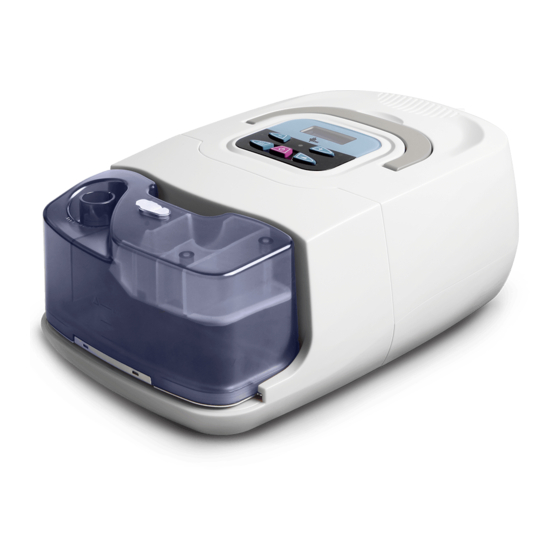

    Service Manual for RESmart BPAP V1.0 1. Introduction 1.1 Intended Use The RESmart BPAP system is a BIPAP (Bi-level Positive Airway Pressure) device. It is intended to provide non-invasive ventilation for patients with respiratory insufficiency or obstructive sleep apnoea (OSA), in the hospital or home.

  • Page 5: Structure

    Service Manual for RESmart BPAP V1.0 2. Structure 2.1 Outer Illumination Medical Product Note (bottom) AC Inlet Communications Connector Filter Cap & Filter 2.2 Inner Construction See appendix A 2.3 Spare Part See appendix B...

  • Page 6: Software

    1. Power off the RESmart BPAP device, then connect PC and the device via data cable. 2. Run the software “BMC RESmart Tools for Upgrade” from PC and display as below: a) Select the right upgrade file (for example: version 1.58 for BPAP is “BPAP1.58.upd).

  • Page 7: Hidden Function

    Service Manual for RESmart BPAP V1.0 4. After the device is turned on, the following will display: Click “Upgrade” to start. If success, the right version number will be displayed on BPAP device screen when every power on. Note: If failed during upgrading, please repeat from above 1-4 steps. If you select an incorrect upgrade file (for example: apply a CPAP upgrade file to a BPAP device), the device will display “Error 08”...
  • Page 8 Service Manual for RESmart BPAP V1.0 outputs pressure to 20hPa(cmH O), a number will appear on LCD. When the output pressure is stable, and the pressure meter value is not 20, press ‘+/-’ button to adjust the pressure output until the output pressure is 20 and LCD displays, press ‘On/Off’...

  • Page 9: Malfunction And Countermeasure

    Service Manual for RESmart BPAP V1.0 4. Malfunction and Countermeasure 4.1 Error Code Table and Information Error Index Problem Causing Error1 Over temperature inside Temperature sensor Malfunction on main board fault Error2 Motor stop Malfunction on motor or main board Error3 Motor low speed Malfunction on motor or main board...

  • Page 10: Malfunction Determination

    Service Manual for RESmart BPAP V1.0 Malfunction Determination...

  • Page 11: Appendices

    Service Manual for RESmart BPAP V1.0 Appendices Appendix A: Device Configuration 1. Main device Fig. A - Main board (backside) Fig. B – Outlet (leftside) Hole #1, 2 and 3 in Fig. B, connect to sensor YL and LL via silicon rubber canal. Specified in Table 1: Fig.
  • Page 12 Service Manual for RESmart BPAP V1.0 Fig. C – Power PCBA (front side) Fig. D – Wire connecting on power PCBA Sockets figuration Fig. E – Power supply connecting...
  • Page 13 Service Manual for RESmart BPAP V1.0 Fig. F – Power supply to humidifier Orange Black Right Left Connecting relationship: Part Fig. Back of device Fig. C: CN1 Fig. C: CN2 Fig. A: P24 Fig. F: Left Fig. F: Right Blower 8-pin plug Fig.
  • Page 14 Service Manual for RESmart BPAP V1.0 2. Humidifier Fig. G – Humidifier PCBA (back side) Fig. H – Power supply to humidifier Right Left Orange Black...
  • Page 15 Service Manual for RESmart BPAP V1.0 Fig. I – Heater PCBA Connecting relationship: Part Fig. Fig. G: P2 Fig. G: P1 Fig. H: Left Fig. H: Right Table 3...
  • Page 16 Service Manual for RESmart BPAP V1.0 Components Illumination 1. Device Inside Assembly Figure Insert humidifier locker on the shield bottom. Insert humidifier power supply reed on the shield bottom as per Fig. E and F. Assembly the humidifier locker and button spring.
  • Page 17 Service Manual for RESmart BPAP V1.0 Assembly the foam pad (non-woven side up), the front and back foam blocks of the blower unit in the shied bottom. Align the location column of blower unit to the location port in the front block, Place the blower unit right between the front and back foam blocks in the shield bottom and lay...
  • Page 18 Service Manual for RESmart BPAP V1.0 1. Connect the air hole of the pressure sensor YL on the main board with bottom hole(hole#1) in the front of the blower outlet with a canal of 12cm in length and 2mm in inner-diameter.
  • Page 19 Service Manual for RESmart BPAP V1.0 2. Device Outside Assembly Figure Put handle in the socket on shield cover. Assembly handle fixing to handle and fix by screw (4×3mm*8mm). Assembly and fix the panel. Put on the key button. Assembly the infrared window, and put the shield cover on the bottom, adjust the Infrared window position of outlet and make sure it is clamped...
  • Page 20 Service Manual for RESmart BPAP V1.0 Fix the shield by screws (4×M3*10mm). Device pad Stick four device pads. Put in filter and assembly the cover. Plug (up) Put on all plugs if necessary (without humidifier). Plug (down) Power plug...
  • Page 21 Service Manual for RESmart BPAP V1.0 3. Humidifier Assembly Figure As per Fig. H, assembly the heater plane and wire. Fix them by screw (3mm*8mm). Put spring on each of three poles on heater plane. Assembly the scaleboard on the heater plane Scaleboard and fix by screw (3mm*8mm).
  • Page 22 Service Manual for RESmart BPAP V1.0 Appendix B: Spare Part Configuration Name Figure Shield Cover Handle Handle Fixing Shield Bottom Humidifier Clip Humidifier Locker Humidifier Fixing...
  • Page 23 Service Manual for RESmart BPAP V1.0 Filter Cover Shield Back Outlet PCBA Fixing Infrared Window Panel Humidifier Outer Shield Humidifier Inner Shield Light Window Pole Platelet Humidifier Power Plug...
  • Page 24 Service Manual for RESmart BPAP V1.0 Humidifier Plug (left-up) Humidifier Plug (left-down) Humidifier Plug (right-up) Humidifier Plug (right-down) Device Pad Humidifier Inner Connector Key Button Humidifier Scaleboard Heater Plane Spring Button Spring...
  • Page 25 Service Manual for RESmart BPAP V1.0 Spare Part List Part Name Unit Classify Main Board PCBA 140022 PCBA Main Device Heater PCBA 140017 PCBA Humidifier Power Supply PCBA 270031 PCBA Main Device Blower Unit 120069 Assembly Main Device Heater Plane 120006 Assembly Humidifier...
  • Page 26 Service Manual for RESmart BPAP V1.0 Screw-M3*10 240009 Screw Screw-M3*8 240010 Screw Main Device Filter 240014 Accessory Power Cord 110099 Accessory...
