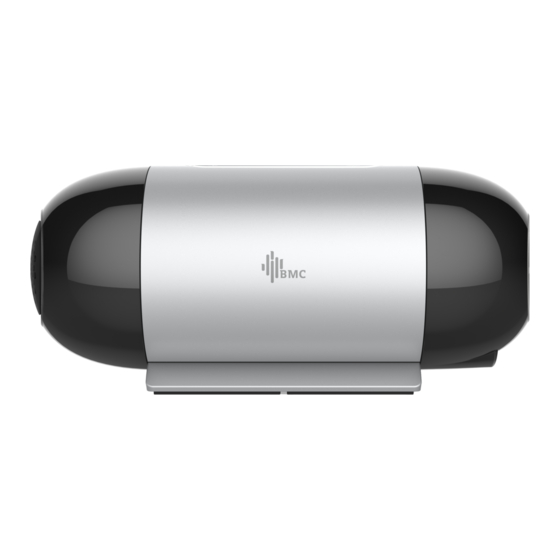

- Page 1 User Manual Sleep Apnea Therapy Device and Accessories Auto CPAP System M1 Mini 0123...
-
Page 2: Table Of Contents
M1 Mini User Manual Table of Contents 1. Symbols ··················································································· 1 1.1 Control Buttons ······························································· 1 1.2 Device Symbols ······························································· 1 2. Warning, Caution and Important Tip ················································ 2 3. Intended Use ············································································· 2 4. Contraindications ········································································ 3 5. Specifications ············································································ 4 6. - Page 3 M1 Mini User Manual 18. Cleaning and Maintenance ························································· 20 18.1 Cleaning the Mask and Headgear ······································ 21 18.2 Cleaning the Enclosure··················································· 21 18.3 Cleaning the Tubing ······················································ 21 18.4 Replacing the Air Filter ··················································· 21 19. Traveling with the Device ·························································· 22 19.1 Traveling ····································································...
-
Page 4: Symbols
• The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BMC is under license. Other trademarks and trade names are those of their respective owners. 1 / 32... -
Page 5: Warning, Caution And Important Tip
Warnings, Cautions, and Important Tips appear throughout this manual as they apply. 3. Intended Use The M1 Mini Auto CPAP system is a CPAP (Continuous Positive Airway Pressure) device designed for the treatment of adults Obstructive Sleep Apnea (OSA) only, either in the hospital or at home. -
Page 6: Contraindications
M1 Mini User Manual CAUTION! • The device is restricted to sale by or on the order of a physician. IMPORTANT! • Read and understand the entire user manual before operating this system. If you have any questions concerning the use of this system, contact your home care provider or health care professional. -
Page 7: Specifications
M1 Mini User Manual CAUTION! • Contact your health care professional if symptoms of sleep apnea recur. Contact your health care professional if you have any questions concerning your therapy. 5. Specifications Device Size Dimensions: 159 mm × 66 mm × 72 mm Weight: <... - Page 8 Filtration efficiency: > 20% for 10 micron Material: Non-woven fabric and Polyester Aircraft use BMC confirms that the device meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 20, category T and section 21, category M) for all phases of air travel. Bluetooth authentication information...
-
Page 9: Available Therapies
M1 Mini User Manual Bluetooth module Technology used: Bluetooth Connection types: GATT Frequency: 2400 to 2483 MHz Max RF power output: +4 dBm Operating range: 10 m (Class 2) 6. Available Therapies The device delivers the following therapies: CPAP – Delivers Continuous Positive Airway Pressure; CPAP maintains a constant level of pressure throughout the breathing cycle. -
Page 10: Model
M1 Mini User Manual Patient Menu The display mode in which you can change patient-adjustable device settings, such as the starting pressure for the Ramp feature. Ramp A feature that may increase patient comfort when therapy is started. It can reduce pressure and then gradually increase the pressure to the prescription setting so the patient can fall asleep more comfortably. -
Page 11: Package Contents
• The device should only be used with the mask and accessories manufactured or recommended by BMC or with those recommended by your prescribing physician. The use of inappropriate masks and accessories may affect the performance of the device and impair the effectiveness of therapy. -
Page 12: System Features
M1 Mini User Manual 10. System Features Start/Stop Button Bluetooth Button Device Status Light Air Outlet Fig. 10-1 Name Function Press this button to Start / Stop delivering air. Start/Stop Button The indicator light is white. Press this button to control Bluetooth status:... -
Page 13: First Time Setup
M1 Mini User Manual DC Inlet Fig. 10-3 Name Function DC Inlet An inlet for the DC power supply. 11. First Time Setup 11.1 Download LightTrip App software Search and download LightTrip App in the App store. Support Android platform and IOS platform. -
Page 14: Installing The Air Filter And Filter Cap
M1 Mini User Manual • Make sure that bedding, curtains, or other items are not blocking the filter or vents of the device. • Keep pets, pests or children away from the device and avoid small objects being inhaled or swallowed. -
Page 15: Assembling The Tubing And Mask
M1 Mini User Manual DC Inlet Power Adapter Fig. 11-3 WARNINGS! • The device is powered on for use when the power adapter is connected. The Button turns the blower On / Off. • Use of the device at an AC voltage beyond the stated range (see Section 5 "AC Power Consumption") may damage the device or cause device failure. - Page 16 - Use the accompanying tube and mask provided by BMC. - Do not wear the mask for more than a few minutes while the device is not operating. - Use only masks with vent holes. Do not block or try to seal the vent holes in the exhalation port.
-
Page 17: Using Oxygen With The Device
• Oxygen supports combustion. Keep the device and the oxygen container away from heat, open flames, any oily substances, or other sources of ignition. DO NOT smoke in the area near M1 Mini or the oxygen container. • Sources of oxygen should be located more than 1 m from the device. -
Page 18: Starting Treatment
• DO NOT connect any ancillary equipment to the device unless recommended by BMC or your physician. If you suffer from chest discomfort, shortness of breath, stomach bloating, or severe headache when using the device, contract your physician or qualified medical personnel immediately. -
Page 19: Turning The Device Off
(full-face mask), Nasal (nasal mask), and Pillow (nasal pillow Mask Nasal/ mask). But the patient can choose other suitable masks as Type Pillow/ well. When selecting masks other than the above three Other types of BMC masks, the patient can identify the masks as other. 16 / 32... -
Page 20: Accessories Setting
M1 Mini User Manual None/ Moisture Ordinary It can be selected according to the moisture exchanger type Exchanger edition/ of mask. Type Enhanced edition 13.2.2 Accessories setting Option Range Description Off/7 days/14 days/ Set the air filter remind cycle, it will remind... -
Page 21: Prompt
M1 Mini User Manual 14. Prompt Prompt Description Message If the device is accidentally disconnected from power when it is delivering air and the main device is connected with LightTrip App by Bluetooth, a prompt of "Power Failure!!!" will appear in LightTrip App. -
Page 22: Introduction Of "Report
M1 Mini User Manual 15. Introduction of "Report" Users can select to view the usage reports generated in a certain day or a certain period of time according to your needs. Users can use shortcut keys to quickly query or customize the time period query. -
Page 23: Software Upgrading
• If you use ozone or other cleaning and disinfection methods that are not recommended by BMC, BMC will not be able to verify the safety or performance of the equipment. CAUTIONS! • Overheating of the materials could lead to early fatigue of these materials. -
Page 24: Cleaning The Mask And Headgear
M1 Mini User Manual and its accessories. Liquid soap containing the humidifying agent or antimicrobials should not be used either. These solutions may harden cleaned materials or reduce their life. • Do not clean or dry the device and its accessories when the temperature is higher than 80°C (176°F). -
Page 25: Traveling With The Device
19. Traveling with the Device 19.1 Traveling (1) Use the BMC carrying case to carry the device and accessories along with you. Do not put them in your checked baggage. (2) The device operates on power supplies of 100 - 240 V and 50 / 60 Hz, and is suitable for use in any country in the world. -
Page 26: Transferring The Device To Another Patient
22. Technical Support Please contact BMC directly if you need the circuit diagram of the device and the list of components for certain purposes such as maintenance or connection to other equipment. BMC will provide the circuit diagram and / or other technical documents in whole or in part according to your needs. -
Page 27: Troubleshooting
M1 Mini User Manual 24. Troubleshooting The table below lists common problems you may have with the device and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider. 24.1 Common Problems in Patients and Corresponding Solutions... - Page 28 M1 Mini User Manual Problem Possible Cause Solution (s) patient will feel Discomfort uncomfortable when It takes a maximum of four weeks treatment pressure is higher than to adapt to pressurized air. inability 13 hPa. However, the treatment Relax and breathe through the...
-
Page 29: Common Problems In The Device And Corresponding Solutions
M1 Mini User Manual 24.2 Common Problems in the Device and Corresponding Solutions Problem Possible Cause Solution(s) Take a few deep breaths with the The Auto On / Off feature is mask on, and the device will start enabled automatically... -
Page 30: Emc Requirements
M1 Mini User Manual 25. EMC Requirements The cables must be provided by BMC. The information of each cable is as follows: Power adapter: 1800 mm ± 45 mm, unshielded Tubing: 1800 mm ± 10%, unshielded Guidance and manufacturer's declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. - Page 31 M1 Mini User Manual Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
- Page 32 M1 Mini User Manual Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent...
- Page 33 M1 Mini User Manual Recommended separation distances between RF wireless communications equipment The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent...
- Page 34 • Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the M1 Mini, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
-
Page 35: Limited Warranty
(1) year for main device and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. If the product fails to perform in accordance with the product specifications, BMC Medical Co., Ltd. - Page 36 391263...
