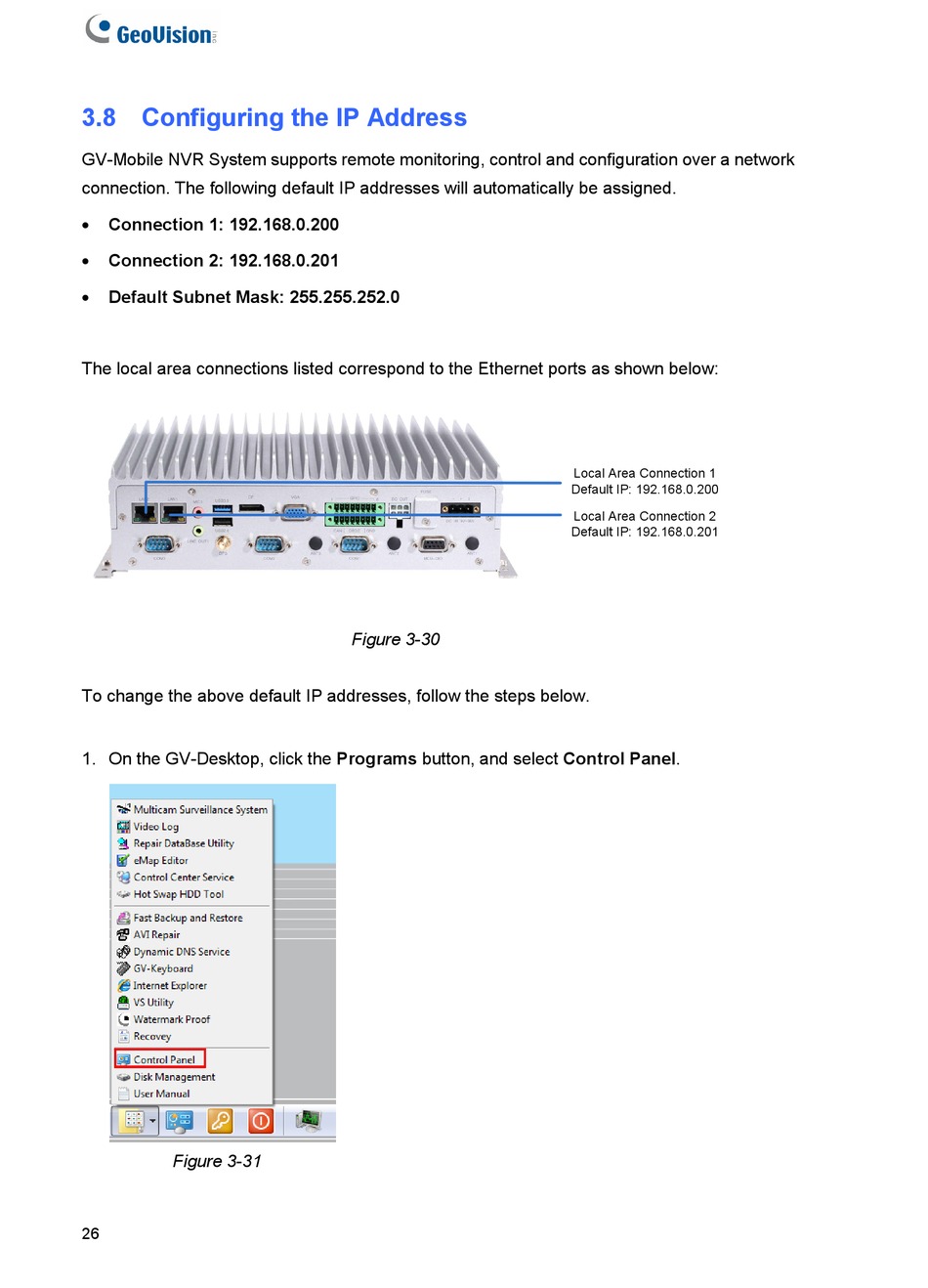

3.8 Configuring the IP Address

GV-Mobile NVR System supports remote monitoring, control and configuration over a network
connection. The following default IP addresses will automatically be assigned.

Connection 1: 192.168.0.200

Connection 2: 192.168.0.201

Default Subnet Mask: 255.255.252.0
The local area connections listed correspond to the Ethernet ports as shown below:
To change the above default IP addresses, follow the steps below.
1. On the GV-Desktop, click the Programs button, and select Control Panel.
Figure 3-31
26
Figure 3-30
Local Area Connection 1
Default IP: 192.168.0.200
Local Area Connection 2
Default IP: 192.168.0.201
