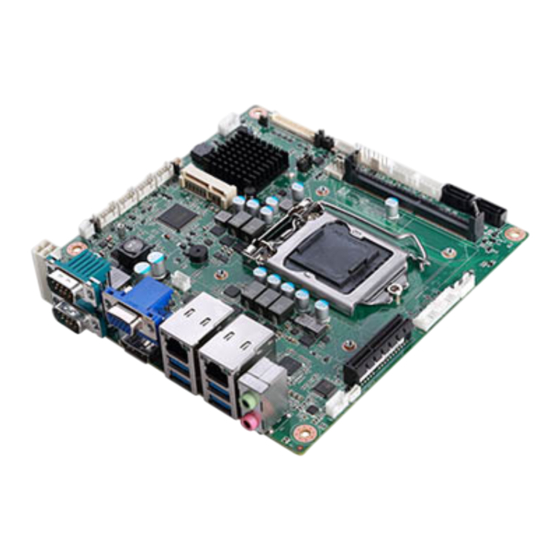

PPC-MB-8260AE (Intel® Core™ i7/i5/i3/Pentium/
Celeron LGA 1151 Mini-ITX with DP/VGA, 5 COM,
6 USB, Dual LAN, PCIe x4, Mini PCIe, DDR4)
Startup Manual
Packing List
Before card installation, ensure that the following items
have been included in your shipment:
1. 1 x PPC-MB-8260AE Intel® Core™ i7/i5/i3/Pentium/
Celeron LGA1151 mini-ITX motherboard
2. 4 x COM cable (2 x 5 pin)
3. 1 x SATA cable
4. 1 x Startup manual
5. 1 x Warranty card
6. 1 x Thermal grease
7. 14 x Screws for COM port
8. 1 x Packet screws for mini PCIe
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
For the detailed contents of PPC-MB-8260AE,
Note 1:
please refer to the latest product information
provided on the Advantech website (PPC-6151C
model).
Note 2:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded from
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information about this or other Advantech
products, please visit our website at
http://www.advantech.com
For technical support and service, please visit our
support website at
http://support.advantech.com
This manual is for PPC-MB-8260AE, Rev. A1.
Part No. 2003826001
Printed in China
Edition 2
October 2016
Specifications
Selected
PPC-MB-8260AE
M/B
i7-
i5-
6700TE
6500TE
Quad
Quad
Core
Core
CPU
3.4GHz
3.3GHz
8MB
6MB
35W
35W
Chipset
H110
1 x 260-pin SODIMM DDR4, 2133 MHz,
Memory
up to 16 GB
Network
2 x 10/100/1000 Mbps Ethernet, Intel 211
(LAN)
x 2
1 x RS232/422/485,1 x RS232
1 x DP
I/O Port
1 x VGA
4 x USB (3.0)
1 x Line-Out,1 x Mic-In
3 x RS232
1 x GPIO (8 channels)
1 x Speaker connector
Internal
1 x LED connector
Connector
2 x USB 2.0
1 x LVDS connector
1 x Touch connector
2 x SATA connector
Watchdog
255 Timer levels, configurable using
Timer
software
1 x Full-size mSATA or mini PCIe, 1 x PCIe
Expansion
x4 slot
Dimensions
170 x 170 mm (6.69 x 6.69")
OS
Microsoft® Windows 7 (32/64 bit)/
Support
Windows 8.1 (64 bit)/Windows 10 (64 bit)
PPC-MB-8260AE Startup Manual 1
i3-
Pentium
Celeron
6100TE
G4400TE
G3900TE
Dual
Dual
Dual
Core
Core
Core
2.3GHz
2.7GHz
2.4GHz
2MB
4MB
3MB
35W
35W
35W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-MB-8260AE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech PPC-MB-8260AE

Summary of Contents for Advantech PPC-MB-8260AE

  • Page 1 Specifications Before card installation, ensure that the following items have been included in your shipment: Selected PPC-MB-8260AE 1. 1 x PPC-MB-8260AE Intel® Core™ i7/i5/i3/Pentium/ Celeron LGA1151 mini-ITX motherboard Pentium Celeron 2. 4 x COM cable (2 x 5 pin) 6700TE...

  • Page 2: Jumpers And Connectors

    2 x USB 2.0 Pin Header PCIex4_1 PCIe x4 Slot Connector AMP1 Audio Amplifier Output Connector DIMMA1 DDR4 SODIMM Socket CN11: General Purpose I/O Pin Header CPU1 CPU Socket Definition Mini-PCIe1 MSATA and Mini PCIe Socket GPIO4 GPIO0 2 PPC-MB-8260AE Startup Manual...

  • Page 3: Jumper Settings

    CPUFAN1: CPU Fan Power Connector COM Pin 9 Power Select (COM 1 & 2) Definition LVDS Resolution Select POWER ATX/AT Select (JP1) SPEED (1-2) P1 (2-3) P2 ATX (default) CN18 ~ 19: SATA Power Connector Definition +V3.3 +V12 PPC-MB-8260AE Startup Manual 3...
  • Page 4 COM 2/1 12V P17/P18 LCD Power Select (JP3) (1-2) P7 (2-3) P8 +V3.3 (default) LVDS Resolution Select (JP7) Enable Power Select (JP4) (1-2)/(5-6)/ 1024*768 (24 bit) (7-8) P19 (1-2) P9 (1-2)/(7-8) 1280*1024 (24 bit) (2-3) P10 +V3.3 (default) 4 PPC-MB-8260AE Startup Manual...

  • Page 5: Board Layout: Jumper And Connector Locations

    2. Once inserted, gently press the memory module into degree angle, as shown below. Ensure that the gold the slot until the tabs snap into place, securing the fingers of the module are fully inserted into the slot. module in position. 45° PPC-MB-8260AE Startup Manual 5...

  • Page 6: Bios Setup Program

    “Advanced” tab. 1.4 LAN PXE Mode Selection 1. Access the “Network Stack Configuration” item from the “Advanced” tab. 2. Select “Serial Port 2 Configuration”. The COM 2 mode can be configured via the “Device Mode” item. 6 PPC-MB-8260AE Startup Manual...

  • Page 7: Graphics Configuration

    “Advanced” tab. Users can select “UEFI only” or “Legacy only” for “Boot Option Filter” configuration. 3. Select the “LCD Control” item. 2. Configure the Video and Storage item settings to match with the Boot Option Filter configuration. PPC-MB-8260AE Startup Manual 7...
  • Page 8 1.8 AT and ATX Setting In the “Chipset” tab click the “PCH-IO Configuration” item to access the “Restore AC Power Loss” item. Set the item configuration to “Power On”, “Power Off”, or “Last State”. 8 PPC-MB-8260AE Startup Manual...
