ADVANTECH

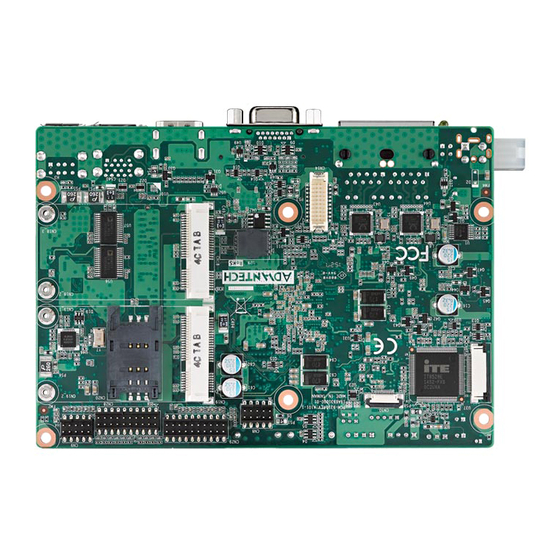

PCM-9310
The information contained in this document has been carefully researched and is, to the best
of our knowledge, accurate. However, we assume no liability for any product failures or
damages, immediate or consequential, resulting from the use of the information provided
herein. Our products are not intended for use in systems in which failures of product could
result in personal injury. All trademarks mentioned herein are property of their respective
owners. All specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-9310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech PCM-9310

Summary of Contents for Advantech PCM-9310

  • Page 1 Manual ADVANTECH PCM-9310 The information contained in this document has been carefully researched and is, to the best of our knowledge, accurate. However, we assume no liability for any product failures or damages, immediate or consequential, resulting from the use of the information provided herein.
  • Page 2 User Manual PCM-9310 Intel® Celeron N3160/N3060 SoC, 3.5" SBC, DDR3L, VGA, HDMI, 48-bit LVDS/eDP*, 2GbE, Mini PCIe, mSATA, SUSI API...
  • Page 3 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.

  • Page 5: Declaration Of Conformity

    Discard used batteries according to the manufacturer's instruc- tions. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...

  • Page 6: Packing List

    Packing List Before you begin installing your card, please make sure that the following materials have been shipped:  1 x PCM-9310 SBC  1 x SATA Cable 30cm (p/n: 1700006291)  1 x SATA Power Cable 35cm (p/n: 1700018785) ...
  • Page 7 PCM-9310 User Manual...

  • Page 8: Table Of Contents

    Electrical Specifications ..............4 1.2.5 Environmental ................4 Block Diagram................... 5 Board layout: dimensions................5 Figure 1.1 PCM-9310 Mechanical Drawing (Top Side) ....5 Figure 1.2 PCM-9310 Mechanical Drawing (Bottom Side) ..6 Figure 1.3 PCM-9310 Mechanical Drawing (Coastline)....6 Chapter Installation..........7 Jumpers &...
  • Page 9 System Assignments......67 System I/O Ports..................68 Table B.1: System I/O Ports ............68 1st MB Memory Map................68 Table B.2: 1st MB Memory Map ..........68 Interrupt Assignments ................69 Table B.3: Interrupt assignments..........69 PCM-9310 User Manual viii...

  • Page 10: Chapter 1 General Information

    Chapter General Information This chapter gives background information on the PCM-9310. Sections include:  Introduction  Specifications  Block diagram  Board layout and dimensions...

  • Page 11: Introduction

    Introduction PCM-9310 is designed using MI/O Extension form factor (compact series, 146 x 102 ® ® mm) and powered by the latest generation of Intel Celeron N3160 and N3060 pro- cessors which have low power features but also good performance computing, espe- cially for multimedia capabilities compared to earlier generations.
  • Page 12  BIOS – AMI UEFI 64 Mbit, BIOS for 64 or 32bit is different, default version is for 64bit – Default setting is UEFI that can be done by T-P/N : This specification is supported upon request. PCM-9310 User Manual...

  • Page 13: Os Support

    OS support PCM-9310 supports Win10, Win8.1, WES7, Linux kernel 4.1 Win7 only supports Legacy mode and Win8 for UEFI mode. For further information about OS support of PCM-9310, please visit Advantech website: http://support.advantech.com.tw/ or contact the technical support center. 1.2.3 Mechanical Specifications ...

  • Page 14: Block Diagram

    2 x GbE: RTL8111 PCIe 4 x USB2.0 USB2 ALC892 Audio In/Out 2 x RS-232 Super I/O USB2 Full-size Mini PCIe 2 x RS-232/422/485 PCIe 8bit GPIO iManager SMBus/ I Board layout: dimensions Figure 1.1 PCM-9310 Mechanical Drawing (Top Side) PCM-9310 User Manual...

  • Page 15: Figure 1.2 Pcm-9310 Mechanical Drawing (Bottom Side)

    Figure 1.2 PCM-9310 Mechanical Drawing (Bottom Side) Figure 1.3 PCM-9310 Mechanical Drawing (Coastline) PCM-9310 User Manual...

  • Page 16: Chapter 2 Installation

    Chapter Installation This chapter explains the setup procedures of the PCM-9310 hard- ware, including instructions on setting jumpers and connecting peripherals, switches and indica- tors. Be sure to read all safety pre- cautions before you begin the installation procedure.

  • Page 17: Jumpers & Switches

    Jumpers & Switches The PCM-9310 has a number of jumpers that allow you to configure your system to suit your application. The table below lists the functions of the various jumpers. Table 2.1: Jumpers & Switches AT & ATX LCD Power...

  • Page 18: Locating Connectors

    Locating Connectors CN31 CN33 CN16 CN32 CN24 CN21 CN22 CN23 CN26 CN27 CN15 CN11 CN13 CN25 CN17 Figure 2.1 PCM-9310 Connector Locations (Top Side) CN28 CN29 CN20 CN19 CN18 CN14 Figure 2.2 PCM-9310 Connector Locations (Bottom Side) PCM-9310 User Manual...

  • Page 19: Setting Jumpers

    Generally, you simply need a standard cable to make most connections. 2.4.1 AT & ATX (J1) AT & ATX Part Number 1653003201 Footprint HD_3x2P_79_D Description PIN HEADER 3x2P 2.0mm 180D(M) DIP 21N22050 Setting Function (1-2)* (N/A) PCM-9310 User Manual...

  • Page 20: Lcd Power (J2)

    PIN HEADER 2x2P 2.00mm 180D(M) SMD 21N22050 Setting Function (1-2)* 3.3V High for VCON on LVDS (1-3) Low for VCON on LVDS +3.3V * This specification is the default setting. ** This specification is supported upon request. PCM-9310 User Manual...
  • Page 21 PCM-9310 User Manual...

  • Page 22: Chapter 3 Ami Bios Setup

    Chapter AMI BIOS Setup...

  • Page 23: Introduction

    AMIBIOS has been integrated into a plethora of motherboards for decades. With the AMIBIOS Setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the PCM-9310 BIOS setup screens.

  • Page 24: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU‘s system status is valid.

  • Page 25: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the PCM-9310 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 26 OS.  ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.  Lock Legacy Resources Enables or Disables Lock of Legacy Resources PCM-9310 User Manual...
  • Page 27 This item allows users to switch Backlight Control for PWM or DC mode.  Power Saving Mode This item allows users to set board’s power saving mode when off.  Watch Dog Timer This item allows users to select EC watchdog timer. PCM-9310 User Manual...
  • Page 28 3.2.2.3 Trusted Computing  Trusted Computing Enables or Disables BIOS support for security device. O.S. will not show Secu- rity Device. TCG EFI protocol and INT1A interface will not be available. PCM-9310 User Manual...
  • Page 29 3.2.2.4 S5 RTC Wake Settings  Wake system from S5 Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified. PCM-9310 User Manual...
  • Page 30 Serial Port Console Redirection  Console Redirection This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS).  Console Redirection This item allows users to configuration console redirection detail settings. PCM-9310 User Manual...
  • Page 31 If bi-direction is enabled, external agents can drive PROCHOT# to throt- tle the processor.  Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.  Power Technology Enable the power management features. PCM-9310 User Manual...
  • Page 32 3.2.2.7 PPM Configuration  CPU C state Report Enable/Disable CPU C state report to OS.  Max CPU C-state This option controls Max C state that the processor will support. PCM-9310 User Manual...
  • Page 33 SATA Interface Speed SATA Interface Speed Support Gen1, Gen2 or Gen3.  Aggressive LPM Support Enable PCH to aggressively enter link power state.  Port 1 / Port 2 Enable / Disable Serial ATA Port 1 / Port 2. PCM-9310 User Manual...
  • Page 34 Space (Only if System Supports 64bit PCI Decoding).  Don’t Reset VC-TC Mapping If system has Virtual Channels, Software can reset Traffic Class mapping through Virtual Channels, to it’s default state. Setting this option to Enabled will not modify VC Resources. PCM-9310 User Manual...
  • Page 35 3.2.2.10 Network Stack Configuration  Network Stack Enable/Disable UEFI Network Stack. PCM-9310 User Manual...
  • Page 36 Storage Controls the execution of UEFI and Legacy Storage OpROM.  Video Controls the execution of UEFI and Legacy Video OpROM.  Other PCI devices Determines OpROM execution policy for devices other than Network, Storage, or Video. PCM-9310 User Manual...
  • Page 37 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. PCM-9310 User Manual...
  • Page 38 3.2.2.13 Security Configuration  TXE HMRFPO Disable  TXE Firmware Update  TXE EOP Message Send EOP Message Before Enter OS. PCM-9310 User Manual...
  • Page 39 Set Parameters of Serial Port 1 (COMA).  Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB).  Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC).  Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). PCM-9310 User Manual...

  • Page 40: Chipset Configuration

    3.2.3 Chipset Configuration  North Bridge Details for North Bridge items.  South Bridge Details for South Bridge items. PCM-9310 User Manual...
  • Page 41 Graphics Power Management Control Graphics Power Management Control Options.  Memory Configuration Options MRC EV Setup Option.  AMI Graphic Output Protocol Policy User Select Monitor Output by Graphic Output Protocol.  Max TOLUD Maximum Value of TOLUD. PCM-9310 User Manual...
  • Page 42 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.  DVMT Total Gfx Mem Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device.  Aperture Size Select the Aperture Size.  GTT Size Select the GTT Size. PCM-9310 User Manual...
  • Page 43 3.2.3.3 Graphics Power Management Control  RC6 Render Standby) Check to enable render standby support.  Power Meter Lock Enable/Disable Power Meter Lock. PCM-9310 User Manual...
  • Page 44 Enable or disable DRAM PM5 PUNIT configuration.  DDR3 2N Mode Set the DDR3 mode to 2N. 1N mode is used by default.  MRC Fast Boot Enable/Disable MRC fast Boot. Forces MRC training to occur when disable.  Scrambler Enable/Disable Scrambler. PCM-9310 User Manual...
  • Page 45 3.2.3.5 AMI Graphic Output Protocol Policy  LVDS Panel Type Select LCD Panel Type. PCM-9310 User Manual...
  • Page 46 Azalia Configuration Azalia HD Audio Options.  USB Configuration USB Configuration Settings.  PCI Express Configuration PCI Express Configuration settings.  Restore AC Power Loss Select AC power state when power is re-applied after a power failure. PCM-9310 User Manual...
  • Page 47  RTC Lock Enable or disable bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.  BIOS Lock Enable/Disable the BIOS Lock Enable feature.  Global SMI Lock Enable or Disable SMI Lock. PCM-9310 User Manual...
  • Page 48 3.2.3.8 Azalia Configuration  Audio Controller Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled.  Azalia HDMI Codec Enable/Disable internal HDMI codec for Azalia. PCM-9310 User Manual...
  • Page 49 3.2.3.9 USB Configuration  USB2 PHY Power Gating Configure USB2 PHY Power Gating.  USB3 PHY Power Gating Configure USB3 PHY Power Gating. PCM-9310 User Manual...
  • Page 50  PCIE Wake Enable or disable PCIE to wake the system from S5.  Onboard LAN1/LAN2 Controller Select to Enable or Disable Onboard LAN1/LAN2 Controller.  LAN Option ROM Enabled / Disabled Onboard LAN’s PXE option ROM. PCM-9310 User Manual...

  • Page 51: Security

    3.2.4 Security Select Security Setup from the PCM-9310 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:...

  • Page 52: Boot

    Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.  New Boot Option Policy Controls the placement of newly detected UEFI boot options. PCM-9310 User Manual...

  • Page 53: Save & Exit

    This item allows you to save the changes done so far as user defaults.  Restore User Defaults This item allows you to restore the user defaults to all the options.  Boot Override Boot device select can override your boot priority. PCM-9310 User Manual...

  • Page 54: Chapter 4 Mioe Installation

    Chapter MIOe Installation...

  • Page 55: Quick Installation Guide

    Remove Release Paper PAD XR-Pe 13.9x13.9x1mm There are six screws and six studs inside the white box, please install the heat- sink into place as per illustration below: PCM-9310 User Manual...

  • Page 56: Appendix A Pin Assignments

    Appendix Pin Assignments This appendix contains informa- tion of a detailed or specialized nature. Sections include:  Jumper and Connector Tables...

  • Page 57: Jumper List

    PIN HEADER 3x2P 2.0mm 180D(M) DIP 21N22050 Setting Function (1-2)* (N/A) A.1.2 LCD Power (J2) LCD Power Part Number 1653003260 Footprint HD_3x2P_79 Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050 Setting Function (1-3)* +3.3V (3-5) (3-4) +12V +3.3V +12V PCM-9310 User Manual...

  • Page 58: Lvds Vcon Setting (J3)

    (1-2)* 3.3V High for VCON on LVDS (1-3) Low for VCON on LVDS +3.3V Connector Pin Definition 12V Power Input Part Number 1655003865 Footprint WF_2x2P_165_BOX_RA_D_740SP Description ATX PWRCONN 2x2P 4.2mm 90D(M) DIP 740-77-04TS50 Pin Name +12V +12V PCM-9310 User Manual...
  • Page 59 DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200 Pin Name +12V SO-DIMM Part Number 1651002088 Footprint SODIMMDDR3_204P_AS0A626-HA Description DDR3 SODIMM H=9.2mm 204P SMD AS0A626-HASN-7H Pin Name Power Switch Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin Name PSIN PCM-9310 User Manual...
  • Page 60 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin Name RESET# GPIO Part Number 1653004099 Footprint HD_5x2P_79_23N685B-10M10 Description BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name GPIO4 GPIO0 GPIO5 GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 PCM-9310 User Manual...
  • Page 61 BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name LOUTR LINR LOUTL LINL MIC1R MIC1L Matching Cable: 1703100152 CN11 Part Number 1652003274 Footprint RJ45_28P_RTB-19GB9J1A Description PHONE JACK RJ45 28P DIP RTB-19GB9J1A Pin Name TX+(10/100),BI_DA+(GHz) TX-(10/100),BI_DA-(GHz) RX+(10/100),BI_DB+(GHz) BI_DC+(GHz) BI_DC-(GHz) RX-(10/100),BI_DB-(GHz) BI_DD+(GHz) BI_DD-(GHz) PCM-9310 User Manual...
  • Page 62 1654000055 Footprint DBVGA-VF5MS Description D-SUB Conn. 15P 90D(F) DIP 070242FR015S200ZU Pin Name GREEN BLUE DDAT HSYNC VSYNC DCLK CN14 (reserved) eDP** Part Number Footprint SPH10X2 Description Pin Name EDP_PANEL_z_TX0- EDP_PANEL_z_TX3- EDP_PANEL_z_TX0+ EDP_PANEL_z_TX3+ HDMI1_DDAT EDP_PANEL_z_TX1- HDMI1_DCLK EDP_PANEL_z_TX1+ EDP_PANEL_z_AUX- PCM-9310 User Manual...
  • Page 63 TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1– TMDS Data0+ TMDS Data0 Shield TMDS Data0– TMDS Clock+ TMDS Clock Shield TMDS Clock– Reserved Reserved DDC Ground +5V Power Hot Plug Detect PCM-9310 User Manual...
  • Page 64 1653920200 Footprint SPH20X2 Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91) Pin Name +5V or +3.3V +5V or +3.3V +5V or +3.3V +5V or +3.3V LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2- LVDS1_D2- LVDS0_D2+ LVDS1_D2+ PCM-9310 User Manual...
  • Page 65 LVDS0_CLK- LVDS1_CLK- CN17 48 bits LVDS Panel Part Number 1653920200 Footprint SPH20X2 Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91) Pin Name LVDS0_CLK+ LVDS1_CLK+ LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ VCON PCM-9310 User Manual...
  • Page 66 CN18 mSATA Part Number 00A00000770 Footprint MINIPCIE_HALF_PICO_ITX Description Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP W_DISABLE# PERST# PERn0 +3.3VSB PERp0 PCM-9310 User Manual...
  • Page 67 CN18 Mini PCIE Part Number 00A00000770 Footprint MINIPCIE_HALF_PICO_ITX Description Pin Name +1.5V SMB_CLK PETn0 SMB_DAT PETp0 USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB PCM-9310 User Manual...
  • Page 68 00A00000770 Footprint MINIPCIE_HALF_PICO_ITX Description Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP W_DISABLE# PERST# PERn0 +3.3VSB PERp0 CN19 Mini PCIE Part Number 00A00000770 Footprint MINIPCIE_HALF_PICO_ITX Description Pin Name +1.5V SMB_CLK PETn0 SMB_DAT PETp0 PCM-9310 User Manual...
  • Page 69 USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB CN20 Part Number 1654010809-01 Footprint SIM_6P_5210622-SINR03 Description SIM card conn. 6p 2.54mm 90D(F) SMD 5210622-SINR Pin Name UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA PCM-9310 User Manual...
  • Page 70 CN21 SATA Part Number 1654011616-01 Footprint SATA_7P_WATF-07DBN6SB1U Description Pin Name CN22 SATA Power Part Number 1655001154 Footprint WF_4P_98_BOX_R1_D Description WAFER BOX 4P 2.50mm 180D(M) DIP 24W1170-04S10-01 Pin Name +12V PCM-9310 User Manual...
  • Page 71 (reserved) SATA II Power** Part Number Footprint WF_4P_98_BOX_R1_D Description Pin Name +12V ** This specification is supported upon request. CN24 (reserved) SATA II** Part Number Footprint SATA_7P_WATF-07DBN6SB1U Description Pin Name ** This specification is supported upon request. PCM-9310 User Manual...
  • Page 72 USB_8P_UB1112C-8FDE-4F Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F Pin Name CN26 Internal USB Part Number 1653003718 Footprint HD_5x2P_79_RA_N10_21N22050 Description PIN HEADER 5x2P 2.00mm 90D(M) SMD 21N22050 Pin Name A_D- B_D- A_D+ B_D+ Matching Cable: 1703100121 1703100260 PCM-9310 User Manual...
  • Page 73 Footprint USB_9x2P_UEA1112C-8HS6-4F Description Pin Name CN28 COM3/COM4/RS422/RS485 Part Number 1653004793 Footprint HD_10x2P_79_23N685B-20M10 Description BOX HEADER 10x2P 2.0mm 180D(M)SMD 23N685B-20M10B Pin Name 422TX3-/485D3-/DCD3# DSR3# 422TX3+/485D3+/RXD3 RTS3# 422RX3+/TXD3 CTS3# 422RX3-/DTR3# RI3# 422TX4-/485D4-/DCD4# DSR4# 422TX4+/485D4+/RXD4 RTS4# 422RX4+/TXD4 CTS4# 422RX4-/DTR4# RI4# PCM-9310 User Manual...
  • Page 74 CN29 COM1/COM2 Part Number 1653004793 Footprint HD_10x2P_79_23N685B-20M10 Description BOX HEADER 10x2P 2.0mm 180D(M)SMD 23N685B-20M10B Pin Name DCD1# DSR1# RXD1 RTS1# TXD1 CTS1# DTR1# RI1# DCD2# DSR2# RXD2 RTS2# TXD2 CTS2# DTR2# RI2# Matching Cable: 1701200220 PCM-9310 User Manual...
  • Page 75 Pin Name +12V CN32 SMBus Part Number 1655904020 Footprint FPC4V-125M Description WAFER 4P 1.25mm 180D(M) SMD 85205-04001 Pin Name SMB_DAT SMB_CLK CN33 Battery Part Number 1655902032 Footprint WHL2V-125 Description WAFER BOX 2P 1.25mm 180D(M) DIP 53047-0210 Pin Name PCM-9310 User Manual...

  • Page 76: System Assignments

    Appendix System Assignments This appendix contains informa- tion of a detailed nature. Sections include:  System I/O Ports  1st MB Memory Map  Interrupt Assignments...

  • Page 77: System I/O Ports

    Addr. Range (Hex) Device A0000h - BFFFFh Intel® HD Graphics A0000h - BFFFFh PCI Bus C0000h - DFFFFh PCI Bus E0000h - FFFFFh PCI Bus 90400000 – 905FFFFF Intel® Trusted Execution Engine Interface E0000000 - FEFFFFFF System resources PCM-9310 User Manual...

  • Page 78: Interrupt Assignments

    Communications Port (COM3) / iManager WatchDog IRQ IRQ6 Available IRQ7 Communications Port (COM4) IRQ8 Internal RTC or HPET IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Available IRQ12 Available IRQ13 Numeric data processor IRQ14 SATA controller IRQ15 SATA controller PCM-9310 User Manual...
  • Page 79 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
