PPC-MB-610 Mini-ITX Motherboard with Intel® Core™ i7/
i5/i3/Pentium®/Celeron® LGA 1151 CPU, DP/VGA, 5 COM,
6 USB, Dual LAN, PCIe x 16, and M.2 M Key & E key
Startup Manual
Packing List
Before card installation, please ensure that the following
items have been included in your shipment:
1. 1 x PPC-MB-610 mini-ITX motherboard
2. 1 x COM cables (1 to 4 port DB9)
3. 1 x SATA cable
4. 1 x PPC-MB-610 startup manual
5. 1 x Warranty card
6. 1 x Thermal grease
7. 14 x COM port screws
8. 2 x M.2 packet screws
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note 1: For detailed PPC-MB-610 specifications, refer
to the latest product information provided on the
Advantech website (PPC-61X1C model).
Note 2: Acrobat Reader is required to view PDF files.The
Acrobat Reader software can be downloaded
from www.adobe.com/Products/acrobat/read-
step2.html (Acrobat is a trademark of Adobe).
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
For technical support and service, visit our support
website at
http://support.advantech.com
This manual is for PPC-MB-610, Rev. A1.
Part No. 2043776000
Printed in China

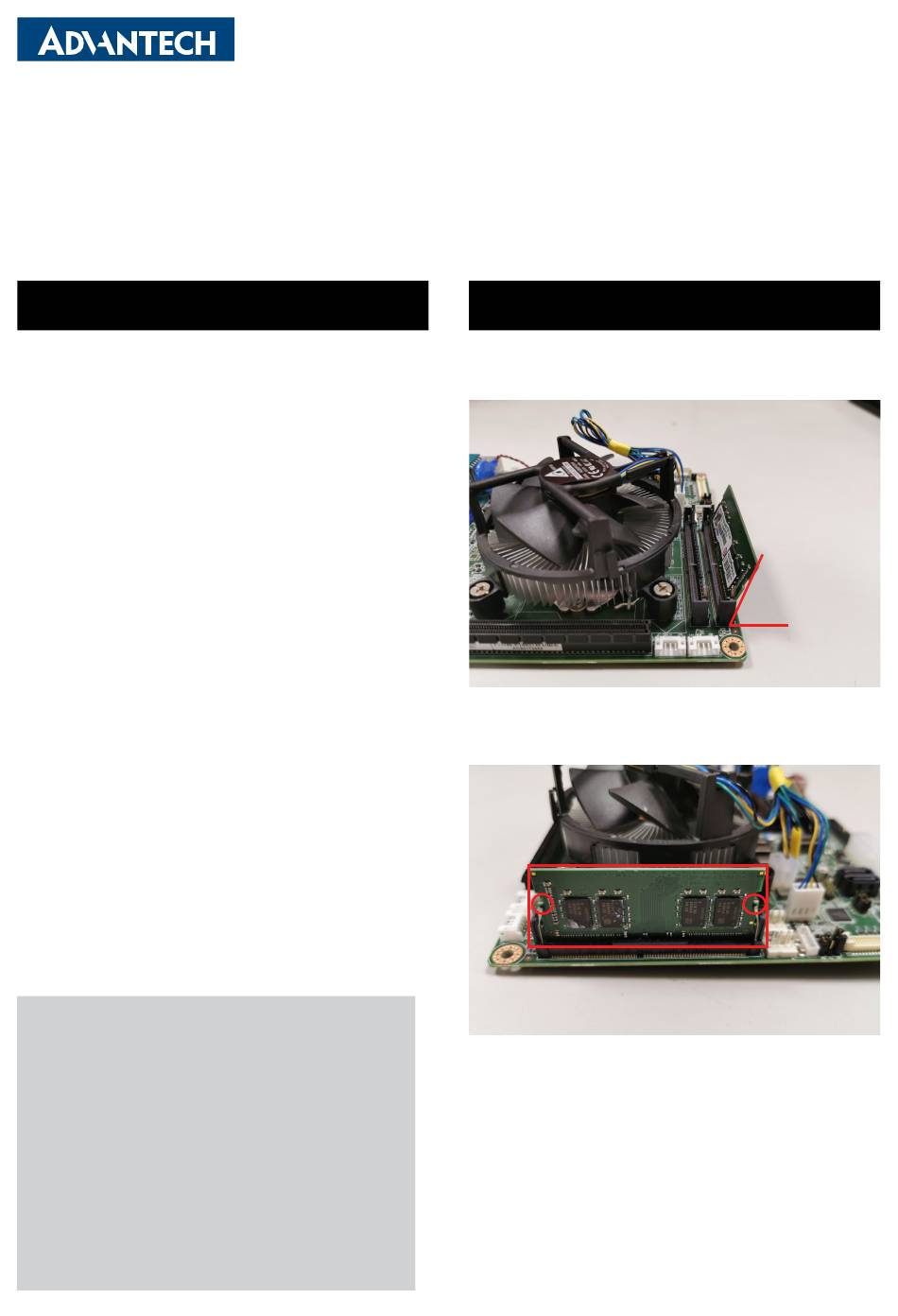

Installation Guide
1. Insert the memory module into the memory slot at a 45
degree angle, as shown below. Ensure that the gold
fingers of the module are fully inserted into the slot.
2. Once inserted, gently press the memory module into
the slot until the tabs snap into place, securing the
module in position.
Edition 1
July 2020
45°
PPC-MB-610 Startup Manual 1
