PPC-MB-610 Mini-ITX Motherboard with Intel® Core™ i7/
i5/i3/Pentium®/Celeron® Processor, DP/VGA, 5 x COM,
6 x USB, Dual LAN, PCIe x16, and M.2 (M Key and E Key)
Startup Manual
Packing List
Before installation, check to ensure that the following items
are included in the shipment:
1. 1 x PPC-MB-610 mini-ITX motherboard
2. 1 x COM cable (1-to-4 DB9)
3. 1 x SATA cable
4. 1 x PPC-MB-610 startup manual
5. 1 x Warranty card
6. 1 x Thermal grease
7. 14 x COM port screws
8. 2 x M.2 packet screws
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note 1: For detailed PPC-MB-610 specifications, refer
to the latest product information provided on the
Advantech website (PPC-61X1C model).
Note 2: Acrobat Reader is required to view PDF files.
This software can be downloaded from www.
adobe.com/Products/acrobat/readstep2.html
(Acrobat is a trademark of Adobe).
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
For technical support and service, visit our support
website at
http://support.advantech.com
This manual is for PPC-MB-610, Rev. A2.
Part No. 2043776002
Printed in China
Installation Guide

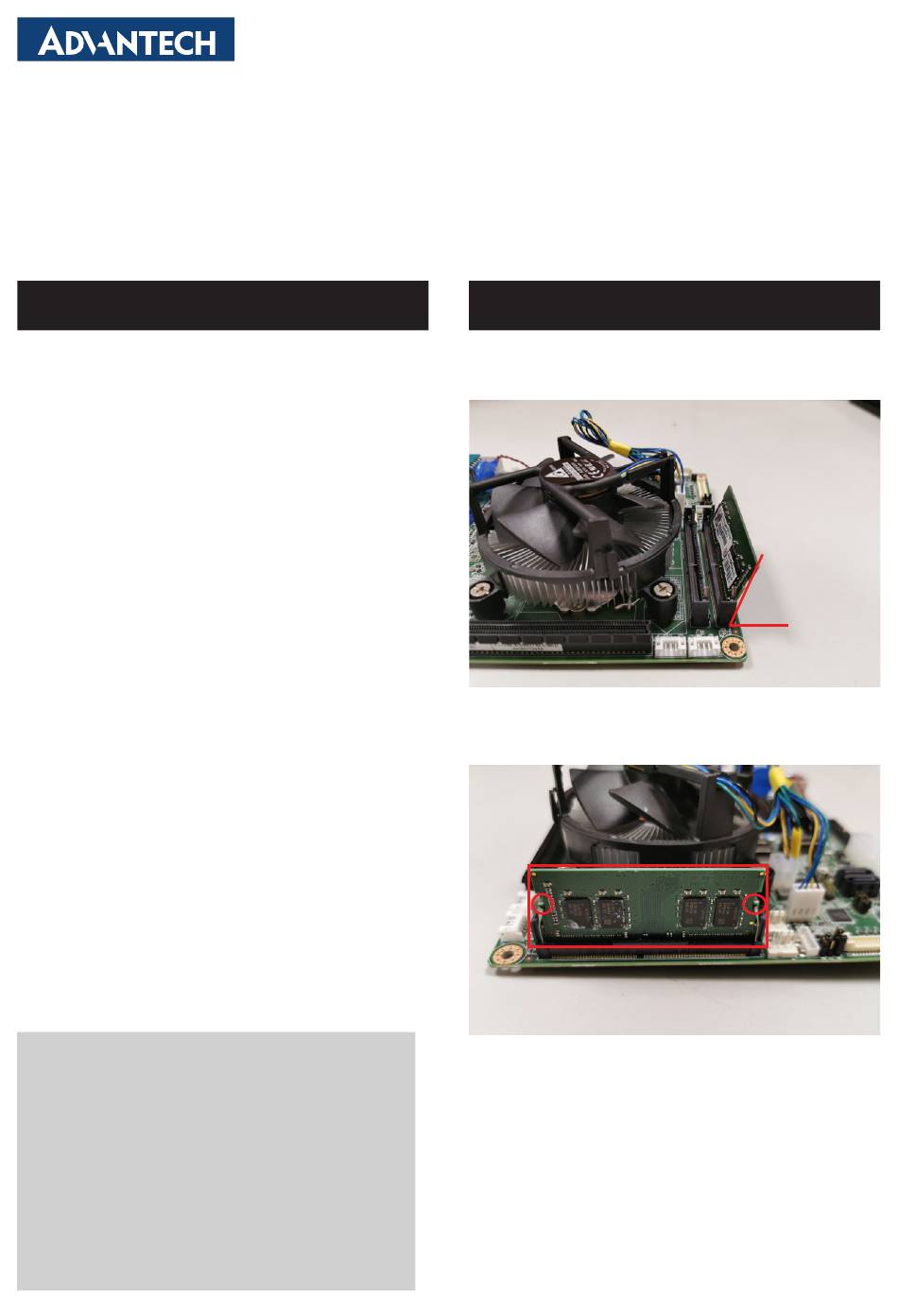

1. Insert the memory module into the memory slot at a 45
degree angle, as shown below. Ensure that the gold
fingers of the module are fully inserted into the slot.
2. Once inserted, gently press the memory module into
the slot until the tabs snap into place, securing the
module in position.
Edition 3
Jan 2021
45°
PPC-MB-610 Startup Manual 1

Advertisement

loading

Summary of Contents for Advantech PPC-MB-610

  • Page 1 PPC-MB-610 Mini-ITX Motherboard with Intel® Core™ i7/ i5/i3/Pentium®/Celeron® Processor, DP/VGA, 5 x COM, 6 x USB, Dual LAN, PCIe x16, and M.2 (M Key and E Key) Startup Manual Packing List Installation Guide Before installation, check to ensure that the following items 1.
  • Page 2: Specifications

    1 x M.2 slot (2280 M key) for storage, 1 x M.2 slot (2230 E key) for wireless modules Expansion 1 x PCIe x16 slot for riser cards Dimensions 170 x 170 mm/6.69 x 6.69 in (W x H) Operating Microsoft® Windows 10 (64 bit), Linux System 2 PPC-MB-610 Startup Manual...
  • Page 3: Board Layout: Jumper And Connector Locations

    Board Layout: Jumper and Connector Locations DIMMB1 SYS FAN2 CN17 SYS FAN1 DIMMA1 CPU FAN1 SATA2 CN22 SATA1 ATX12V1 CPU1 CN21 SPI1 JCMOS1 AMP1 BAT1 VGA1 COM12 USB3 PPC-MB-610 Startup Manual 3...
  • Page 4: Jumpers And Connectors

    Jumpers and Connectors Jumpers and Connectors (Cont.) The PPC-MB-610 motherboard features a number of COM12: COM 2 Connector jumpers that allow users to configure the system according to specific applications. The functions of each jumper and Definition Definition Definition connector are listed in the table below. (RS-232) (RS-422) (RS-485) Connector and Headers TX RX- Connectors and Headers List...
  • Page 5: Jumper Settings

    CPUFAN1: CPU Fan Power Connector Definition POWER SPEED RTC Select (Jcmos1) (1-2) P3 Normal (default) CN4: Power LED Connector (2-3) P4 Clear CMOS Definition +V5_DUAL AMP1: Audio Amplifier Output Connector Definition SPK L- SPK L+ SPK R+ SPK R- PPC-MB-610 Startup Manual 5...
  • Page 6 1024 x 768 (24 bit) Enable Power Select (JP4) (for PPC-6151C chassis) (1-2) P9 (1-2)/(7-8)P20 1280 x 1024 (24 bit) (2-3) P10 +V3.3 (default) (for PPC-6171C chassis) (3-4)/(7-8) P21 1280 x 1024 (24 bit) (for PPC-6191C chassis) 6 PPC-MB-610 Startup Manual...
