User Manual
PCM-9389
®
3.5" SBC with Intel
Atom™
N455/D525, DDR3 SODIMM or
on-board SDRAM, PC/104, 18/24-
bit LVDS, VGA, 2 GbEs, 4 COMs,
4 USBs, LPC, iManager 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM-9389 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech PCM-9389

Summary of Contents for Advantech PCM-9389

  • Page 1 User Manual PCM-9389 ® 3.5" SBC with Intel Atom™ N455/D525, DDR3 SODIMM or on-board SDRAM, PC/104, 18/24- bit LVDS, VGA, 2 GbEs, 4 COMs, 4 USBs, LPC, iManager 2.0...
  • Page 2 The documentation and the software included with this product are copyrighted 2012 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.

  • Page 4: Packing List

    Packing List Before installation, please ensure the following items have been shipped: Item Part Number  1 PCM-9389 SBC  1 Startup manual  1 Utility CD  1 Pack of mini jumper  Cables Part Number Description 1700016141 AT Power: 2*6P-4.2/ 2*10P-4.2, 10 cm 1700017863 LAN: RJ-45/ 2*5P-2.0, 15 cm...
  • Page 5 Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. PCM-9389 User Manual...
  • Page 6 PCM-9389 User Manual...

  • Page 7: Table Of Contents

    Super I/O Configuration .............. 25 Figure 3.6 Super I/O Configuration..........25 3.3.4 Hardware Monitor Configuration ..........26 Figure 3.7 Hardware Health Configuration ........ 26 3.3.5 ACPI Settings................27 Figure 3.8 ACPI Settings ............27 Figure 3.9 General ACPI Configuration ........27 PCM-9389 User Manual...
  • Page 8 Software APIs ................49 4.3.3 SUSI Utilities................50 4.3.4 SUSI Installation ................. 51 4.3.5 SUSI Sample Programs.............. 53 Appendix A Assignments....... 61 Jumper Setting..................62 Table A.1: Jumper List............... 62 Connectors....................62 Table A.2: Connector List ............62 PCM-9389 User Manual viii...
  • Page 9 Table B.1: System I/O Ports ............82 1st MB Memory Map ................82 Table B.2: 1st MB Memory Map ..........82 DMA Channel Assignments ..............83 Table B.3: DMA Channel Assignments........83 Interrupt Assignments ................83 Table B.4: Interrupt Assignments..........83 PCM-9389 User Manual...
  • Page 10 PCM-9389 User Manual...

  • Page 11: Chapter 1 General Introduction

    Chapter General Introduction This chapter gives background information on the PCM-9389. Sections include:  Introduction  Product Features  Specifications...

  • Page 12: Introduction

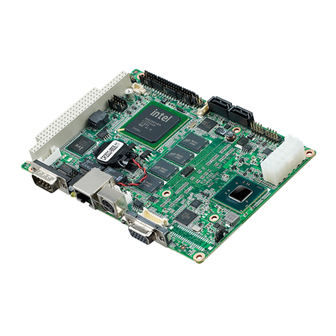

    PCM-9389 is a 3.5" SBC (Single Board Computer) with Embedded Intel Atom N455 1.66 GHz / D525 1.8 GHz processor. The PCM-9389 can support DDR3 SODIMM up to 4GB or 1 GB SDRAM on-board, PC/104 and LPC (Low Pin Count) expansion, VGA, 18/24-bit LVDS, 2 GbE, CF, 2 SATA, 3 RS-232 COM ports, 1 RS-232/422/485 COM port, 4 USB 2.0, SMBus or I...
  • Page 13  AMI 16Mbit SPI Flash ROM OS Support PCM-9389 supports Win7, Win XP, Win CE 6.0, WES7, WES, QNX 6.5, VxWorks 6.8, and Linux Ubuntu 10.04. For further information about OS support, please visit Advantech website: www.advantech.com or contact with technical support center.

  • Page 14: Mechanical Specifications

    – Top side: 15 mm for N455, 18 mm for D525 (PCB to heatsink/cooler) – Bottom side: 9.6 mm (PCB to CF socket). If stacking with Advantech LPC module, total bottom side14.6 mm  Reference Weight: 640 g (including whole package) 1.2.3...

  • Page 15: Block Diagram

    Block Diagram Figure 1.1 Block Diagram PCM-9389 User Manual...
  • Page 16 PCM-9389 User Manual...

  • Page 17: Chapter 2 H/W Installation

    Chapter H/W Installation This chapter explains the setup procedures of the PCM-9389 hard- ware, including instructions on setting jumpers and connecting peripherals, as well as switches, indicators and mechanical draw- ings. Be sure to read all safety precautions before you begin the...

  • Page 18: Jumpers

    Generally, you simply need a standard cable to make most connections. Warning! To avoid damaging the computer, always turn off the power supply before setting jumpers. 2.1.2 Jumper List Table 2.1: Jumper List AT/ATX power supply COM2 RS-232/422/485 switch LCD Power PCM-9389 User Manual...

  • Page 19: Jumper Settings

    PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050 Setting Function (1-2)* RS232 (3-4) RS485 (5-6) RS422 *: default LCD Power Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS Setting Function (1-2) +5 V (2-3)* +3.3 V *: default PCM-9389 User Manual...

  • Page 20: Connectors

    TTL (by request) 2.2.2 Connector Settings 2.2.2.1 RTC Battery Connector (BH1) PCM-9389 supports a lithium 3 V/210mAH CR2032 battery with wire via battery con- nector. Note! How to clear CMOS: (Must follow steps below) 1. Turn off system power 2. Unplug battery cable on BH1 3.
  • Page 21 2.2.2.2 AT/ATX Power Input (CN1) Supplies main power +5 V to PCM-9389 via 6x2-pin connector, and to devices that require +12 V. AT power cable is included in standard packing, but ATX power cable (P/N: 1700001112) is an optional accessory requiring additional order.
  • Page 22 ISA DMA. If user needs to boot up from PC/104 or with long pin PC/104, that can be supported by T-P/N. 2.2.2.20 ISA -5V & -12V Input (CN28) PCM-9389 is equipped with a negative power input connector (3-pin pin header) to provide -5 V & -12 V power. PCM-9389 User Manual...
  • Page 23 LVDS+VGA dual display mode in BIOS to display correct screen size due to Intel VBIOS limitation. 2.2.2.23 TTL (CN31 supported by request) The TTL interface is a 20x2-pin board-to-board connector for 18-bit TTL panel. TTL is supported by T-P/N. PCM-9389 User Manual...

  • Page 24: Mechanical

    Mechanical 2.3.1 Jumper and Connector Locations Figure 2.1 Jumper and Connector Layout (Top Side) Figure 2.2 Jumper and Connector Layout (Bottom Side) PCM-9389 User Manual...

  • Page 25: Figure 2.3 Coastline Layout

    Figure 2.3 Coastline Layout 2.3.2 Board Dimensions 2.3.2.1 CPU Board Drawing unit: mm Figure 2.4 Board Dimension Layout (Top Side) PCM-9389 User Manual...

  • Page 26: Figure 2.5 Board Dimension Layout (Bottom Side)

    Figure 2.5 Board Dimension Layout (Bottom Side) unit: mm Figure 2.6 Board Dimension Layout (Coastline) unit: mm Figure 2.7 Board Dimension Layout (Coastline Including of LPC Module) PCM-9389 User Manual...
  • Page 27 2.3.2.2 Another Thermal Solution - Heat Spreader PCM-9389 has an optional heat spreader which can make the whole system more compact. Using a heat spreader to conduct heat to your chassis can help a lot when the system is extra compact or has limited space for heat convection. Here are some...
  • Page 28 PCM-9389 User Manual...

  • Page 29: Chapter 3 Bios Settings

    Chapter BIOS Settings...

  • Page 30: Figure 3.1 Setup Program Initial Screen

    AMIBIOS has been integrated into many motherboards for over a decade. With the AMIBIOS Setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the PCM-9389 BIOS setup screens.

  • Page 31: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU's system status is valid.

  • Page 32: Advanced Bios Features Setup

    Advanced BIOS Features Setup Select the Advanced tab from the PCM-9389 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...

  • Page 33: Cpu Configuration

    This item allows you to enable or disable Intel? Hyper Threading technology.  Intel® C-STATE tech This item allows the CPU to save more power under idle mode.  Enhanced C-States CPU idle set to enhanced C-States, disabled by Intel® C-STATE tech item. PCM-9389 User Manual...

  • Page 34: Ide Configuration

    Hard Disk Write Protect Disable/Enable device write protection. This will be effective only if device is accessed through BIOS.  IDE Detect Time Out (Sec) This item allows you to select the time out value for detecting ATA/ATAPI device(s). PCM-9389 User Manual...

  • Page 35: Super I/O Configuration

    Serial Port1 / Port2 / Port3 / Port4 IRQ This item allows you to select serial port1 ~ port4 of IRQ.  Auto Flow Control For SP2 This item allows you to enable or disable auto flow control function. PCM-9389 User Manual...

  • Page 36: Hardware Monitor Configuration

    This item allows you to select shutdown temperature.  Backlight Control This item allows you to select backlight control type.  CPU Temperature Shows current CPU temperature.  VBAT / 5V / 12V / Vcore Displays voltages. PCM-9389 User Manual...

  • Page 37: Acpi Settings

    3.3.5 ACPI Settings Figure 3.8 ACPI Settings 3.3.5.1 General ACPI Configuration Figure 3.9 General ACPI Configuration PCM-9389 User Manual...

  • Page 38: Figure 3.10Advanced Acpi Configuration

    This item allows you to enable RSDP pointers to 64-bit fixed system description tables.  ACPI APIC support Include APIC table pointer to RSDT pointer list.  AMI OEMB table Include OEMB table pointer to R(x)SDT pointer lists.  Headless mode Enable / Disable Headless operation mode through ACPI. PCM-9389 User Manual...

  • Page 39: Figure 3.11Chipset Acpi Configuration

    Allows you to configure Intel's Energy Lake power management technology.  APIC ACPI SCI IRQ Enable/Disable APIC ACPI SCI IRQ.  USB Device Wakeup From S3 Enable/Disable USB Device Wakeup from S3.  High Performance Event Timer Enable/Disable High performance Event timer. PCM-9389 User Manual...

  • Page 40: Ahci Configuration

    3.3.6 AHCI Configuration Figure 3.12 Advanced ACPI Configuration  AHCI Ports0 / Port1 While entering setup, BIOS auto detects the presence of IDE devices. This dis- plays the status of auto detection of IDE device. PCM-9389 User Manual...

  • Page 41: Apm Configuration

    "Last State" returns the system to the status just before power failure.  Resume On PME# Enable / Disable PME to generate a wake event.  Resume On RTC Alarm Enable / Disable RTC to generate a wake event. PCM-9389 User Manual...

  • Page 42: Event Log Configuration

    Figure 3.14 South Bridge ACPI Configuration  View Event Log View all unread events on the event Log.  Mark all events as read Mark all unread events as read.  Clear Event Log Discard all events in the event Log. PCM-9389 User Manual...

  • Page 43: Mps Configuration

    3.3.9 MPS Configuration Figure 3.15 South Bridge ACPI Configuration  MPS Revision This item allows you to select MPS version. PCM-9389 User Manual...

  • Page 44: Smbios Configuration

    3.3.10 Smbios Configuration Figure 3.16 South Bridge ACPI Configuration  Smbios Smi Support SMBIOS SMI wrapper support for PnP function 50h-54h. PCM-9389 User Manual...

  • Page 45: Usb Configuration

    EHCI driver.  Hotplug USB FDD Support A dummy FDD device is created that will be associated with the hotplugged FDD later. Auto option creates this dummy device only if there is no USB FDD present. PCM-9389 User Manual...

  • Page 46: Figure 3.18Usb Mass Storage Device Configuration

    If Auto, USB devices less than 530MB will be emulated as Floppy and remain- ing as hard drive. Force FDD option can be used to force a FDD formatted drive to boot as FDD (Ex. ZIP drive). PCM-9389 User Manual...

  • Page 47: Advanced Pci/Pnp Settings

    Advanced PCI/PnP Settings Select the PCI/PnP tab from the PCM-9389 setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlight- ing it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this section.

  • Page 48: Boot Settings

    When set to Reserved will specified DMA will Reserved for use by leg- acy ISA devices.  Reserved Memory Size This item allows you to reserved size of memory block for legacy ISA device. Boot Settings Figure 3.20 Boot Setup Utility PCM-9389 User Manual...

  • Page 49: Boot Settings Configuration

    Hit "DEL' Message Display Displays -Press DEL to run Setup" in POST.  Interrupt 19 Capture This item allows option ROMs to trap interrupt 19.  Bootsafe function This item allows you to enables or disables bootsafe function. PCM-9389 User Manual...

  • Page 50: Security Setup

    Security Setup Figure 3.22 Password Configuration Select Security Setup from the PCM-9389 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:...

  • Page 51: Advanced Chipset Settings

    Advanced Chipset Settings Figure 3.23 Advanced Chipset Settings PCM-9389 User Manual...

  • Page 52: North Bridge Chipset Configuration

     Initiate Graphic Adapter This item allows you to select which graphics controller to use as the primary boot device.  Internal Graphics Mode Select Select the amount of system memory used by the Internal graphics device. PCM-9389 User Manual...

  • Page 53: Figure 3.25Video Function Configuration

    Select boot display device at post stage.  Flat Panel Type This item allows you to select which panel resolution you wants.  Spread Spectrum Clock This item allows you to enables or disables spread spectrum clock. PCM-9389 User Manual...

  • Page 54: South Bridge Chipset Configuration

    Enables or disables LAN2 wake up from S5 function.  HDA Controller Enables or disables the HDA controller.  SMBUS Controller Enables or disables the SMBUS controller.  SLP_S4# Min. Assertion Width This item allows you to set a delay of sorts. PCM-9389 User Manual...

  • Page 55: Exit Option

    3.8.3 Load Optimal Defaults The PCM-9389 automatically configures all setup items to optimal settings when you select this option. Optimal Defaults are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Opti- mal Defaults if your computer is experiencing system configuration problems.

  • Page 56: Load Fail-Safe Defaults

    3.8.4 Load Fail-Safe Defaults The PCM-9389 automatically configures all setup options to fail-safe settings when you select this option. Fail-Safe Defaults are designed for maximum system stability, but not maximum performance. Select Fail-Safe Defaults if your computer is experi- encing system configuration problems.

  • Page 57: S/W Introduction & Installation

    Chapter S/W Introduction & Installation...

  • Page 58: S/W Introduction

    S/W Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life with Advantech platforms and Microsoft® Windows® embedded technology.” We enable Windows® embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (Hardware suppliers, System integrators, Embedded OS distributor) for projects.

  • Page 59: Software Apis

    Application programmers can invoke the functions exported by SUSI instead of call- ing the drivers directly. The benefit of using SUSI is portability. The same set of APIs is defined for different Advantech hardware platforms. Also, the same API set is implemented in different Operating Systems including Windows® XP and Windows®...

  • Page 60: Susi Utilities

    However, due to the inaccuracy among many commercially available hardware mon- itoring chips, Advantech has developed a unique scheme for hardware monitoring - achieved by using a dedicated micro-processor with algorithms specifically designed for providing accurate, real-time and reliable data content; helping protect your sys- tem in a more reliable manner.

  • Page 61: Susi Installation

    If a previous version is located, please see the [Maintenance Setup] section. If it is not located, an alternative window appears. Click Next. PCM-9389 User Manual...
  • Page 62 Windows® CE In Windows® CE, there are three ways to install the SUSI Library, you can install it manually or use Advantech CE-Builder to install the library or just copy the programs and the library onto a compact flash card.

  • Page 63: Susi Sample Programs

    You can click function tabs to select test functions respectively. Some function tabs will not show on the test application if your platform does not support such functions. For a complete support list, please refer to Appendix A. We describe the steps to test all functions of this application. PCM-9389 User Manual...
  • Page 64 Key in the value in (R/W) Result field from ‘0x01’ to ‘0x0F’ to write the value of the output pin. The pin numbers are ordered bitwise, i.e. bit 0 stands for GPIO 0, bit 1 stands for GPIO 1, etc. For example, if you want to set pin 0 PCM-9389 User Manual...
  • Page 65 Key in the register offset in Register Offset field. – Key in the desirous of data in Result field to write to the device. – Click the WRITE A BYTE button and then the data will be written to the device through I PCM-9389 User Manual...
  • Page 66 – Key in the desired data, such as 0x1234, in the Result field to write to the device. – Click the WRITE SMBus DATA button and the data will be written to the device through the SMBus. PCM-9389 User Manual...
  • Page 67 Move the slider in increments, using either the mouse or the direction keys, or click the UP button to increase the brightness. – Move the slider in decrements, using either the mouse or the direction keys, or click the DOWN button to decrease the brightness. PCM-9389 User Manual...
  • Page 68 Before the timer counts down to zero, you can reset the timer by clicking the REFRESH button. After you click this button, the Timeout Countdown field will display the value of the SET TIMEOUT field.  If you want to stop the watchdog timer, just click the STOP button. PCM-9389 User Manual...
  • Page 69 If certain data values are not supported by the platform, the correspondent data field will be grayed-out with a value of 0. For more details on PCM-9389 software API, please contact your dealer or Advan- tech AE. API user manuals are also included on this CD.
  • Page 70 PCM-9389 User Manual...

  • Page 71: Appendix A Pin Assignments

    Appendix Pin Assignments...

  • Page 72: Jumper Setting

    CN19 COM3/COM4: RS-232 CN20 CN21 PS/2 CN22 SMBus CN23 CPU FAN CN24 LAN1 (External) CN25 LAN2 (Internal) CN26 Audio CN27 PC/104 CN28 ISA -5V & -12V input CN29 Inverter power output CN30 LVDS CN31 TTL (by request) PCM-9389 User Manual...
  • Page 73 Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050 Setting Function (1-2)* RS232 (3-4) RS485 (5-6) RS422 LCD power Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS Setting Function (1-2) (2-3)* +3.3V PCM-9389 User Manual...
  • Page 74 Matching cable: AT 1700016141 (Standard cable), ATX 1700001112 (Optional acces- sory) DDR3 SODIMM socket Part Number 1651001904 Footprint DDR3_204P_2-2013289-1 Description DDR3-SODIMM H=5.2mm 204P SMD STD 2-2013289-1 Pin Name Power switch Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin Name PSIN PCM-9389 User Manual...
  • Page 75 BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name GPIO4 GPIO0 GPIO5 GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 Part Number 1654000055 Footprint DBVGA-VF5MS Description D-SUB Conn. 15P 90D(F) DIP 070242FR015S200ZU Pin Name GREEN BLUE DDAT HSYNC VSYNC DCLK PCM-9389 User Manual...
  • Page 76 CN10 CF socket Part Number 1653002919 Footprint CF_50P_CFCMD-35T15W100 Description CF HEADER 50P 90D(M) SMD CFCMD-35T15W100 Pin Name CS0# CD2# CD1# PCM-9389 User Manual...
  • Page 77 WAFER BOX 6P 2.0mm 180D(M) DIP A2001WV2-6P Pin Name Power LED+ Power LED- HDD LED+ HDD LED- CN12/CN13 SATA Part Number 1654004659 Footprint SATA_7P_WATM-07DBN4A3B8UW_D Description Serial ATA Con 7p 180D(M)DIP 1.27mm WO/Pb(L=3.3) Pin Name Matching cable: 1700006291 PCM-9389 User Manual...
  • Page 78 PIN HEADER 2x5P 2.0mm 180D(M) SMD 21N22050 Pin Name A_D- B_D- A_D+ B_D+ Matching cable: 1700018730 CN16 COM1 Part Number 1654000056 Footprint DBCOM-VM5MS Description D-SUB Conn. 9P 90D(M) DIP 070241MR009S200ZU Pin Name DCD# DTR# DSR# RTS# CTS# PCM-9389 User Manual...
  • Page 79 Pin Name DCD1# DSR1# RXD1 RTS1# TXD1 CTS1# DTR1# RI1# Matching cable: 1700019414 CN18 COM2: RS-422/485 Part Number 1655004032 Footprint WF_5P_49_BOX_85205 Description WAFER 5P 1.25mm 180D(M) SMD 85205-05701 Pin Name 422RX- 422RX+ 422/485TX+ 422/485TX- Matching cable: 1700019435 PCM-9389 User Manual...
  • Page 80 CN19 COM3/COM4 Part Number 1653004793 Footprint HD_10x2P_79_23N685B-20M10 Description BOX HEADER 10x2P 2.0mm 180D(M)SMD 23N685B-20M10B Pin Name DCD3# DSR3# RXD3 RTS3# TXD3 CTS3# DTR3# RI3# DCD4# DSR4# RXD4 RTS4# TXD4 CTS4# DTR4# RI4# Matching cable: 1701200220 PCM-9389 User Manual...
  • Page 81 Description FEMALE HEADER SMD 7*2P 180D(F) 2.0mm Pin Name RESET# FRAME# +3.3V LPC_SERIRQ PWROK CN21 PS/2 Part Number 1654003199 Footprint CONTEK_MQN3261F1G400 Description MINI DIN 6P 90D(F) DIP MQN3261F1G400 Pin Name KBDAT MSDAT KBCLK MSCLK Matching cable: 1700060202 PCM-9389 User Manual...
  • Page 82 Description WAFER BOX 3P 2.0mm 180D(M) DIP 2001-WS-3 Pin Name Speed CN24 LAN1 (External) Part Number 1652508203 Footprint RJ45-RJM5 Description PHONE JACK RJ45 8P8C 90D SHIELDED 9743-10811-SE Pin Name BI_DA+(GHz) BI_DA-(GHz) BI_DB+(GHz) BI_DC+(GHz) BI_DC-(GHz) BI_DB-(GHz) BI_DD+(GHz) BI_DD-(GHz) PCM-9389 User Manual...
  • Page 83 BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name BI_DD+(GHz) BI_DD-(GHz) BI_DC+(GHz) BI_DC-(GHz) RX+(10/100),BI_DB+(GHz) RX-(10/100),BI_DB-(GHz) TX+(10/100),BI_DA+(GHz) TX-(10/100),BI_DA-(GHz) Matching cable: 1700017863 CN26 Audio Part Number 1653004099 Footprint HD_5x2P_79_23N685B-10M10 Description BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10 Pin Name LOUTR LINR LOUTL LINL MIC1R MIC1L PCM-9389 User Manual...
  • Page 84 Matching cable: 1700019584 CN27 PC/104 Part Number 165313222A 165312022A Footprint PC104A Description Pin Name IOCHCK# IOCHRDY# SA19 SA18 SA17 SA16 SA15 SA14 SA13 SA12 SA11 SA10 RSTDRV PCM-9389 User Manual...
  • Page 85 DRQ2 -12V 0WS# +12V SMEMW# SMEMR# IOW# IOR# DACK3# DRQ3 DACK1# DRQ1 REFRESH# SYSCLK IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2# ALE# SBHE# LA23 LA22 LA21 LA20 LA19 LA18 LA17 MEMR# MEMW# SD10 SD11 SD12 SD13 SD14 SD15 PCM-9389 User Manual...
  • Page 86 IRQ10 IRQ11 IRQ12 IRQ15 IRQ14 DACK0# DRQ0 DACK5# DRQ5 DACK6# DRQ6 DACK7# DRQ7 MASTER# CN28 ISA -5V & -12V input Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS Pin Name -12V PCM-9389 User Manual...
  • Page 87 WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI Pin Name +12V ENABKL CN30 LVDS Part Number 1653910261 Footprint SPH10X2 Description B/B Conn 10x2P 1.25mm 180D(M)SMD DF13-20DP-1.25V Pin Name LVDS0_D0+ LVDS0_D0- LVDS0_D1+ LVDS0_D1- LVDS0_D2+ LVDS0_D2- LVDS0_CLK+ LVDS0_D3+ LVDS0_CLK- LVDS0_D3- +5V or +3.3V +5V or +3.3V PCM-9389 User Manual...
  • Page 88 CN31 TTL (by request) Part Number 1653920200 Footprint SPH20X2 Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91) Pin Name +3.3V +3.3V PD10 PD11 PD12 PD13 PD14 PD15 PCM-9389 User Manual...
  • Page 89 PCM-9389 User Manual...
  • Page 90 PCM-9389 User Manual...

  • Page 91: Appendix B System Assignments

    Appendix System Assignments...

  • Page 92: System I/O Ports

    System ROM D0000h - EFFFFh Unused (reserved for Ethernet ROM) C0000h - CE7FFh Expansion ROM (for VGA BIOS) B8000h - BFFFFh CGA/EGA/VGA text B0000h - B7FFFh Unused A0000h - AFFFFh EGA/VGA graphics 00000h - 9FFFFh Base memory PCM-9389 User Manual...

  • Page 93: Dma Channel Assignments

    IRQ4 COM1 IRQ5 Available (EC Watchdog) IRQ6 Available IRQ7 Available IRQ8 System CMOS/real time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 COM3 IRQ11 COM4 IRQ12 PS/2 compatible mouse IRQ13 Numeric data processor IRQ14 Primary IDE IRQ15 Secondary IDE PCM-9389 User Manual...
  • Page 94 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
