General Wiring Diagram - MOTO GUZZI GRISO 8V - 1200 Service Station Manual

Hide thumbs Also See for GRISO 8V - 1200:
Table of Contents

Advertisement

Electrical system

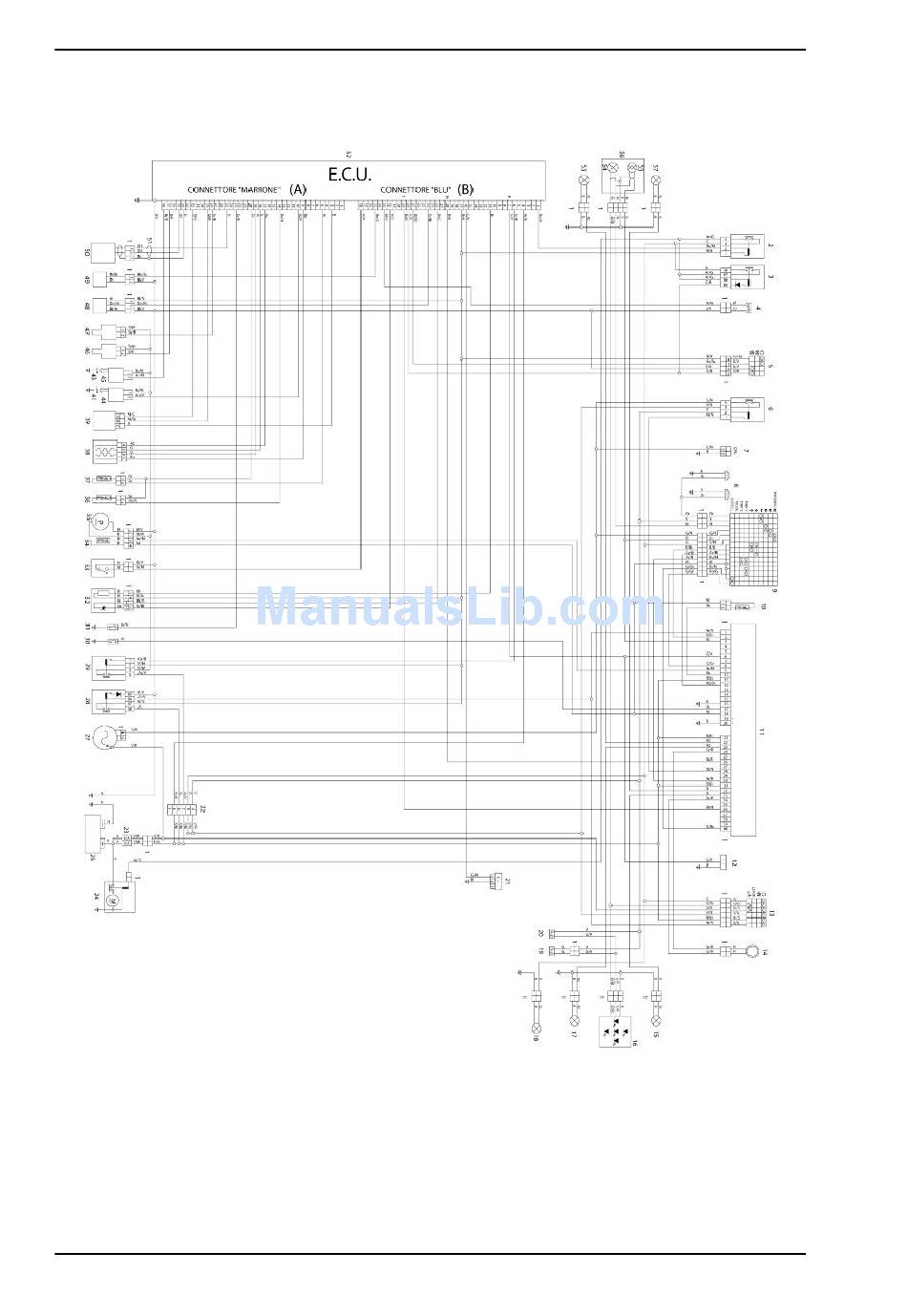

General wiring diagram

Key:
1. Multiple connectors
2. Start-up relay
3. Maintenance relay
4. Clutch switch
ELE SYS - 44
