GRISO 8V - 1200
•

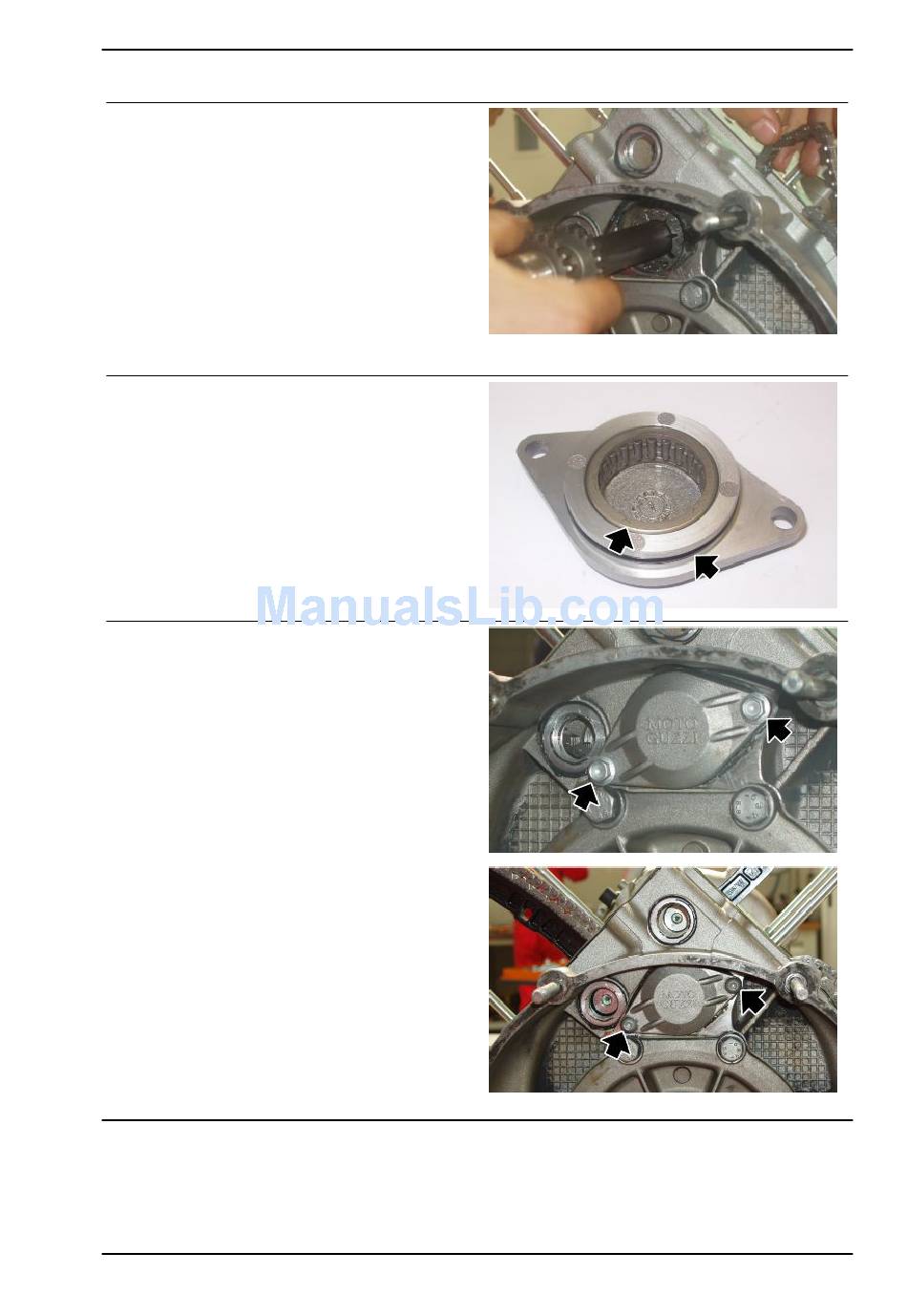

Fit the timing chains according to the
references marked at the removal
phase.
•
Lubricate the service shaft.
•
Insert the service shaft in its crankcase
seat by sliding it through the two
chains.
•
Fit each chain to the corresponding
service shaft gear.
•
Fit the roller cage and a new O-ring on
the service shaft closing cap.
•
Partially fit the service shaft closing
cap.
•
To screw the cap until it stops, use two
M6 flanged screws larger than the orig-
inal screws.
•
Tighten the two M6 flanged screws op-
erating in stages until the cap stops
against the crankcase.
•
Undo and remove the two M6 flanged
screws.
•
Tighten the cap with the two original
TBEI screws.
Engine
ENG - 151
