WARNING
MAKE SURE THAT THE NOTCH ON THE DIPSTICK BODY
FACES THE ROCKING LEVER.
•

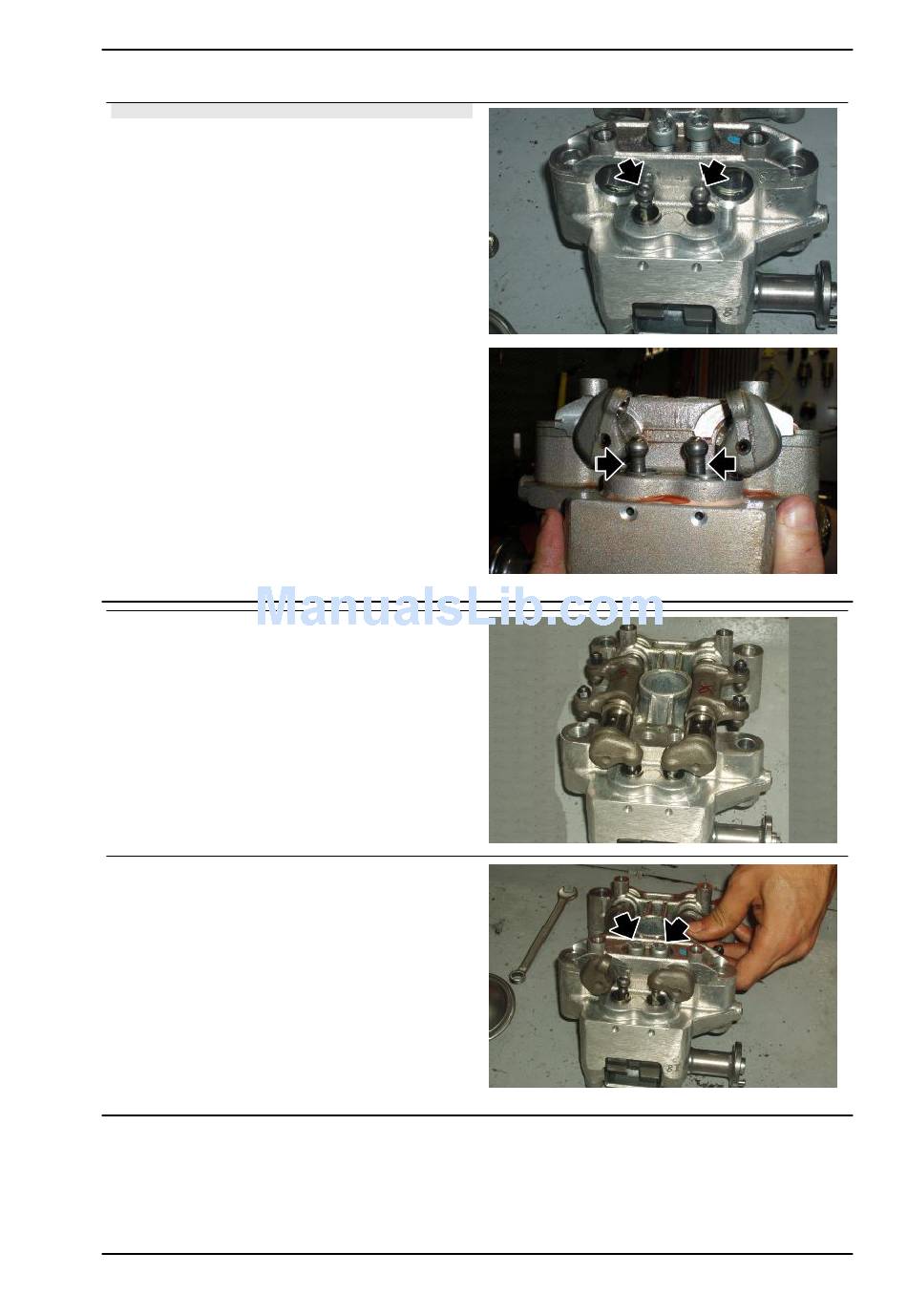

Place the two rocking levers in the cam
tower seats.
•
Place the U-bolt on the rocking levers
making sure the two reference pins
match the seats on the cam tower.
•
Tighten the two screws operating diag-
onally and in stages.
OPTION 02 - ROLLER TIMING SYSTEM
•
Insert the roller hydraulic tappets.
•
Fit the camshaft
Engine
ENG - 145
