Engine

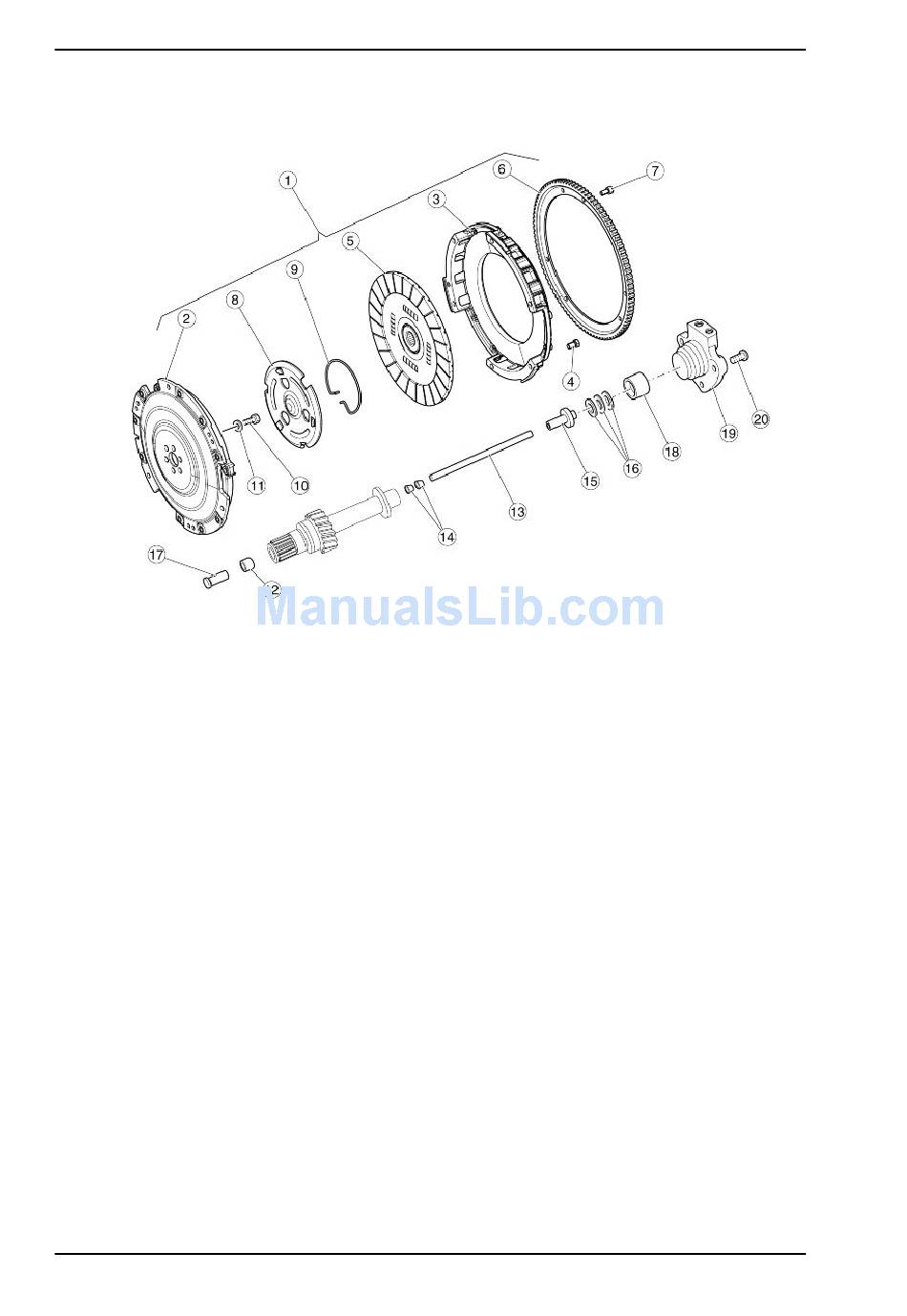

Disassembling the clutch
key:
1. Complete clutch
2. Clutch
3. Clutch bell
4. TCEI screw
5. Clutch plate
6. Sprocket
7. TCEI screw
8. Clutch thrust plate
9. Ring
10.TE flanged screw
11.Conical washer
12.Bushing
13.Rod
14.Bushing
15.Intermediate body
16.Thrust bearing
17.Clutch control bowl
18.Thrust cylinder
19.Clutch control cylinder
ENG - 120
GRISO 8V - 1200
