Engine

Assembling the gearbox

NOTE
TO REFIT, FOLLOW THE SAME INSTRUCTIONS AS FOR REMOVAL BUT IN REVERSE ORDER.
REMEMBER TO REPLACE ALL SEALING RINGS, CIRCLIPS AND SAFETY RINGS PREVIOUSLY
REMOVED.
If the clutch is replaced, measure the length of the
clutch control rod in order to use the correct rod.
Measure as follows:
•
Fit the new clutch on the crankshaft.
•
Fit the clutch control bowl in the gear-
box.
•
Fit the gearbox on the engine block.
•

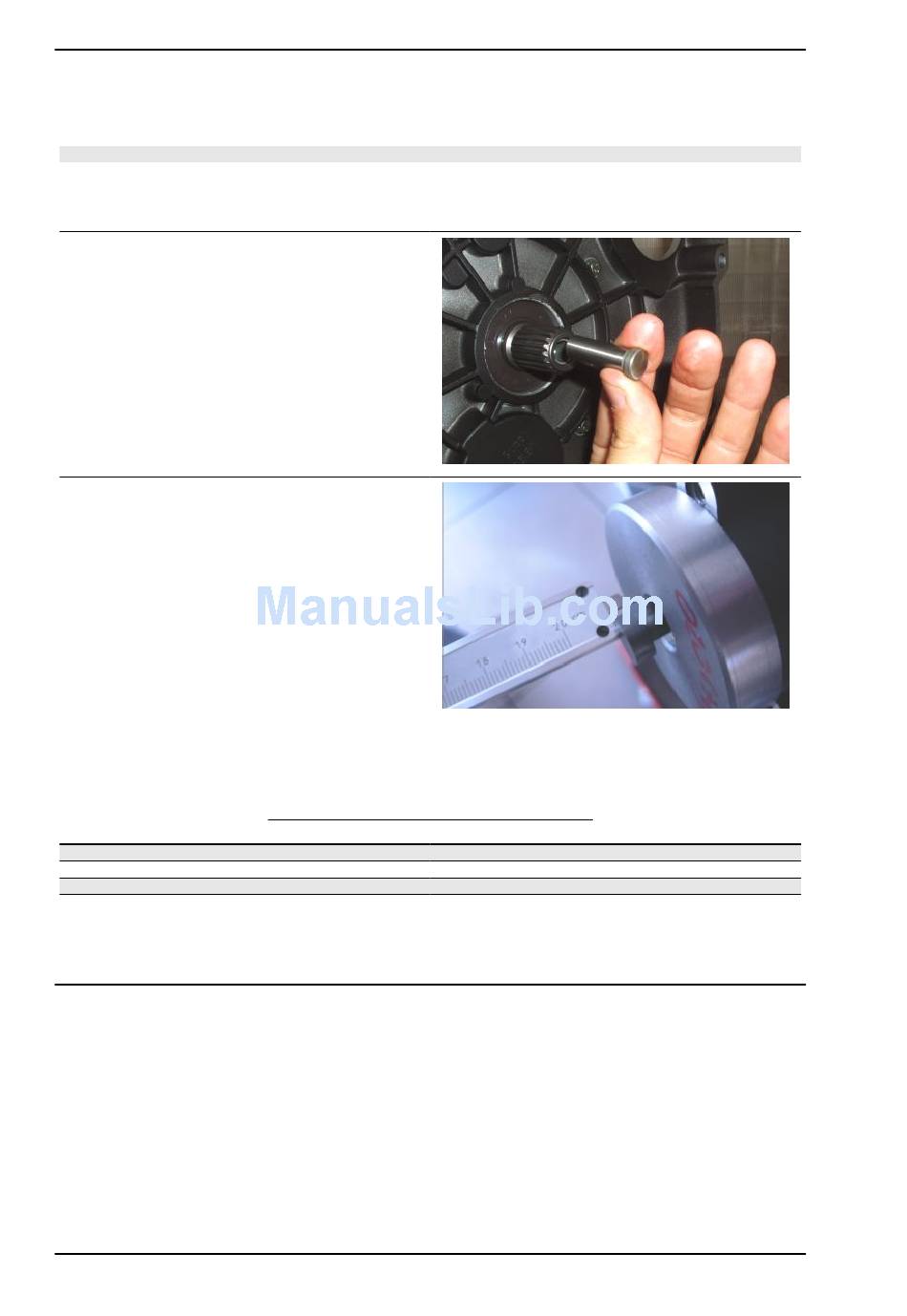

Fit the tool in the gearbox to determine
the clutch control rod length.
•
Measure rod protrusion using a depth
gauge (see picture).
•
According to the value found, select
the correct rod based on the following
table:

Specific tooling

020678Y Tool for clutch rod checking
Specification
Protrusion: 9.8 - 11.2 mm (0.386 - 0.441 in)
Protrusion: 8.3 - 9.7 mm (0.327 - 0.382 in)
Protrusion: 6.8 - 8.2 mm (0.268 - 0.323 in)
Protrusion: 5.3 - 6.7 mm (0.209 - 0.264 in)
See also
Disassembling the gearbox
ENG - 108
CLUTCH CONTROL ROD SELECTION
Clutch control rod length (code 976593) = 183 mm (7.205 in)
Clutch control rod length (code 976594) = 184.5 mm (7.264 in)
Clutch control rod length (code 976595) = 186 mm (7.323 in)
Clutch control rod length (code 976596) = 187.5 mm (7.382 in)
GRISO 8V - 1200
Desc./Quantity
