Summary of Contents for Kichler Lighting ELLYS

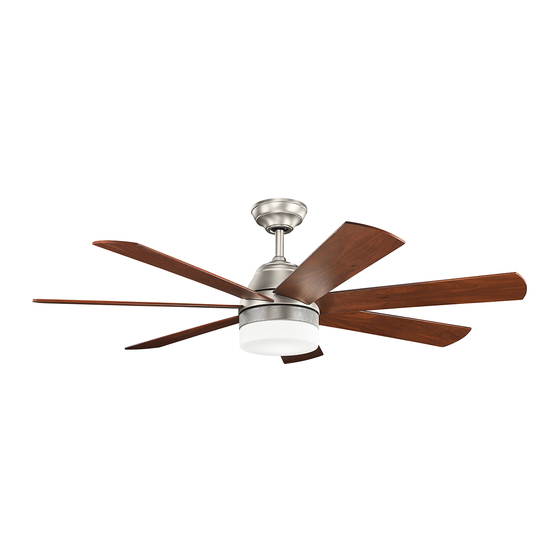

- Page 1 56” Ellys A Kichler ® Décor ™ ceiling fan HIGH EFFICIENCY MOTOR 6 Speed DC Wall Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST,...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
56" Ellys 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (7) Ceiling mounting bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
56" Ellys 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling mounting bracket.
-
Page 7: Installation Of Safety Support
56" Ellys 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Ceiling mounting Attach Step 1. Attach the provided wood screw and bracket safety cable... -
Page 8: Electrical Connections
SUPPLY CIRCUIT 7. ELECTRICAL CONNECTIONS WARNING: Carefully read and retain this Ground Conductor Instruction Manual for future reference. BLACK WARNING:To avoid possible electrical shock, Outlet Box be sure the electricity is turned off at the main Green Ground Lead BLACK panel by removing the fuse or opening the circuit breaker. -
Page 9: Finishing The Installation
56" Ellys 8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the Outlet box ceiling outlet box. Step 2. Slide the canopy up to the mounting Ceiling mounting bracket and place one of the key hole slots over bracket the mounting screw on the mounting bracket. -
Page 10: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Insert the blade through the blade slot in the motor housing. Align the holes in blade and blade bracket, making sure the holes are also aligned and secure with the screws, fiber washers and blade support plates provided. Repeat process with other blades. -
Page 11: Installing The Led Light Kit And Glass Shade
56" Ellys 11. INSTALLING THE LED LIGHT KIT AND GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the three mounting screws on the inside of the LED light kit. (Fig.16) Step 2. -
Page 12: Control System Set-Up
12. CONTROL SYSTEM SET-UP Press the power button on wall control to TURN THE POWER ON.The LED lights on the wall control will blink thru the power up process, approximately 3 seconds. Green Light Within 60 seconds of powering the unit on, Press and hold the REV/FOR button on the For/Rev switch wall control until the light kit blinks twice (or... -
Page 13: Button Instruction
56" Ellys 13. BUTTON INSTRUCTION LED Indicator Red LED: Transmitter signal indicator. When RF signal is sending, the red light will illuminate. Green LED: To show the Forward and Reverse indicator. ON/OFF button " " ON: Turn on the power. -
Page 14: Installing The Wall Control System Wall Plate
14. INSTALLING THE WALL CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install the Wall Control Wall plate System Transmitter and Wall Plate. REMEMBER also this should state that the control is not to be mounted outdoors. You can safely use the transmitter outdoors but it should be mounted indoors away from excess heat and away from contact with water or... - Page 15 56" Ellys 15. OPERATING INSTRUCTIONS Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 21. This allows you to set your air conditioner on a warmer setting without affecting your comfort. Cool weather - Reverse (clockwise) An upward airflow moves warm air off the ceiling...
-
Page 16: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
