Kichler Lighting ERIS 337060 Manual

Down rod hanger kit

Advertisement

Quick Links

READ AND SAVE THESE INSTRUCTIONS
ERIS DOWN ROD HANGER KIT
337060
U.S. Patent Pending

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERIS 337060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kichler Lighting ERIS 337060

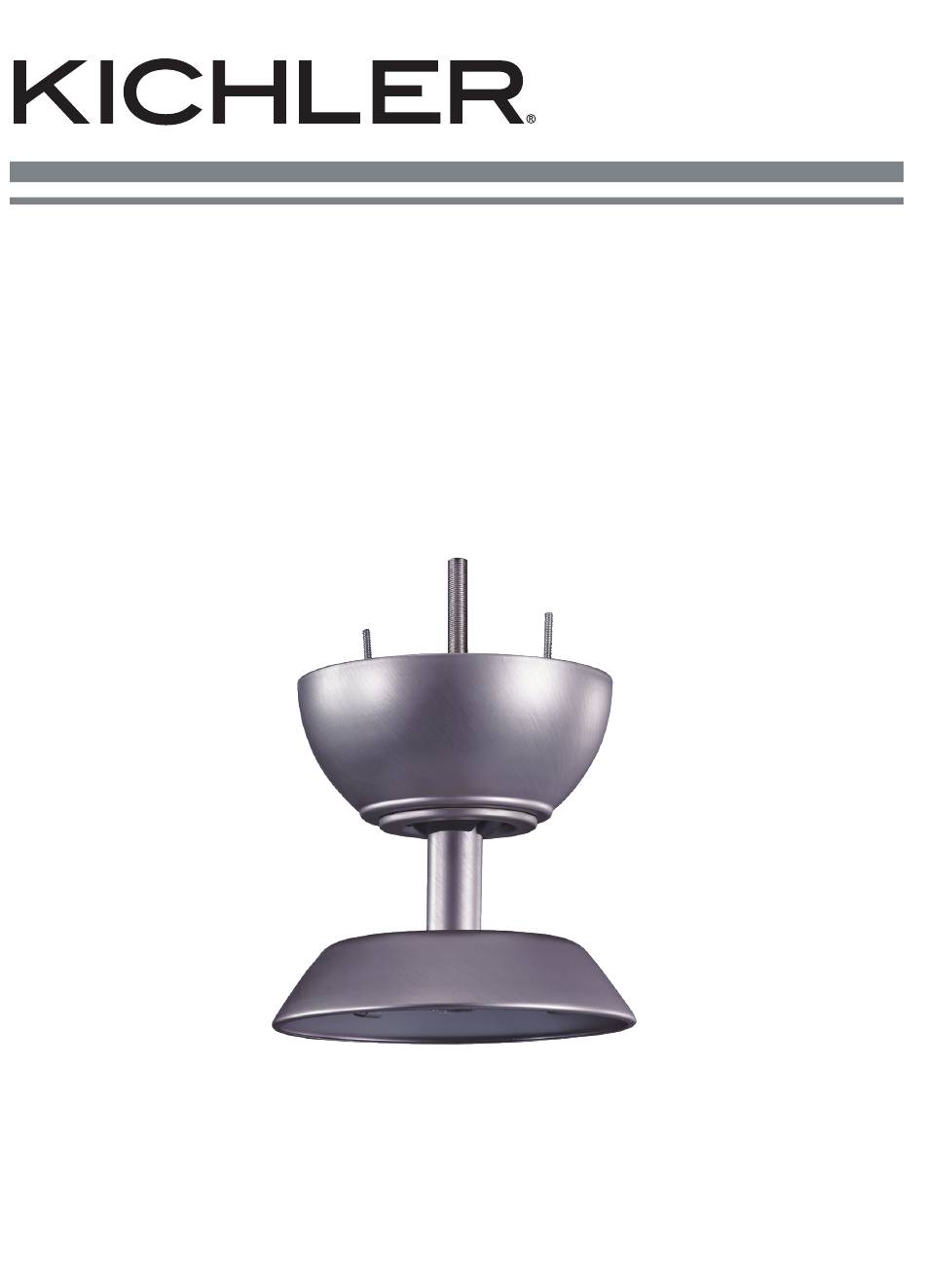

  • Page 1 READ AND SAVE THESE INSTRUCTIONS ERIS DOWN ROD HANGER KIT 337060 U.S. Patent Pending...
  • Page 2: Tools And Materials Required

    This carton contains the following parts. Please make sure you have everything. A. Mounting Bracket .......... (1pc) B. Downrod Assembly ........(1set) C. Canopy ............(1pc) D. Canopy Screw Cover ........(1pc) E. Coupling Cover ..........(1pc) F. Package Hardware ........(1set) TOOLS AND MATERIALS REQUIRED Phillips screwdriver Blade screwdriver...
  • Page 3: Mounting Options

    ERIS DOWN ROD HANGER KIT Ceiling joist MOUNTING OPTIONS Expandable joist hanger Make sure the outlet box you've selected for mounting your ceiling fan is UL listed Outlet box and rated for ceiling fan use. JOIST MOUNT NOTE: Make sure the electrical power is Ceiling joist turned off before starting.
  • Page 4 Step 1. Assemble the mounting bracket to ceiling outlet box using the screws and washers Outlet Box supplied with the outlet box. (Fig. 4) Mounting Bracket Flat Washer Screw Step 2a. For Eris fan installed with mounting Fig. 4 plate cover. Remove the three (3) mounting screws to release the mounting plate cover from ceiling fan, then reinstall the removed screws back to the ceiling...
  • Page 5 ERIS DOWN ROD HANGER KIT Step 4. Route the black, white, blue wires Clip Cross Pin and safety cable through the downrod. Downrod Set Screw Thread downrod into the downrod support Downrod Support on top of the motor. Install the cross pin by Clip aligning the holes in the downrod support Cross Pin...
  • Page 6 Step 7. Remove one of the two shoulder screws in the mounting bracket and save for use in Step 9. Loosen the second shoulder screw Mounting Bracket without fully removing it. (Fig. 10) Shoulder Screw Fig. 10 Step 8. Now lift the motor assembly into position and place the hanger ball into the mounting bracket.
