Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday

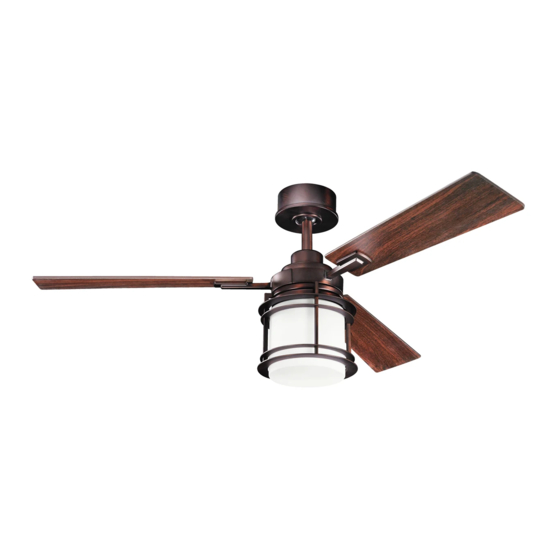

Pacific Edge
Includes our new
CoolTouch
6 Speed DC Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending
Instruction Manual
TM
300157
A Kichler
®
Decor
™
ceiling fan
HIGH
EFFICIENCY
DC
MOTOR
3129198
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kichler Lighting Pacific Edge 300157
Summary of Contents for Kichler Lighting Pacific Edge 300157
- Page 1 Pacific Edge 300157 A Kichler ® Decor ™ ceiling fan HIGH Includes our new EFFICIENCY CoolTouch 6 Speed DC Control System Looks permanent, but goes wherever you go! MOTOR U.S. Patent Pending Kichler ® Lighting 7711 East Pleasant Valley Road P.O.
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Pacific Edge 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Pacific Edge 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. Canopy To properly install your ceiling fan, follow the steps below. Canopy Step 1. Remove the decorative canopy cover Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Hanger ball Downrod Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Canopy tighten. Now tighten the set screw. (Fig. 9) Step 9.
-
Page 7: Installation Of Safety Support
Pacific Edge 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling Attach mounting Step 1. Attach the provided wood screw and bracket safety cable to ceiling joist... -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into Outlet box the ceiling outlet box. Ceiling Step 2. Slide the canopy up to the mounting mounting bracket and place one of the key hole slots bracket Screws over the mounting screw on the mounting bracket. -
Page 9: Attaching The Fan Blades
Pacific Edge 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Screws Step 1. Attach a blade to a blade bracket Fiber using the screws and rubber washers washers... - Page 10 11. INSTALLING THE SOCKET PLATE NOTE: Before continuing installation, confirm that the power is still turned off at the main circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is not sufficient to prevent electrical shock. Step 1.
-
Page 11: Control System Set-Up
Pacific Edge 13. CONTROL SYSTEM SET-UP Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. - Page 12 2. Insert both batteries and make sure they Blue Light are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 18) 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
- Page 13 Pacific Edge 14. OPERATING INSTRUCTIONS: Speed Buttons Figure 22 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed...
- Page 14 NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...
-
Page 15: Installing The Cooltouch Control System Wall Plate
Pacific Edge 15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Wall plate Control System Transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box. -
Page 16: Troubleshooting
17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
