Instruction Manual
Eads
TM
310135
A Kichler
Decor

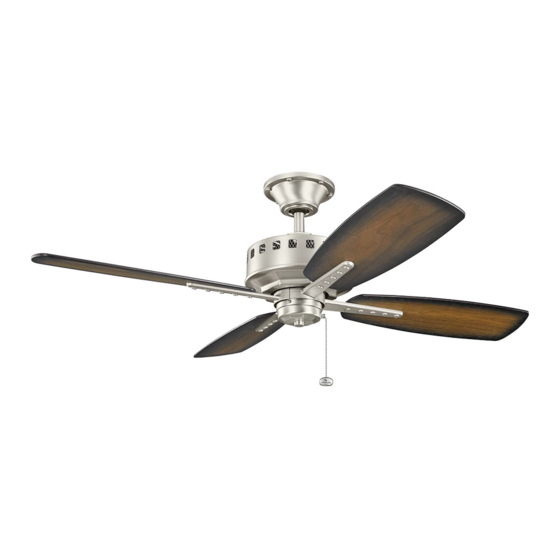

ceiling fan
®
™
3066708

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eads 310135 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting Eads 310135

Summary of Contents for Kichler Lighting Eads 310135

  • Page 1 Eads 310135 A Kichler Decor ceiling fan ® ™ Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler Lighting ® 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST,...
  • Page 2 1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 3: Table Of Contents

    Eads 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents . You should have the following items: A. Mounting Bracket (1) B.
  • Page 4 4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Mounting Bracket

    Eads 5. HANGING THE FAN REMEMBER to turn off the power before you ETL Listed Outlet Box begin installation. This is necessary for your safety and also the proper programming of the Ceiling Mounting Bracket control system. Flat Washer Screw To properly install your ceiling fan, follow the steps below.
  • Page 6 Step 5. Now lift the motor body into position and place the hanger ball into the hanger bracket. Rotate until the "Check Tab" has dropped into the "Registration Slot " and seats firmly. ( Fig. 9) Check Tab The entire motor body should not rotate is this is done correctly.
  • Page 7 Eads 7. MAKE THE ELECTRIC CONNECTIONS WARNING: To avoid possible electrical shock, be sure you have turned off the power at the main circuit panel before wiring. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan.
  • Page 8 8 . FINISHING THE INSTALLATION Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen the second Mounting Bracket shoulder screw without fully removing it. (Fig. 13) Shoulder Screw Fig. 13 Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw in mounting bracket.

  • Page 9: Blade Arm

    Eads 9. ATTACHING THE FAN BLADES Blade Screw NOTE: Before continuing , make sure the power Fiber Washer is disconnected by turning off the circuit breaker of removing the fuse at the circuit box. Step 1. Position the blade over the blade arm with threaded posts showing.

  • Page 10: Switch Housing

    11. INSTALLING THE SWITCH COVER NOTE: Before continuing, make sure the power is disconnected by turning off the circuit breaker of removing the fuse at the circuit box. NOTE: If you plan to install an “Optional” light fixture purchased separately, please skip to step 13 and continue.
  • Page 11 Eads 13. INSTALLING AN “OPTIONAL” LIGHT FIXTURE Hex Nut (1) Step 1. Remove the hex nut (1) and finial Switch Cover located in the bottom of the switch cover by using a tooling. (Fig. 21) Keep them for future use. Finial Fig.

  • Page 12: Screws

    Step 5. Install the 3, 60 watt candelabra base lamps (included) into the light fixture. (Fig. 24) CAUTION: If you replace the bulbs with more than 190 watts, the fixture will automatically turn off. When replacing bulbs, ensure bulb wattage is below 190 watts.
  • Page 13 Eads 14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
