XIEGU X108 Instruction Book

Chongqing Xiegu Technology Co,.ltd
Instruction Book for X108

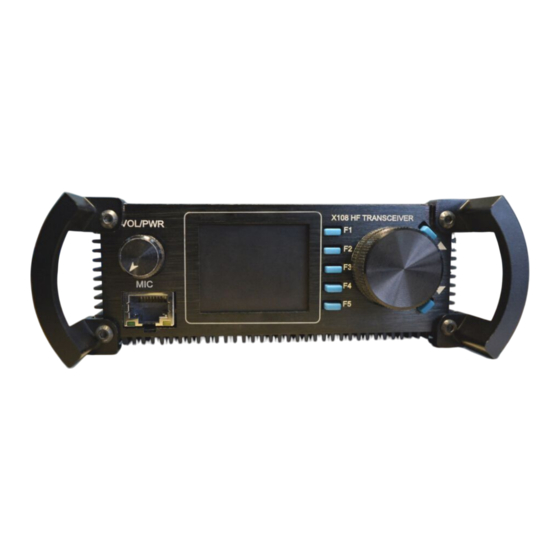

The brand new X108 from Chongqing Xiegu Technology is a compact single
conversion HF transceiver covering 0.5 to 30 MHz. Boasting the latest in minimalist
industrial design, it offers radio amateurs high quality HF capability at a very
affordable price.
Attention to detail abounds in the X108 – the IF crystal filter stage, for instance,
features customised military grade crystals for superb performance in both SSB (2.4
kHz) and CW (500 Hz) modes.
Other features include a switchable AGC circuit, preamplifier and signal attenuator,
RIT control for SSB use, and RF output power variable from 1 to 20 Watts. The front
panel meter can display incoming signal strength, RF output power and VSWR, and
the transceiver includes high VSWR protection circuitry to guard against potential
damage to the output stage caused by antenna mismatching.
The RF output stage features imported RF MOS tubes and APC circuitry for constant
output across all bands. A noise blanker (NB) module is available as an option, as is
a high stability 0.5 ppm TCXO module.
