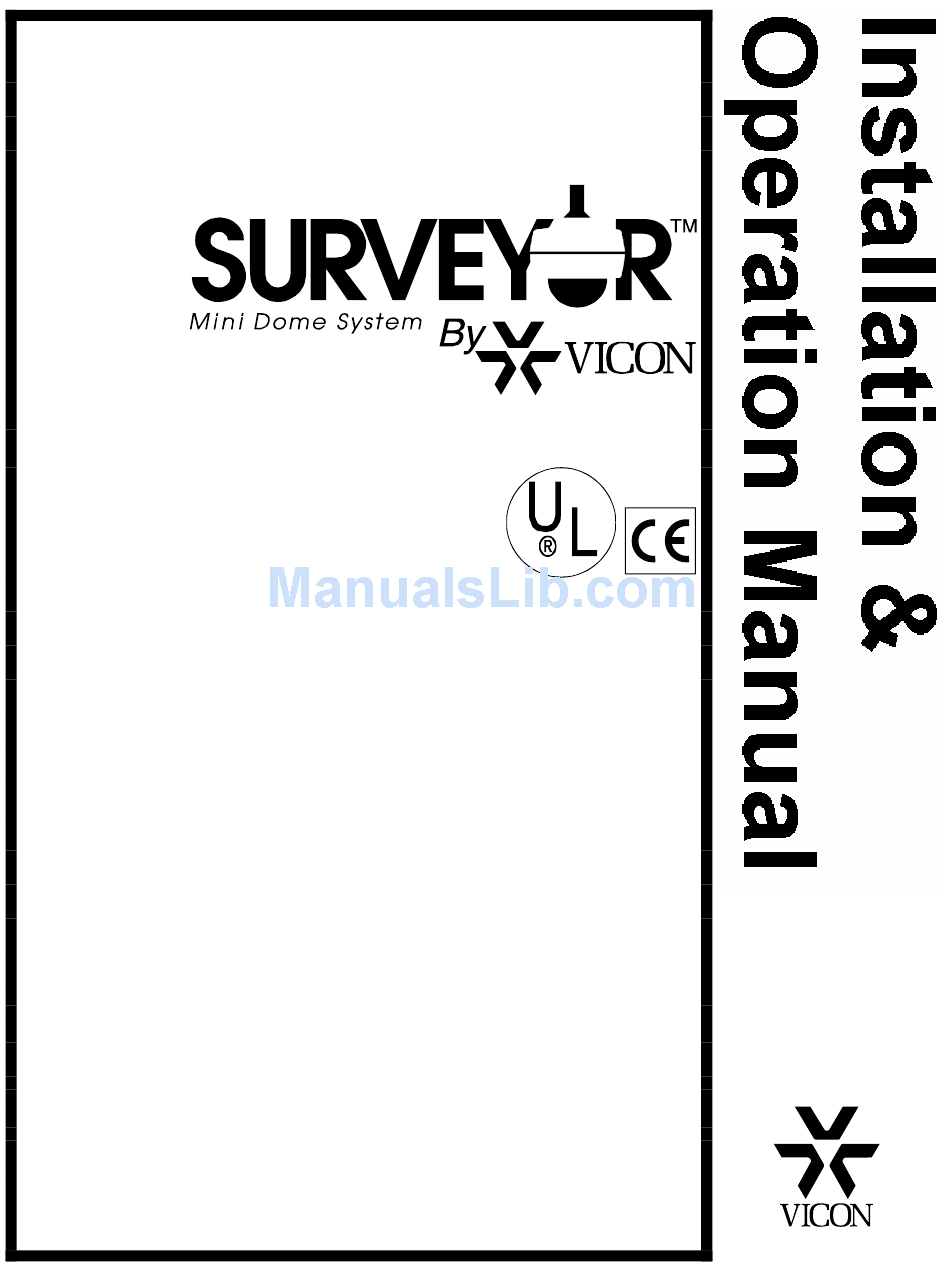

X971
Surveyor Mini Dome System
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements
or that the operation will be entirely error free or perform precisely as described in the documentation. This
system has not been designed to be used in life-critical situations and must not be used for this purpose.
Copyright © 1998 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Vicon Part No. 8006-8971-03-00 Section 1 Rev 1098
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TELEPHONE: 516-952-CCTV (2288) FACSIMILE: 516-951-CCTV (2288)
TOLL FREE: 800-645-9116 UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the surveyor X971 and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon surveyor X971

Summary of Contents for Vicon surveyor X971

  • Page 1 X971 Surveyor Mini Dome System Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 3 We stand behind the quality and dependability of every product with an industry leading Beneficial Use warranty. If you are not satisfied with a Vicon product or service, I would like to know. Your complete satisfaction is the mission of every Vicon employee.

  • Page 5: Fcc Notice

    FCC Notice NOTE: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 7: Table Of Contents

    Installing the Camera/ Lens Module ......................3 Switch Settings and Adjustments......................3 Setting the Service Switch ..........................4 HOUSING INSTALLATION ....................7 INDOOR PENDANT ........................8 Installation Using a Vicon Mount.......................8 Installation Using a 1.5-inch Pipe......................9 DROPPED CEILING ....................10 Installation into a Dropped Ceiling ......................10 Contents • i...
  • Page 8 SOLID CEILING ......................12 Installation Into a Solid Ceiling ....................... 12 OUTDOOR PENDANT ....................13 Installation Using a Vicon Mount ......................13 Installation Using a 1.5-inch Pipe ......................14 WIRING ..........................15 Installing the Cables ..........................17 FINAL ASSEMBLY ......................19 Installing the Drive Mechanism.......................
  • Page 9 Coaxial Cable ..............................33 Twisted-Pair Cable ............................34 1.5-inch Pipe Designation..........................34 TECHNICAL INFORMATION .....................35 Contents • iii X971 Rev 1098 Surveyor Mini Dome System...
  • Page 10 iv • X971 Rev 1098 Surveyor Mini Dome System...
  • Page 11 DIP Switch 5 (S5) Settings ..........................4 Table 2 DIP Switch 2 (S2) Settings ..........................5 Figure 5 Exploded view - Indoor Pendant and Vicon Mount ..................8 Figure 6. Installation on a Vicon Mount ...........................8 Figure 7 Exploded view - Indoor Pendant and Pipe Mount ..................9 Figure 8 Installation on a 1.5-inch Pipe ..........................9...
  • Page 12 Table 4 Customer Interface Board Terminal Block Definitions................18 Figure 22 Drive to Housing Alignment ........................... 19 Figure 23 Exploded View - Drive Installation......................... 19 Figure 24 Exploded View - Indoor Dome Installation....................20 Figure 25 Exploded View - Outdoor Dome Installation ....................21 Figure 26 Drive Release Handle ............................
  • Page 13 Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
  • Page 14 This prevents damage to the video product due replacement parts specified by Vicon or that have the to lightning and power-line surges. same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other 15.

  • Page 15: Introduction

    Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to Figure 1 deliver the equipment in the same condition as it left Basic Surveyor Unit the factory.

  • Page 16: Housings

    The V7USD-V2 is the indoor Housing for the Surveyor system. It can be suspended from a piece of 1.5-inch pipe or Vicon mount (pendant), directly to a Solid (Hard) Ceiling or into a Dropped (suspended) ceiling via a structural grid assembly. All required installation hardware is supplied.

  • Page 17: Drive Mechanism Assembly

    Drive Mechanism Assembly The Drive Mechanism must be fitted with the Camera/Lens Module and configured before it is installed into the Housing. This procedure is best performed on a clean bench with common hand tools. Installing the Camera/ Lens Module 1.

  • Page 18: Setting The Service Switch

    Both formats support 4800 and 9600 baud transmission rates. Surveyor’s baud rate must match the system’s baud rate. NOTE: When Surveyor is to be used in a system with mixed receiver types such as the V15UVS, V1311RB, etc., the baud rate should be set 4800 baud to ensure proper communication. Prior to configuration, determine DIP Switch 5 (S5) Switch Numbers...

  • Page 19: Table 2

    DIP SWITCH 2 (S2) ADDRESS SELECTION SWITCHES SWITCHES SWITCHES * Vicoax Mod e , st an d ar d p r ot ocol * Vicoax Mod e , e x t e n d e d p r ot ocol Table 2 DIP Switch 2 (S2) Settings Drive Mechanism Assembly •...
  • Page 20 NOTES 6 • Drive Mechanism Assembly X971 Rev 1098 Surveyor Mini Dome System...

  • Page 21: Housing Installation

    Housing Installation Housing installation is a simple process. Choose the installation type based on the supplied components. Three mounting kits are provided for the four possible installation types. INSTALLATION TYPES Indoor Pendant Dropped Ceiling Solid Ceiling Outdoor Pendant The Pendant Mounting Kit labeled FOR FREE HANGING INSTALLATION ONLY includes: DESCRIPTION QUANTITY Cylindrical Spacer...

  • Page 22: Indoor Pendant

    INDOOR PENDANT The Indoor Pendant mounts in two configurations: Vicon Mount or 1.5-inch Pipe Mount. Both use standard 1.5-inch NPT threaded pipe and can be attached to a wall (vertical surface) or a ceiling (horizontal surface). Installation Using a Vicon Mount Vicon mounts are supplied with the correct 1.5-inch...

  • Page 23: Installation Using A 1.5-Inch Pipe

    Installation Using a 1.5-inch Pipe This installation is similar to the Vicon mount. The pipe can be fastened to any surface or support providing sufficient strength and area for the Mini Dome. 1. Inspect the end of the pipe and remove any burrs on the inside diameter.

  • Page 24: Dropped Ceiling

    DROPPED CEILING Mounts in the grid frame between the dropped and true ceiling space. A complete mounting kit is provided and includes a Cable Access Cap which allows connection to two sizes of conduit pipe. Installation into a Dropped Ceiling The Housing is attached to the Mounting Bracket Assembly and then installed into the Dropped Ceiling.

  • Page 25: Cable Access Cap

    7. Install the Conduit fitting. 8. Attach a T Bracket to an L Bracket using two screws, flat washers and lock washers. Repeat on the remaining brackets. 9. Slide two sections of a Caddy Rail through the base of a T Bracket. Rotate the Caddy Rail Clips Figure 11 so the open end is facing downward.

  • Page 26: Solid Ceiling

    SOLID CEILING The Surveyor mounts in a Solid Ceiling cutout and is supported by the Trim Ring. There are four knockout holes on the Trim Ring which must be removed prior to installation. The installer must supply mounting screws and verify ceiling strength for this installation. Installation Into a Solid Ceiling Before starting, route all cabling from the control equipment to this location.

  • Page 27: Outdoor Pendant

    OUTDOOR PENDANT The Surveyor Outdoor Pendant version mounts in two configurations: Vicon mount or 1.5 inch Pipe mount. Both configurations use standard 1.5-inch NPT threaded pipe and can be attached to a wall or a ceiling. This mount is exactly an Indoor Pendant version with an exterior Sunshield and Lower Outdoor Dome for environmental protection.

  • Page 28: Installation Using A 1.5-Inch Pipe

    Installation Using a 1.5-inch Pipe This installation is similar to the Vicon mount. The pipe can be fastened to any surface or support providing sufficient strength and area for the Mini Dome. 1. Inspect the end of the Pipe and remove any burrs on the inside diameter.

  • Page 29: Wiring

    The types of wires that need to be installed are power, video, control, auxiliary outputs and alarm inputs. All wiring cables enter the Housing through the top hole via the Cable Access Cap, Vicon mount or 1.5-inch- Pipe, depending upon the mounting method used. Refer to the Technical Information section for all electrical requirements.

  • Page 30: Figure 20

    In addition, the relay can be used as a set of dry contacts for a Normally Open device input. NOTE: For more information on auxiliary outputs refer to Vicon Technical Bulletin TB5156, “Application of Open Collector Relay Outputs”.

  • Page 31: Installing The Cables

    1. Route all cables into the top of the Mini Dome through the electrical Conduit/Cable Access Cap, Vicon mount or 1.5-inch Pipe. Pull approximately 10 ft (3 m) of cable through the Housing to allow convenient wiring on a workbench.

  • Page 32: Table 4

    TERMINAL BLOCK/ PIN NUMBER CONNECTOR LABEL SIGNAL NAME POWER INPUT CONNECTOR (TB2) TB2-1 TB2-2 Neutral TB2-3 Ground ALARM INPUT CONNECTOR (TB4) TB4-10 Ground TB4-9 Ground TB4-8 ALM 8 Alarm 8 TB4-7 Alarm 7 ALM 7 TB4-6 Alarm 6 ALM 6 TB4-5 ALM 5 Alarm 5...

  • Page 33: Final Assembly

    Final Assembly Final assembly is the last step before power-up and test. Final assembly is comprised of installing the pre- assembled Drive Mechanism into the Housing, installing the Lower Dome(s) and attaching a Trim Ring. Final assembly varies in method, depending upon the Housing installation type used. This procedure is performed on the installed Housing with common hand tools.

  • Page 34: Installing The Domes

    Installing the Domes There are three possible domes to be installed, a Mask, a Lower Dome and a Lower Outdoor Dome. The following is brief description of each Dome. Refer to the Introduction Section of this manual for a detailed description.

  • Page 35: For Dropped Ceiling Installations

    For Dropped Ceiling Installations 3. Stabilize the Housing and position the Trim Ring over the Housing lower rim. Push up on the Trim Ring inner edge firmly and, using the other hand, push down on the Trim Ring outer edge. A single snapping sound will verify that the latch has been properly seated.
  • Page 36 NOTES 22 • Final Assembly X971 Rev 1098 Surveyor Mini Dome System...

  • Page 37: Disassembling The Mini Dome

    Disassembling the Mini Dome The Mini Dome can be easily disassembled by simply removing the domes and Drive Mechanism. The Housing and cabling remains intact during disassembly. It is not necessary to disable the 24 VAC power. Perform Step 1 for a particular installation type and continue with the remaining steps for all installation types. For Indoor Pendant and Dropped and Solid Ceiling Installations: Gently pull down the Lower Dome outside edge, with two hands, until all metal clips snap out of place.

  • Page 38: If It It Is Necessary To Remove The Trim Ring

    If It It Is Necessary to Remove the Trim Ring Insert a small flat blade screwdriver behind one of the four slots on the Trim Ring inner edge as shown in Figure 27. Gently pull down on the screwdriver while pulling down on the Trim Ring outer edge until it becomes unseated.

  • Page 39: Operation

    If the Surveyor fails to power-up correctly, a built-in diagnostic test can be run to assist in troubleshooting. When initial power-up has been completed and verified, Surveyor can be setup and operated in a normal fashion using a Vicon remote operator keypad, NOVA (VPS) unit or through a PC running Protech software.

  • Page 40: Verifying Proper Operation

    Mini Dome. Power-on the control device and verify that it boots up. Setup the control device for operation with the Mini Dome in accordance with its Installation and Operation Manual. For a Vicon model V1300X-RVC or V1300X-DVC use the following procedure to access Surveyor programming: 1.

  • Page 41: Running The Diagnostic Test

    Step Function Dwell (sec) Step Function Dwell (sec) Running the Diagnostic Test Pan Right Aux 1 ON Pan Left Aux 2 ON Pan Off Aux 3 ON The diagnostic test was designed to cycle the Tilt Up Aux 4 ON Tilt Down Aux 5 ON Mini Dome through all its functions.
  • Page 42 NOTES 28 • Operation X971 Rev 1098 Surveyor Mini Dome System...

  • Page 43: Maintenance

    Maintenance The Surveyor Mini Dome requires no scheduled maintenance, however the Domes require occasional cleaning . CARE AND CLEANING OF METALLIZED DOMES 1. Always handle the Dome by the flange and avoid touching the inside surface as acid in a fingerprint can etch the coating.
  • Page 44 NOTES 30 • Maintenance X971 Rev 1098 Surveyor Mini Dome System...

  • Page 45: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 46 NOTES 32 • Shipping Instructions X971 Rev 1098 Surveyor Mini Dome System...

  • Page 47: Reference

    CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms.

  • Page 48: Twisted-Pair Cable

    Twisted-Pair Cable CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances.

  • Page 49: Technical Information

    Technical Information ELECTRICAL Drive Type: V7UVS-RPX2. See Table 9. Housing Types: Units available for indoor or outdoor operation. See Table 9. Camera Types: Units available in monochrome (EIA, CCIR) or color (NTSC, PAL). 24 VAC nominal ±10% maximum. Class 2 indoor/dry or Input Voltage: Class 3 outdoor/wet.
  • Page 50 European Community (CE) Standards: EN 50081-1 generic emissions. EN-50082-1 generic immunity. Safety Standard: UL1409. CONTROLS & CONNECTORS Connectors: Video: BNC-F. Power: Screw terminal block, 3 position. Control Input/Output: Removable screw terminal block, 12 position. Relay Output: Removable screw terminal block, 12 position. Alarm Input: Removable screw terminal block, 12 position.
  • Page 51 Vicon’s NOVA, V1902VCT, V1422 control transmitters, desktop keypad V1300X-DVC or rack-mounted keypad V1300X-RVC. Control Software: Vicon’s ProTech software (or compatible) run on a standard PC type computer with an RS-422 half duplex protocol interface. Control Format: RS-422 data, simplex or half duplex operation at 4800 or 9600 baud;...

  • Page 52: Surveyor Components

    Weight: 12.0 lb (5.4 kg), basic unit. Construction: Plastic, aluminum and steel. Finish: Matte light beige Housing. ENVIRONMENTAL Operating Temperature Range: Indoor: 35 to 120°F (2 to 49°C). Outdoor: -30 to 130°F (-35 to 55°C). Operating Humidity Range: Indoor: up to 90% relative, noncondensing. Outdoor: 100% relative.
  • Page 53 NOTES Technical Information • 39 X971 Rev 1098 Surveyor Mini Dome System...
