Identifying the Parts of the Allegro 20

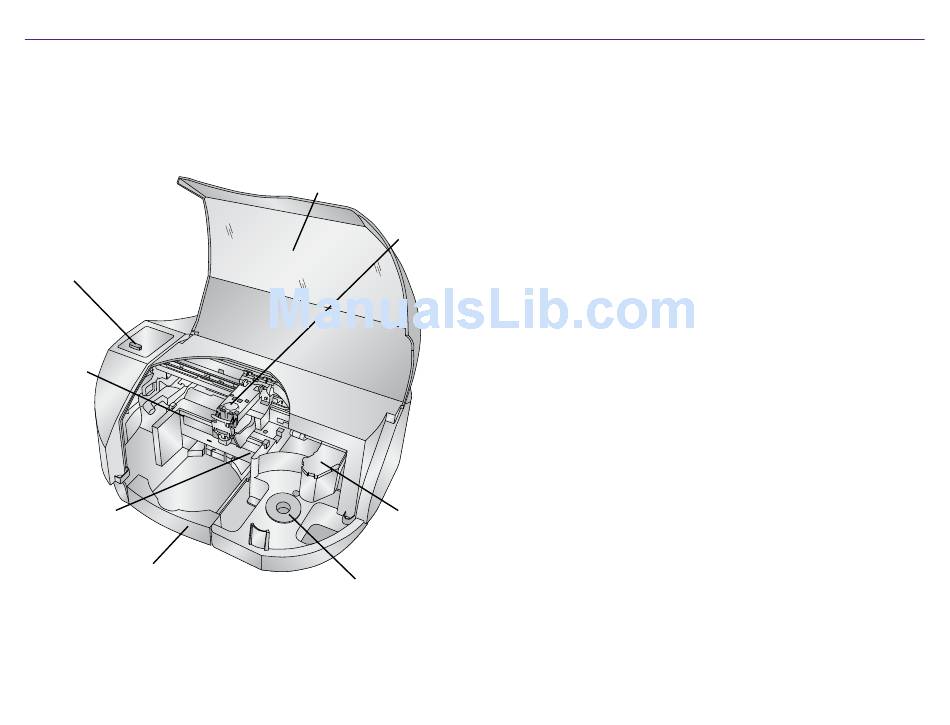

This illustration shows the Rimage Allegro 20 system and its components.

Front Panel and Top

Power/Ink
Power/Ink
Button
Button
CD/DVD CD/DVD
Recorder Recorder
Drive
Drive
Recorder
Recorder Tray
Tray Button
Button
Extendable
Extendable
Output Bin
Output Bin
2003750_B
Cover
Cover
Ink
Ink Cartridge
Cartridge
Carrier
Carrier
Robotic Arm
Robotic Arm
Input Bin
Input Bin
For more information visit rimage.com/support
The Robotic Arm moves discs from the Input Bin, to the CD/DVD Recorder,
to the Printer, and finally to the Output Bin.
The CD/DVD Recorder is automatically loaded and unloaded by the
system's Robotic Arm.
The Recorder Tray Button manually opens or closes the Recorder Tray. In
normal operation, the in/out movement of the Recorder Tray is controlled
automatically and this button is not used.
The Cover is a durable plastic cover that will protect the system from dust
and interference. With the Cover closed, the Power/Ink Button turns the
system's power OFF if pressed and held for five seconds. Press it quickly
to turn power back on. When already powered on, quickly pressing the
Power/Ink Button will open and close the Printer Tray.
When the front Cover is open, the Power/Ink Button is used to position the
Ink Cartridge Carrier for easy ink cartridge replacement. The Ink Cartridge
Carrier holds the All-in-One Ink Cartridge.
The Input/Output Bins are under the Cover of the system. The right-side bin
is the Input Bin for blank media. The bin will hold up to 20 discs.
The Extendable Output Bin is located in front of the CD/DVD Recorder.
You can access the Output Bin by opening the Cover or by pulling the bin
out to extend it. The Output Bin can be extended at any time while the
system is operating. It is recommended that you do not extend the Output
Bin for multiple disc projects. Extend the Output Bin only for single disc
dispensing.
