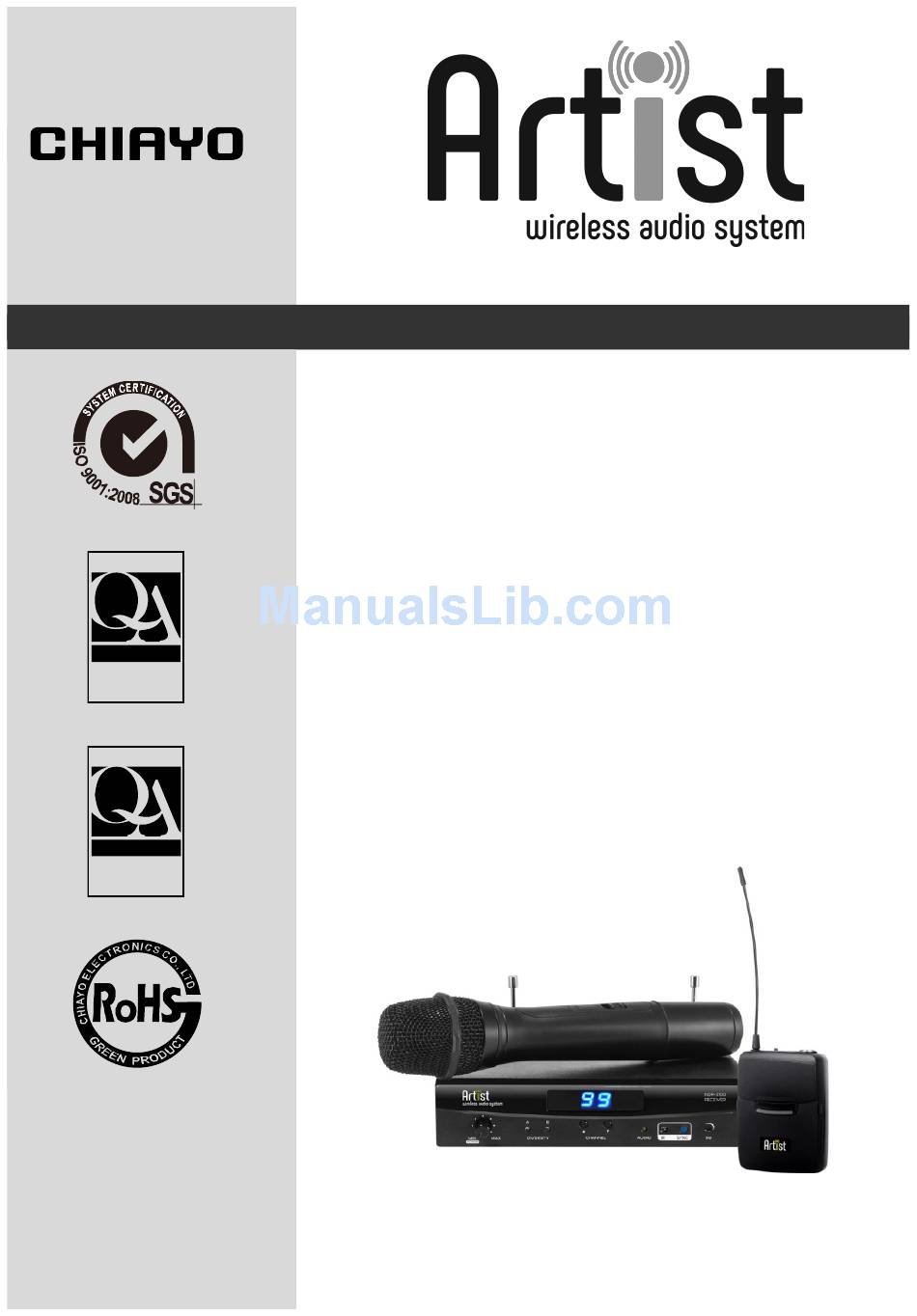

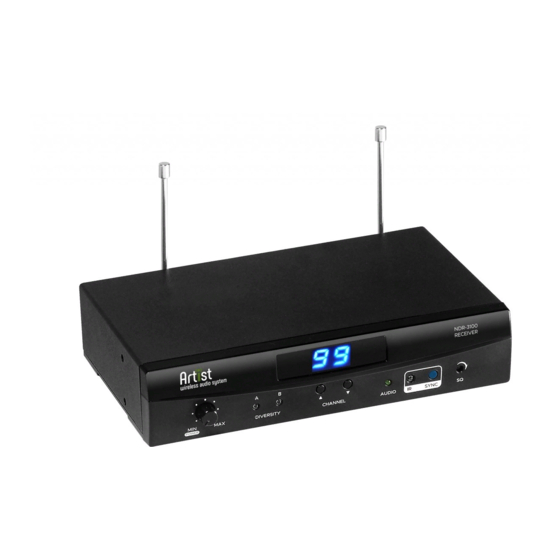

- Page 1 UHF Auto Synchronizing Diversity Wireless Microphone System Operation manual ISO 9001 REGISTERED INTERNATIONAL 14001 ISO 14001 REGISTERED INTERNATIONAL OHSAS 18001 OHSAS 18001 GREEN PRODUCT...
- Page 2 Our products are designed to last and for user friendly operation. Each system consists of: 1. 1 x Artist NB-3100 receiver 2. 1 x Artist handheld or 1 x Artist belt-pack transmitter 3. 1 x power supply 4. 1 x operation manual For more details, please take a few moments to read this operating manual to have a thorough understanding of the functions and operation of both transmitter and receiver.
- Page 3 Scanning & Changing CHANNEL First turn on main power switch, the two 7-segment display LED ⑧ will show last stored frequency. For example, if channel 88 is 630.325MHz, the LED will first display in sequence and return to . When the transmitter is turned on and the receiver channel corresponds with the transmitter, either A or B diversity indicator ②...
- Page 4 Handheld transmitter NH-3100 Parts and functions 1. Cartridge 2. Battery weak/power LED 3. Power switch 4. Battery cover 5. Bottom cap 6. IR sensor area Battery installation & indicator This transmitter requires 2 x AA batteries to operate. To install, remove the battery cover ④ and slide the batteries into the battery compartment & replace the battery cover.
- Page 5 Body-pack transmitter NB-3100 Parts and functions 1. Antenna 2. Cover release button 3. Gain control (GT, high impedance) 4. Gain control (MT, low impedance) 5. Battery compartment 6. Power switch 7. Power/battery weak indicator 8. IR sensor area 9. (Lavalier microphone) Mini XLR connector 10.
- Page 6 Rack mounting The receiver can be cabinet-mounted by either one or two units. If only one receiver is to be mounted, an optional kit is available and it's installed as shown in Fig 1. If two receivers are to be mounted, they can be assembled by another kit and installed as shown in Fig 2. (Fig 1) (Fig 2)
- Page 7 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611 12I2322...
