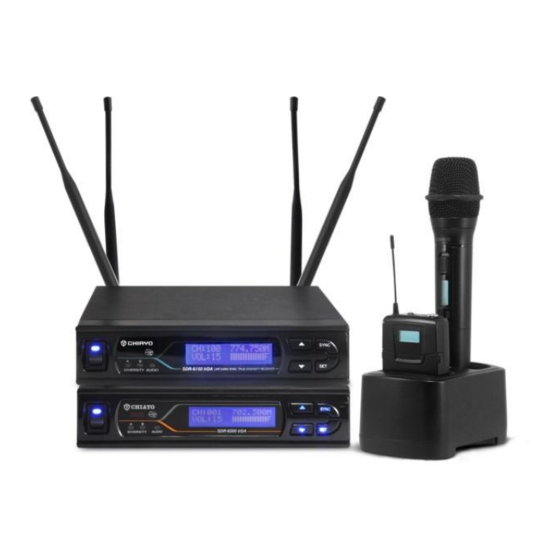

- Page 1 SDR-6200 IrDA SDR-6100 IrDA UHF 2-Way Synchronizing True Diversity / Diversity Wireless Microphone System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 Thank you for choosing this wireless microphone system! Our products are designed to last and for user friendly operation. Each system consists of: 1. a receiver 2. a handheld or belt-pack transmitter 3. a pair of antennas 4. a switching adaptor 5.
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Changing CHANNEL / FREQUENCY First, press "SET" till the display shows Then press UP or DOWN to select a new channel. As the channel changes, the frequency changes accordingly, too. After the setting is made, the data will be automatically saved. CHANNEL scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference.
- Page 4 Adjusting VOLUME level The setting can be made right on the main menu Press UP or DOWN to choose a new level. After the setting is made, the data will be automatically saved. Adjusting SQUELCH level First, press "SET" till the display shows Then press UP or DOWN to choose a new level.
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 UHF handheld transmitters（SQ-6100 IrDA(R)｜SQ-6100 IrDA｜SQ-2100 IrDA｜SQ-1100 IrDA） →SQ-6100 IrDA(R)｜SQ-6100 IrDA →SQ-2100 IrDA →SQ-1100 IrDA Parts and functions SQ-6100 IrDA(R) SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area...
- Page 6 Channel synchronizing of the receiver and transmitter 1. To achieve a trouble-free synchronization, please limit the distance between the receiver and transmitter to within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the transmitter. The transmitter will transmit synchronizing signal to the receiver and change its channel.
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 （SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA｜SM-1100 IrDA） UHF belt-pack transmitters 11 12 SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-2100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT)
- Page 8 Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the transmitter is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
- Page 9 ISO 9001｜ISO 14001｜OHSAS 18001...
- Page 11 ISO 9001｜ISO 14001｜OHSAS 18001 -10-...
- Page 12 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
