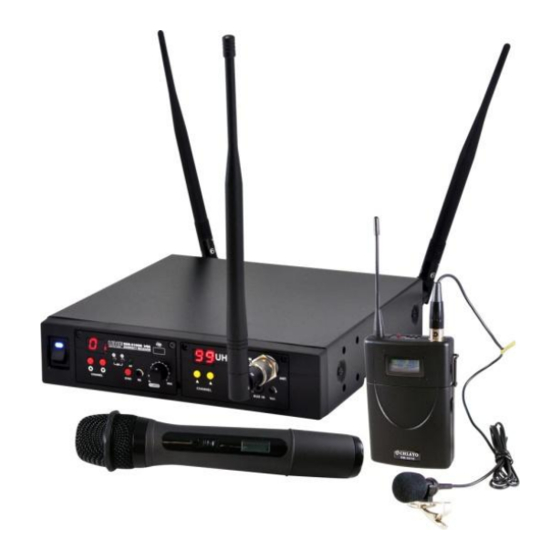

- Page 1 QR-2000N UHF 100/16-Channel Wireless Microphone System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 Thank you purchasing CHIAYO’s professional modular wireless system. Please read this manual thoroughly to be familiarized with the function of each part before use. Parts and functions of QR-2000N Front 1. Power switch. 2. Channel A: RECEIVER module, also can be MP3 (RECORDER) PLAYER, BLUETOOTH RECEIVER, or TRANSMITTER module.
- Page 3 1m away from the receiver. Mounting QR-2000N has a half-19"-casing design. It can be cabinet-mounted with either 1 or 2 units. Individual kits for mounting 1 or 2 QR-2000N are available and please refer to below assembly illustration.
- Page 4 SDR-5200M IrDA/SDR-5100M IrDA/SDR-5116M receiver modules 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area (SDR-5200M IrDA/SDR-5100M IrDA) 5. Channel Selector 6. IRDA synchronizing button (SDR-5200M IrDA/SDR-5100M IrDA) 7. Squelch control 8. Power switch/volume control First turn on the Power of the main unit.
- Page 5 ISO 9001 / ISO 14001 / OHSAS 18001 RP-5016M/RP-5100M transmitter module 1. Channel indicator 2. Antenna socket (TNC type) 3. Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please select a non-interfering frequency channel to those used in the receiver modules. 4.
- Page 6 Operating functions on the panel and the remote Operating function On the panel On the remote Press II Play/pause Press ● to record and ■ to stop. Press REC to record and ■ to stop. Record Press I Skip forward PressI Press and hold I Press and hold I...
- Page 7 ISO 9001 / ISO 14001 / OHSAS 18001 BT-500m Bluetooth receiver module 1. Power/volume control 2. LOCK LED 3. SCAN LED 4. PAIRING button Matching instruction 1. Turn on BT-500m and both SCAN and LOCK LEDs will flash alternatively. 2. Activate Bluetooth on your device and search new external Bluetooth devices. 3.
- Page 8 UHF handheld microphones（SQ-6100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA） SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Parts and functions SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area Charging port Battery installation &...
- Page 9 ISO 9001 / ISO 14001 / OHSAS 18001 Channel synchronizing of the receiver and microphone 1. Limit the distance between the receiver and transmitter within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the microphone. The microphone will transmit synchronizing signal to the receiver and change its channel.
- Page 10 UHF belt-pack transmitters（SM-7100 IrDA/SM-6100 IrDA/SM-1100 IrDA） 11 12 SM-7100 IrDA/SM-6100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT) Low-impedance gain control (MT) Battery compartment Audio mute switch Battery power LED...
- Page 11 ISO 9001 / ISO 14001 / OHSAS 18001 Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the microphone is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
- Page 12 UHF handheld microphones（SQ-1016/SQ-1016V/SQ-5016） SQ-1016/1016V (UHF 16-freq) SQ-5016 (UHF LCD 16-freq) Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 Cartridge Battery weak/power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button Charging port Volume control Battery installation &...
- Page 13 ISO 9001 / ISO 14001 / OHSAS 18001 Other settings (SQ-5016) 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number.
- Page 14 UHF belt-pack transmitters（SM-1016/SM-5016） Parts and functions Transmitter parts and functions SM-1016 SM-5016 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button Down button Channel switch Gain control (GT, high impedance) Gain control (MT, low impedance)
- Page 15 ISO 9001 / ISO 14001 / OHSAS 18001 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
- Page 16 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611...
