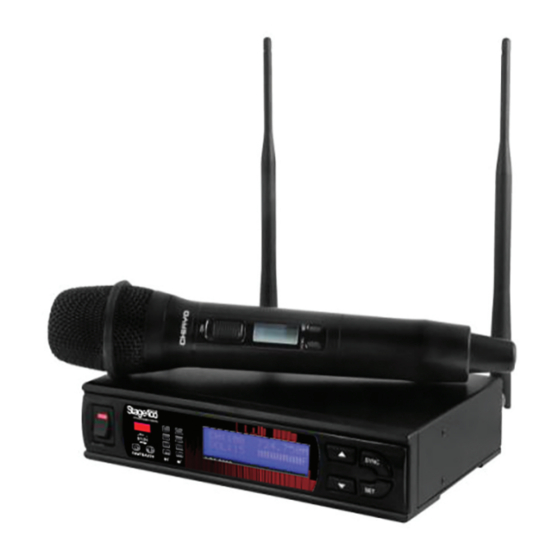

- Page 1 UHF 2-Way Synchronising True Diversity Wireless Microphone System Operation Manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 Thank you for choosing this wireless microphone system! Our products are designed to last and for user-friendly operation. Each system consists of: 1. A receiver 2. A handheld or beltpack transmitter 3. A pair of antennas 4. A switching adaptor 5.
- Page 3 First, press "SET" till the display shows Then press UP or DOWN to select a new channel. As the channel changes, the frequency changes accordingly, too. After the setting is made, the data will be automatically saved. CHANNEL scanning For an interference-free operation, a cleaner channel might be necessary if the current one receives too much interference.
- Page 4 Receiver installation For best operation, the receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimise reflections. The transmitter should also be at least 1m away from a wall or metal surface to minimise reflections. The transmitter should also be at least 1m away from the receiver.
- Page 5 UHF handheld microphone（SQ-9000 IrDA） Parts and functions 1. Cartridge 2. Battery power LED 3. Power switch 4. LCD 5. Menu button 6. Setting button 7. IrDA synchronising button 8. Battery compartment 9. Color cap 10. IrDA sensor area Battery installation & indicator This microphone requires 2 x AA batteries to operate.
- Page 6 Other settings 1. Channel setting Use MENU button to go to the CHANNEL page Pressing SET button will increase the channel number. The corresponding frequency will change accordingly. 3 seconds after selecting a channel, it will be automatically saved. 2. Battery type setting Use MENU button to go to the BATTERY TYPE page Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery).
- Page 7 UHF belt-pack transmitters（SM-8000 IrDA） Parts and functions 1. Antenna 2. Battery power LED 3. Audio mute switch 4. Mini XLR connector 5. IrDA sensor area 6. LCD 7. Charging port 8. Cover release button 9. Power button 10. High-impedance gain control (GT) 11.
- Page 8 Wrong battery selection will result in battery sensing electronics to display wrong and misleading status information. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242...
