Chiayo SMART 300 Operation Manual

Personal wireless pa system
Hide thumbs Also See for SMART 300:
Table of Contents

Advertisement

Quick Links

Download this manual
SMART 300
Operation manual
Personal Wireless PA System
CHIAYO ELECTRONICS CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Chiayo SMART 300

Summary of Contents for Chiayo SMART 300

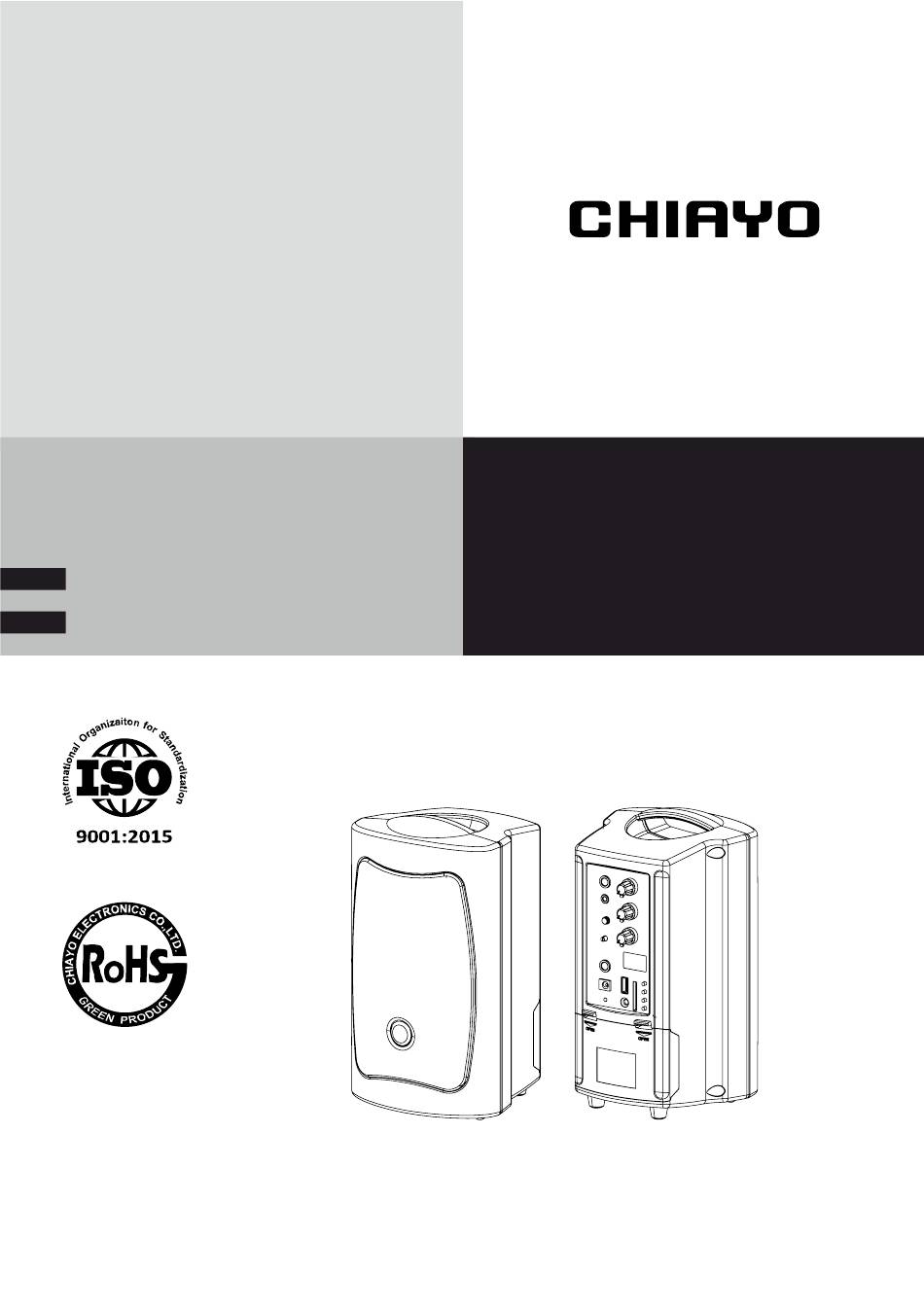

  • Page 1 SMART 300 Operation manual Personal Wireless PA System CHIAYO ELECTRONICS CO., LTD.
  • Page 2  Use only manufacturer authorized or recommended accessories.  Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful when using a cart to avoid injury from tip-over.  Unplug the product during an electrical strom or when unused for long periods of time.
  • Page 3 Operation manual Warning Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions  Be sure to read the instructions in this section carefully before use. ...

  • Page 4: Table Of Contents

    SMART 300 Personal Wireless PA System INDEX 1. Instruction ..........................4 1-1. In the box ..........................4 1-2. Optional related products ....................4 1-3. Parts and functions ......................5 1-4. Charging the battery ......................5 1-5. Connection with external audio sources ................6 2. Settings and Operations ......................7 2-1.

  • Page 5: Instruction

    BATTERY / CHARGING INDICATOR OPEN OPEN Battery compartment 1-1. In the box SMART 300 amplifier 0-1 handheld / beltpack transmitter Switching power supply (optional) (plug varies from country to country) operation manual 1-2. Optional related products ▍Transmitters (For more information about transmitter, please refer to its user manual)

  • Page 6: Parts And Functions

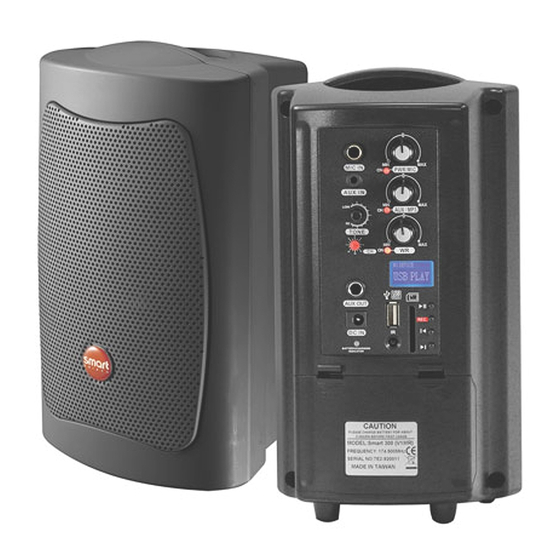

    SMART 300 Personal Wireless PA System 1-3. Parts and functions Master power / MIC volume control MICROPHONE input (6.3mm) MIC IN PWR/MIC Master power indicator AUX IN socket (3.5mm) AUX / MP3 player & recorder AUX IN volume control (optional) AUX / MP3 player &...

  • Page 7: Connection With External Audio Sources

    Instruction 1-5. Connection with external audio sources WIRED MIC MIC IN PWR/MIC AUX IN TABLET / PHONE AUX/USB/SD TONE USB disk AMPLIFIER SD card AUX OUT Sound control, e.g., volume and DC IN equalizer, of audio output from SMART BATTERY / CHARGING 300 is only operated INDICATOR on this external...

  • Page 8: Settings And Operations

    SMART 300 Personal Wireless PA System 2. Settings and Operations 2-1. Using the wired microphone (MIC IN) Plug a wired microphone with a 6.3mm plug to MIC IN. MIC IN PWR/MIC AUX IN AUX/USB/SD TONE Turn ON master POWER and then adjust MIC volume control to desired level.

  • Page 9: Using The Wireless Receiver

    Settings and Operations 2-2. Using the wireless receiver Turn ON master POWER and WR in order, the receiver’s power indicator will glow MIC IN PWR/MIC RED. After turning ON the transmitter, this LED will turn GREEN. AUX IN AUX/USB/SD Power ON  RED TONE Signal received ...

  • Page 10: Music Audio Input (Aux In)- Smart Phone / Tablet / Mp3 Player

    SMART 300 Personal Wireless PA System 2-3. Music audio input (AUX IN)- Smart phone / tablet / MP3 player Connect your device to the 3.5mm jack of AUX IN with a 3.5mm 3-pole stereo audio cable. MIC IN PWR/MIC AUX IN...

  • Page 11: Using The Mp3 Player & Recorder

    Settings and Operations 2-4. Using the MP3 player & recorder 2-4-1. Parts and functions LCD display Remote control SD card input play/pause button USB 2.0 input record button Previous / fast reverse button IR sensor area Next / fast forward button 2-4-2.
  • Page 12 SMART 300 Personal Wireless PA System Turn ON master POWER and AUX/USB/SD in order. MIC IN PWR/MIC AUX IN MIC IN PWR/MIC AUX/USB/SD TONE AUX IN Plug the USB or SD and the music will play automatically. To dispatch the USB or SD, AUX/USB/SD please turn off the player first.

  • Page 13: Tone For Wired And Wireless Microphone And Music

    Settings and Operations 2-5. TONE for WIRED and WIRELESS MICROPHONE and MUSIC TONE adjustment is actually used to increase or reduce the high/low frequency component of the speaker's restored sound. It is so-called raising or attenuating HIGH (HI) / BASS (LOW) via frequency-specific volume knob to improve human voices or make musical instruments’...

  • Page 14: Faq & Useful Operation Tips

    (microphone, MP3 ... etc.). Is it possible to play music storing on external devices via wireless amplifier? Yes. SMART 300 wireless amplifier has an auxiliary audio input (AUX IN) for connection with external devices such as notebook, mobile phones or tablets. The built-in MP3 recorder has remote control and offers more versatile functionality.
  • Page 15 The battery life is limited and affected by the environment, charging method and battery efficiency. Is it possible that SMART 300 can work as amplifier only? Can I use only one or more microphones? How many wireless microphones can be used at most? SMART 300 can work as amplifier only.

  • Page 16: Maintenance-Free Lead-Acid And Lithium Batteries

    2. Please use the power supply specified by CHIAYO for charging. 3. The CHIAYO amplifier has a protection circuit to prevent overcharging. To ensure safety, the charging time should not exceed 12 hours. Please disconnect the power supply when fully charged.
