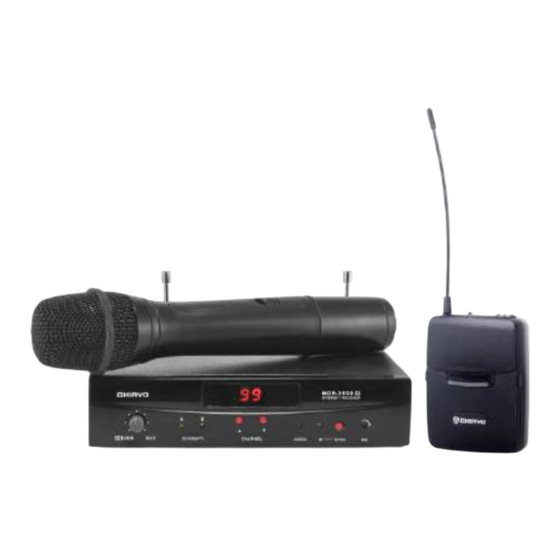

- Page 1 NDR-3100 UHF Auto Synchronizing Diversity Wireless Microphone System Operation manual ISO 9001 REGISTERED 14001 ISO 14001 REGISTERED OHSAS 18001 OHSAS 18001 GREEN PRODUCT...
- Page 2 5. an operation manual For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver. Parts and functions of NDR-3100 receiver Front panel 4 5 6 1.
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Scanning & Changing CHANNEL For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. Before scanning, the transmitter must be switched off. Press ▲or▼ and the receiver will scan and stop at the next clean channel. CHANNEL SYNCHRONIZING of the receiver and transmitter 1.
- Page 4 Rack mounting The receiver can be cabinet-mounted by either one or two units. If only one receiver is to be mounted, an optional kit is available and it's installed as shown in Fig 1. If two receivers are to be mounted, they can be assembled by another kit and installed as shown in Fig 2. (Fig 1) (Fig 2)
- Page 5 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
