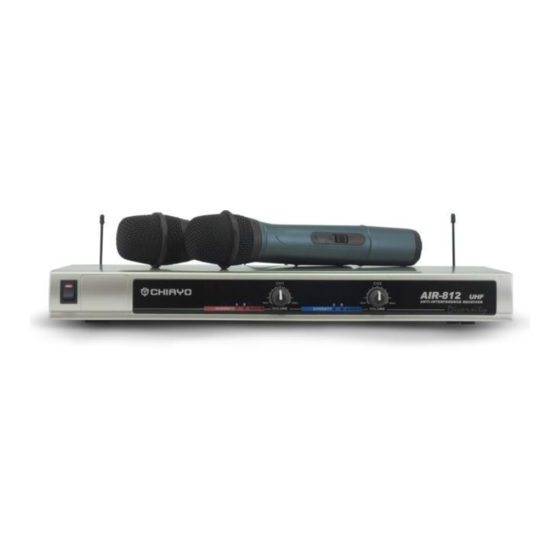

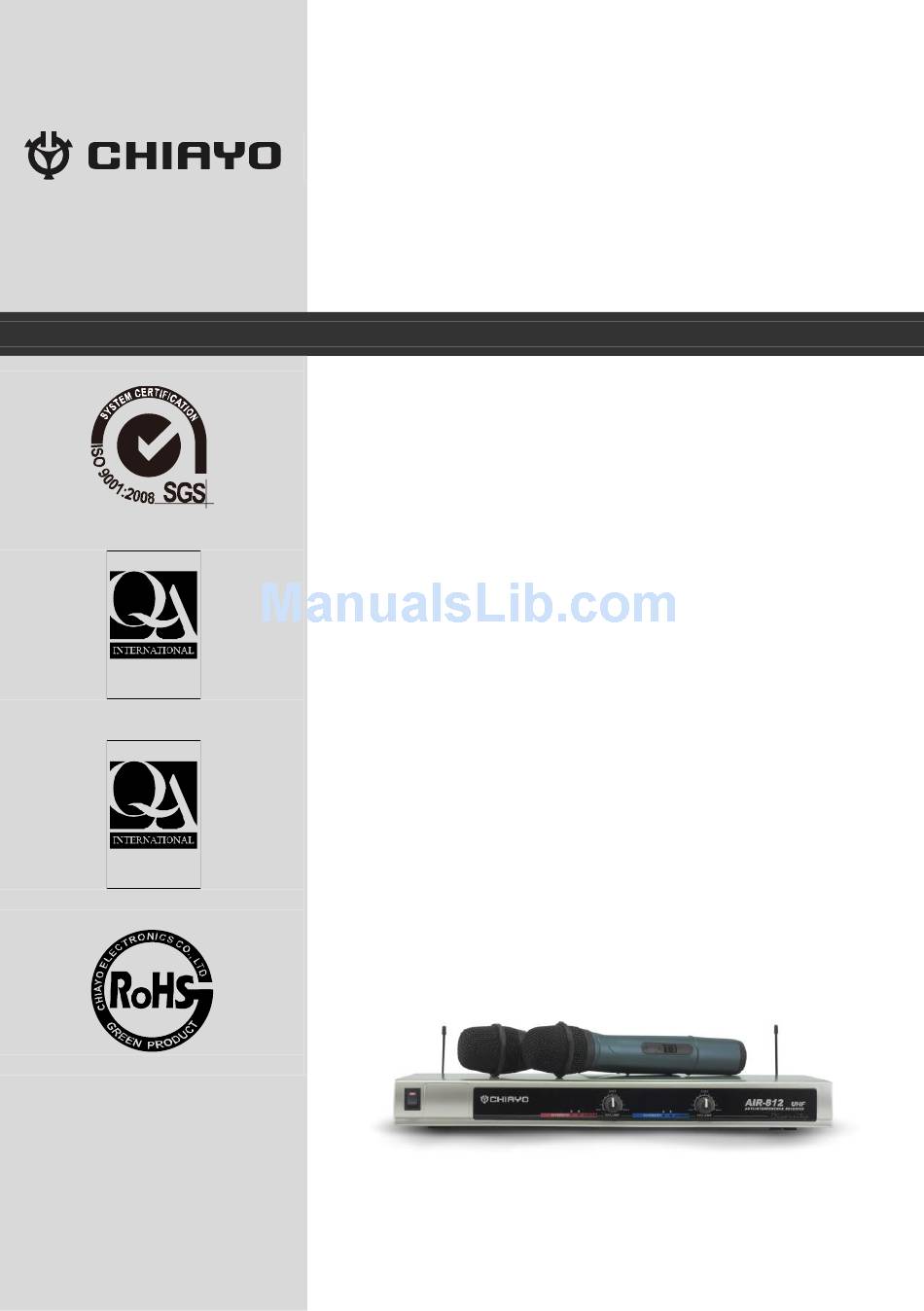

- Page 1 AIR-812 AIR-212 UHF / VHF Diversity Wireless Microphone System Operation Manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...
- Page 2 For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver. Parts and functions of receivers Front panel →AIR-812 →AIR-212 Rear panel 10 11 →AIR-812...
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Adjusting SQUELCH level The squelch control is on the back of the receiver. When strong interference happens to the operation, you can use a small screw driver to increase the squelch level by turning the switcher clockwise. If the interference is too strong even the level is already set to maximum, the currently in-use channel is not applicable in this location and a change to channel is recommended.
- Page 4 Handheld transmitters（Q-818｜Q-815｜Q-215） Parts and functions 1. Cartridge 2. Battery power LED 3. Power switch 4. Battery compartment 5. Color cap Battery installation & indicator This transmitter requires 2 x AA batteries to operate. To install, remove the battery cover and slide the batteries into the battery compartment & replace the battery cover.
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 Belt-pack transmitters（M-818｜M-815｜M-215） Parts and functions 1. Antenna（M-818｜M-815） 2. Battery power LED 3. Power switch 4. Mini XLR connector 5. Cover release button 6. High-impedance gain control (GT) 7. Low-impedance gain control (MT) 8. Battery compartment 9. Charging contacts Battery installation &...
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001...
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
